Driveshaft - Rear, One-Piece, Four Wheel Drive (4WD): Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

CAUTION: Align the index marks.

Fig 1: Positioning Driveshaft Yoke On Transfer Case Flange

Courtesy of FORD MOTOR CO.

Position the driveshaft yoke on the transfer case flange.
Vehicles with split pin yoke
Remove the tape from the bearing cups.

CAUTION: Align the index marks.

Fig 2: Positioning Bearing Cups In Rear Axle Pinion Flange

Courtesy of FORD MOTOR CO.

Position the bearing cups in the rear axle pinion flange.
Vehicles with circular flange

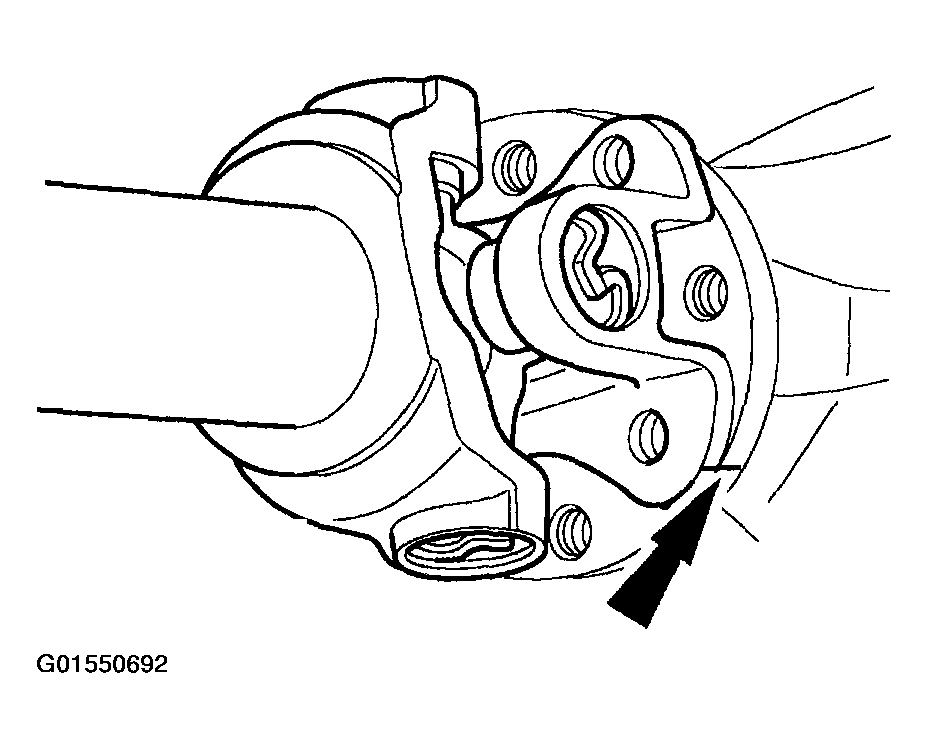

CAUTION: Align the index marks.

Fig 3: Positioning Driveshaft Yoke On Rear Axle Pinion Flange

Courtesy of FORD MOTOR CO.

Position the driveshaft yoke on the rear axle pinion flange.
All vehicles

CAUTION: Install new bolts.

NOTE: Bolt direction is vehicle application dependent.

Fig 4: Installing Bolts

Courtesy of FORD MOTOR CO.

Loosely install the 4 new driveshaft-to-transfer case bolts.
Vehicles with split pin yoke

CAUTION: Install new bolts and new retainers.

Install the 2 new retainers and 4 new rear driveshaft-to-axle bolts.
- Tighten to 35 Nm (26 lb-ft).

  Fig 5: Locating Rear Driveshaft-To-Axle Bolts
  Courtesy of FORD MOTOR CO.
Vehicles with circular flange

CAUTION: Install new bolts.

CAUTION: The driveshaft yoke fits tightly on the rear axle pinion flange pilot. To make sure that the yoke seats squarely on the flange, tighten the bolts evenly in a cross pattern as shown.

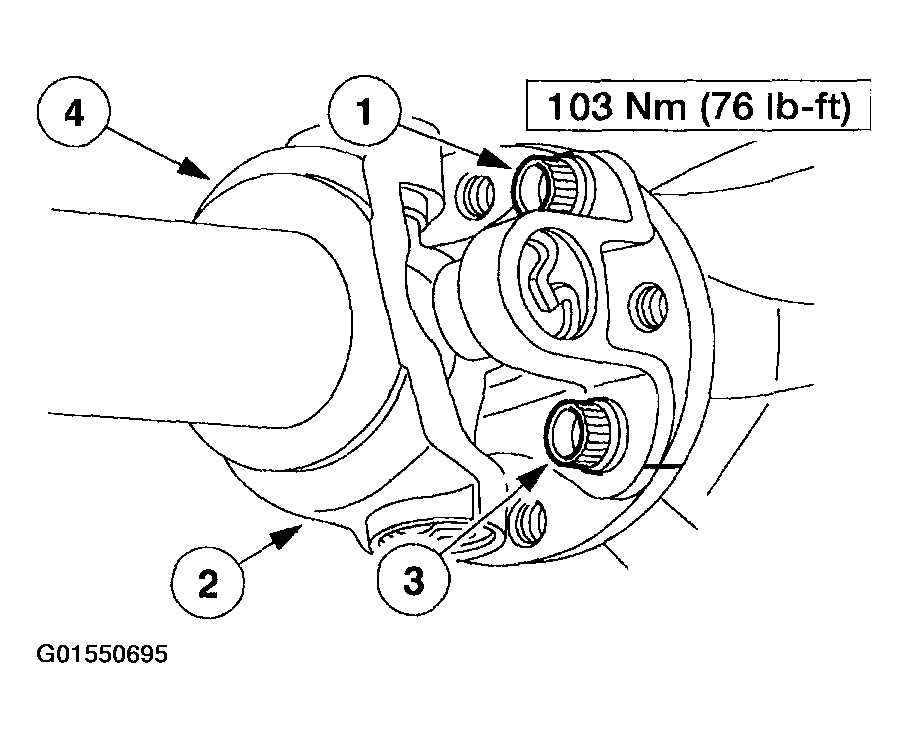

Fig 6: Installing Four Bolts

Courtesy of FORD MOTOR CO.

Install the 4 new driveshaft-to-axle bolts.
- Tighten to 103 Nm (76 lb-ft).

All vehicles

Tighten the 4 driveshaft-to-transfer case bolts.
- Tighten to 103 Nm (76 lb-ft).

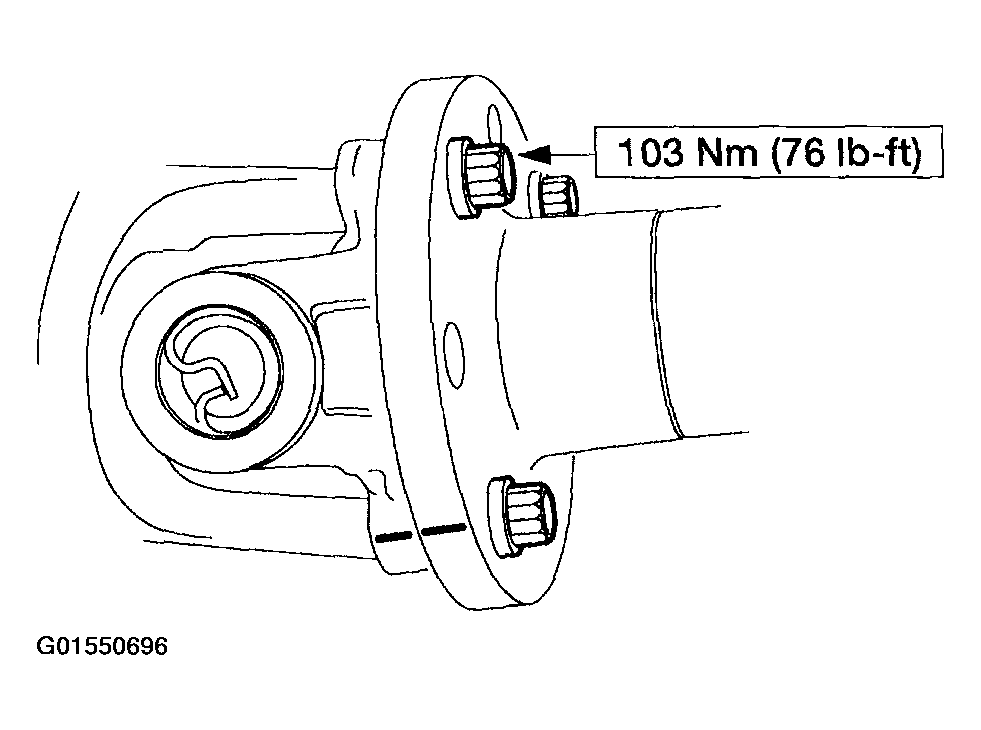

  Fig 7: Tightening Four Bolts
  Courtesy of FORD MOTOR CO.
