Driveshaft - Front: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. For additional information, refer to JACKING & LIFTING -- EXCURSION & F250-F550 SUPER DUTY .
Remove the 4 bolts and transfer case skid plate, if equipped.

Fig 1: Removing Transfer Case Skid Plate
Courtesy of FORD MOTOR CO.
Index-mark the front driveshaft to the front axle flange and at the transfer case flange.

Fig 2: Identifying Index-Mark Front Driveshaft To Front Axle Flange Location
Courtesy of FORD MOTOR CO.

Fig 3: Identifying Index-Mark Front Driveshaft To Transfer Case Flange Location
Courtesy of FORD MOTOR CO.
Remove and discard the fasteners.
1. Remove and discard the bolts.
2. Remove and discard the U-joint retainers.

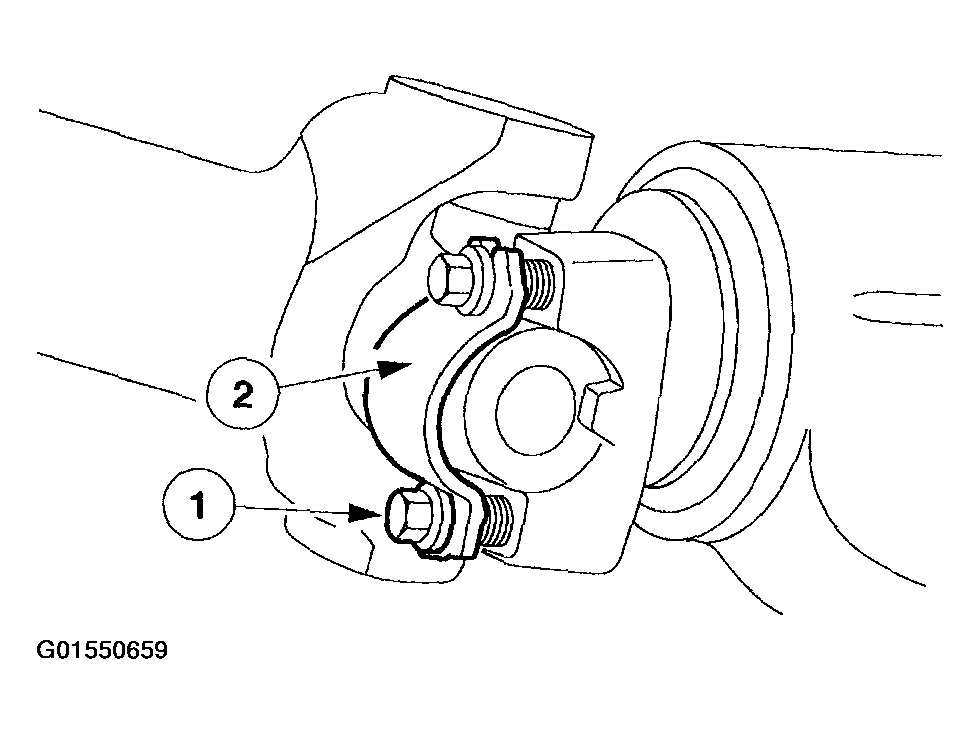

  Fig 4: Removing Bolt And U-Joint Retainers
  Courtesy of FORD MOTOR CO.
Remove and discard the four bolts.

Fig 5: Removing Four Bolts
Courtesy of FORD MOTOR CO.

NOTE: Wrap electrical tape around the bearing cups to prevent them from falling off the U-joint spider.

Remove the front driveshaft.
- Compress and separate the front driveshaft from the front axle, then separate the driveshaft from the transfer case.

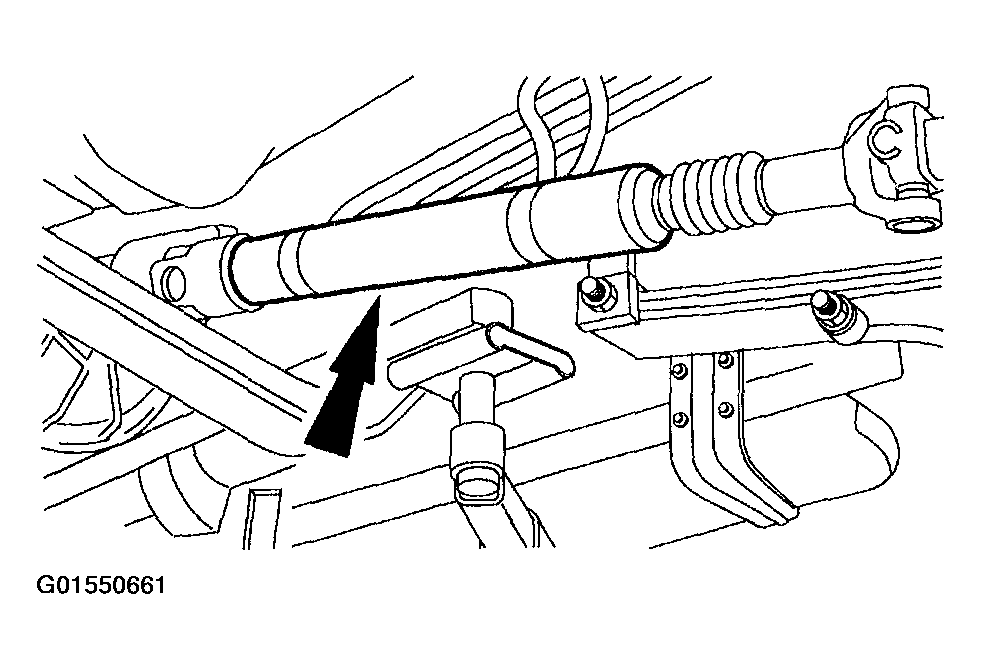

  Fig 6: Removing Front Driveshaft
  Courtesy of FORD MOTOR CO.
