Driveshaft - Front: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Install the front driveshaft with the index marks aligned.

NOTE: An extension must be used to tighten the driveshaft to transfer case bolts. Extensions change the calibration of the torque wrench. Use the torque wrench manual to calculate the correct settings

NOTE: To install, reverse the removal procedure.

Fig 1: Installing Front Driveshaft

Courtesy of FORD MOTOR CO.

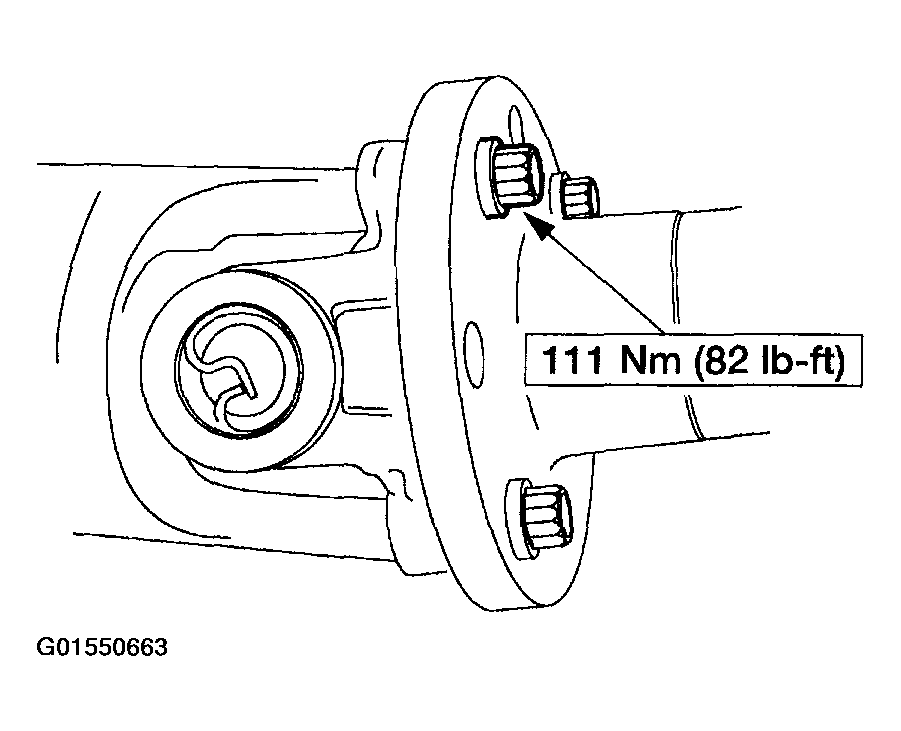

Fig 2: Installing Four Bolts

Courtesy of FORD MOTOR CO.

Fig 3: Installing Bolt And U-Joint Retainers

Courtesy of FORD MOTOR CO.

Install new bolts and retainers.
