Driveshaft Universal Joint - Double Cardan: Assembly

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

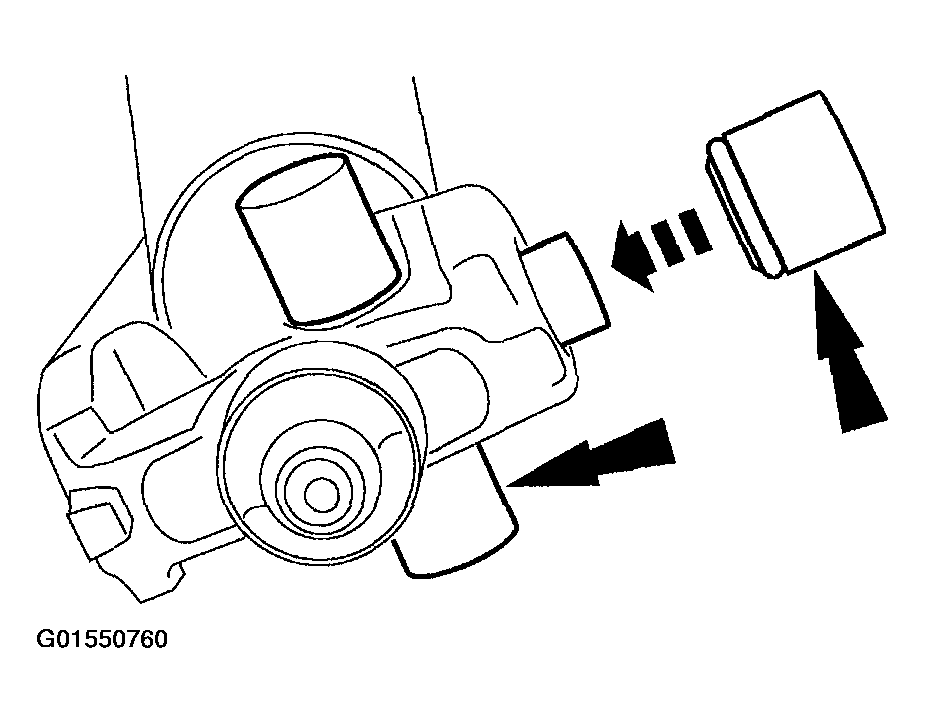

  1. Position the spider in the driveshaft end yoke, and position the bearing cup on the spider trunion.
    Fig 1: Positioning Bearing Cup On Spider Trunion
    G01550760Courtesy of FORD MOTOR CO.
  2. Using the special tool, press the bearing cup far enough into the driveshaft end yoke to place the opposite bearing cup on the spider trunion.

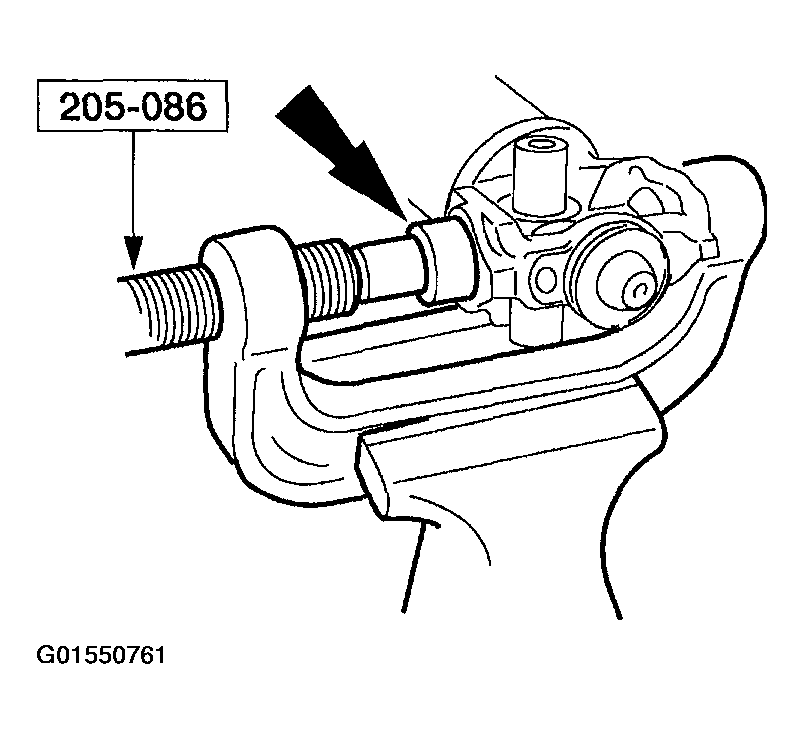

    Fig 2: Pressing Bearing Cup Far Enough Into Driveshaft End Yoke To Place Opposite Bearing Cup On Spider Trunion Using Special Tool
    G01550761Courtesy of FORD MOTOR CO.
  3. Position the opposite bearing cup on the spider trunion.
    Fig 3: Positioning Opposite Bearing Cup On Spider Trunion
    G01550762Courtesy of FORD MOTOR CO.
  4. Using the special tool, press the bearing cup to just below the snap ring groove.
    Fig 4: Pressing Bearing Cup To Just Below Snap Ring Groove Using Special Tool
    G01550763Courtesy of FORD MOTOR CO.
  5. Install the new snap ring.
  6. Using the special tool, press the opposite bearing cup to just below the snap ring groove.

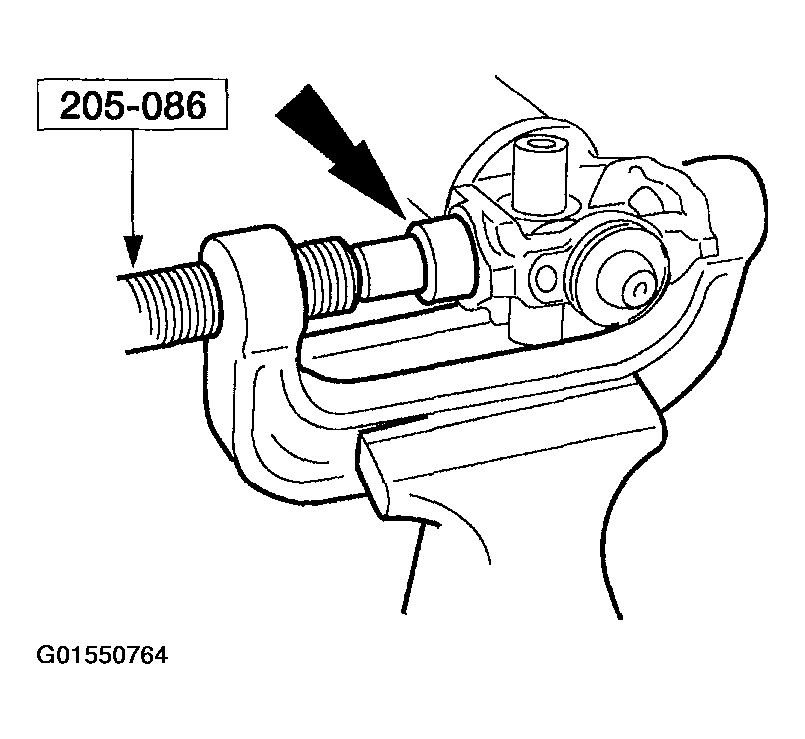

    Fig 5: Pressing Opposite Bearing Cup To Just Below Snap Ring Groove Using Special Tool
    G01550764Courtesy of FORD MOTOR CO.
  7. Install the new snap ring.
    8. NOTE: Align the index marks made during disassembly.
  8. Position the driveshaft center yoke on the spider.
  9. Using the special tool, press the bearing cups into position.
    • Install the snap rings.

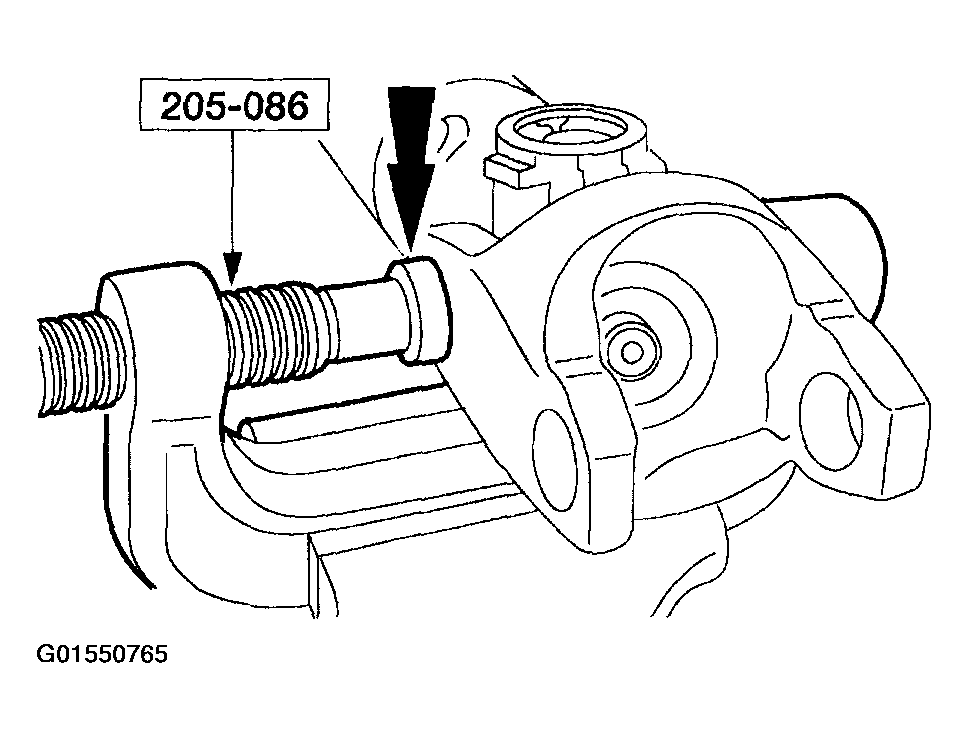

      Fig 6: Pressing Bearing Cups Into Position Using Special Tool
      G01550765Courtesy of FORD MOTOR CO.
  10. Apply grease.
    Fig 7: Applying Grease
    G01550766Courtesy of FORD MOTOR CO.
  11. On the one-piece rear driveshaft, install a new spring.
    Fig 8: Installing Spring
    G01550767Courtesy of FORD MOTOR CO.
    12. NOTE: Align the index marks made during disassembly.

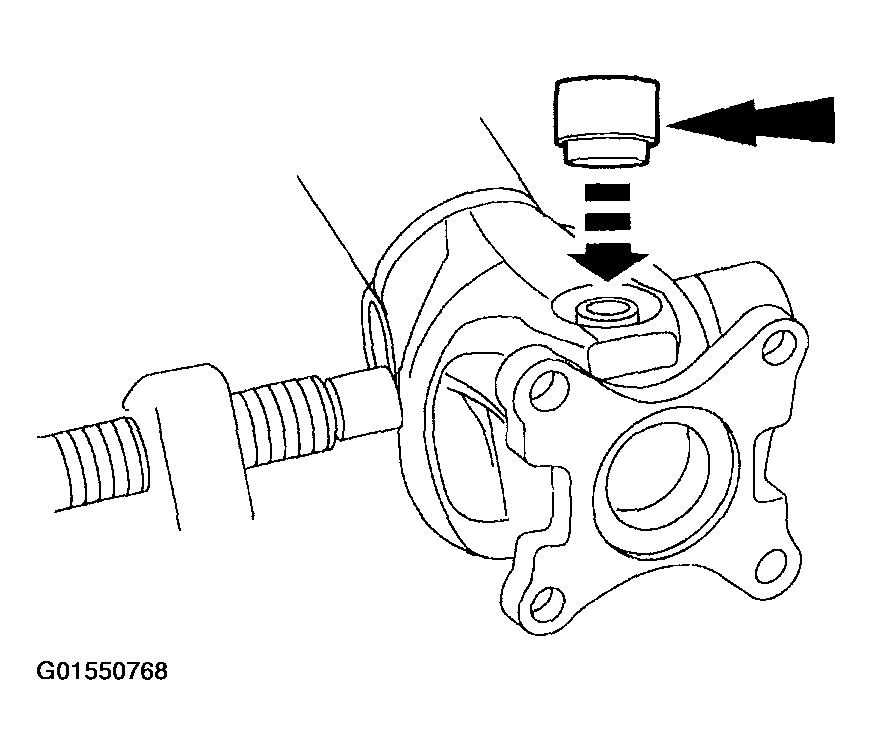

    Fig 9: Positioning Remaining Spider, Centering Flange Yoke And Bearing Cup
    G01550768Courtesy of FORD MOTOR CO.
  12. Position the remaining spider, the centering flange yoke, and the bearing cup.
  13. Using the special tool, press the bearing cup far enough into the yoke to place the opposite bearing cup on the spider trunion.

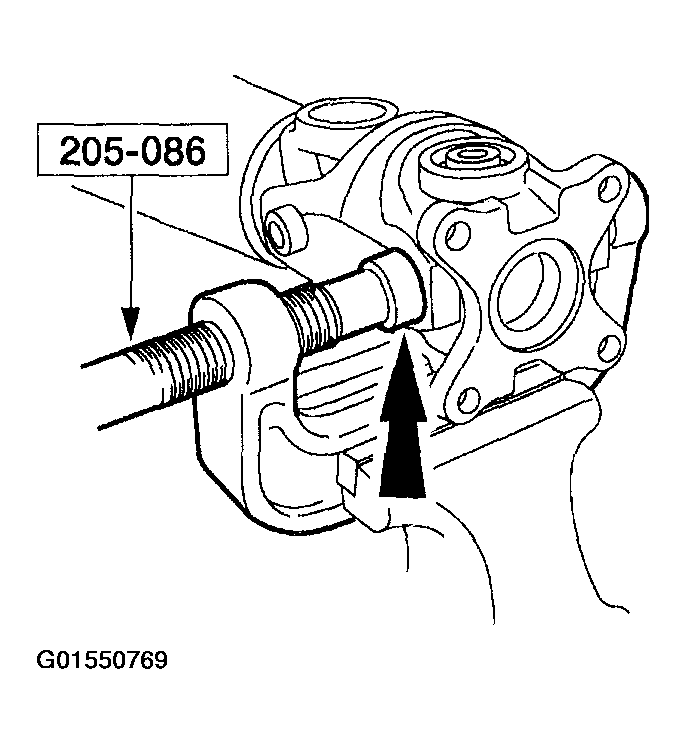

    Fig 10: Pressing Bearing Cup Far Enough Into Yoke To Placing Opposite Bearing Cup On Spider Trunion Using Special Tool
    G01550769Courtesy of FORD MOTOR CO.
  14. Position the opposite bearing cup on the spider trunion.
    Fig 11: Positioning Opposite Bearing Cup On Spider Trunion
    G01550770Courtesy of FORD MOTOR CO.
  15. Using the special tool, press the bearing cup to just below the snap ring groove.

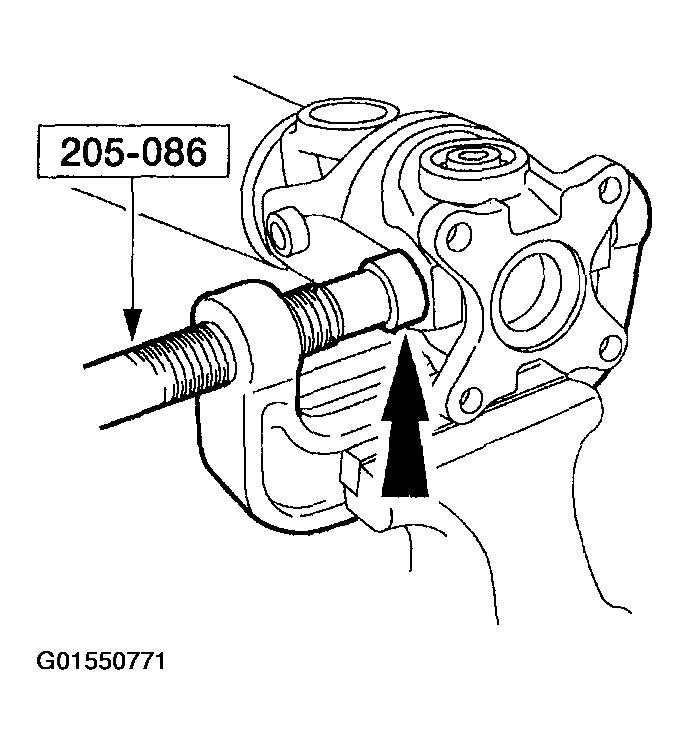

    Fig 12: Pressing Bearing Cup To Just Below Snap Ring Groove Using Special Tool
    G01550771Courtesy of FORD MOTOR CO.
  16. Install the snap ring.
  17. Using the special tool, press the opposite bearing cup to just below the snap ring groove.
    Fig 13: Pressing Opposite Bearing Cup To Just Below Snap Ring Groove Using Special Tool
    G01550772Courtesy of FORD MOTOR CO.
  18. Install the snap ring.
  19. Position the bearing cup on the spider trunion in the centering flange yoke.
    Fig 14: Positioning Bearing Cup On Spider Trunion In Centering Flange Yoke
    G01550773Courtesy of FORD MOTOR CO.
  20. Using the special tool, press the bearing cup into position.
    Fig 15: Pressing Bearing Cup Into Position Using Special Tool
    G01550774Courtesy of FORD MOTOR CO.
    21. CAUTION: The assembly requires centering to install the final bearing cup, due to spring pressure.
    NOTE: Position the jaws of the special tool into the driveshaft center yoke bearing cup bores.

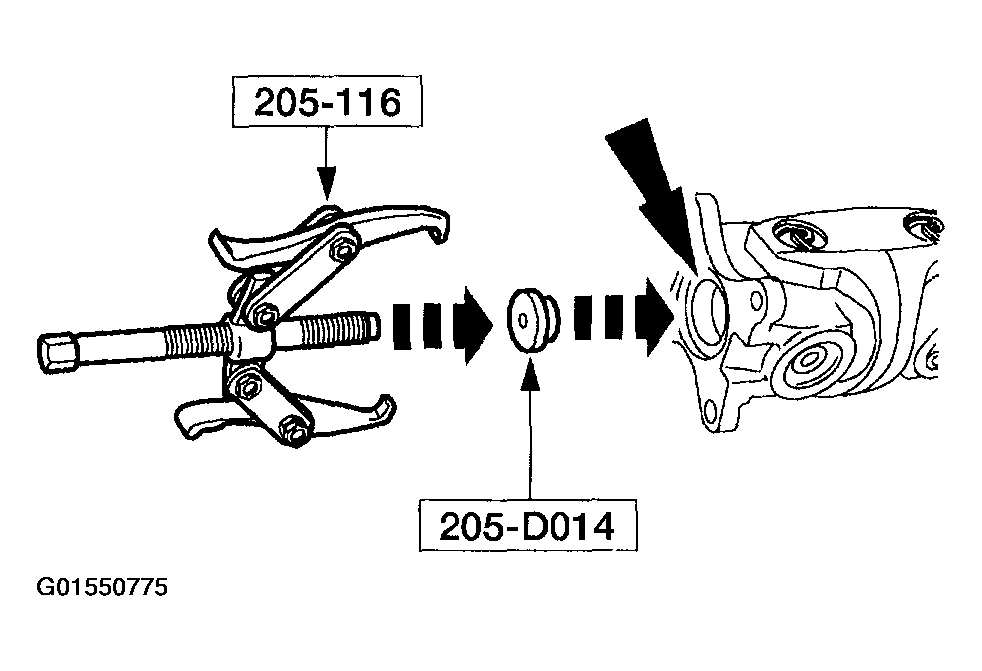

    Fig 16: Positioning Jaws Of Special Tool Into Driveshaft Center Yoke Bearing Cup Bores
    G01550775Courtesy of FORD MOTOR CO.
  21. With the special tools in position, hand-tighten the Differential Bearing Remover to center the spider trunion in the bore.
  22. Using the special tool, install the final bearing cup.
    • Remove the special tools.

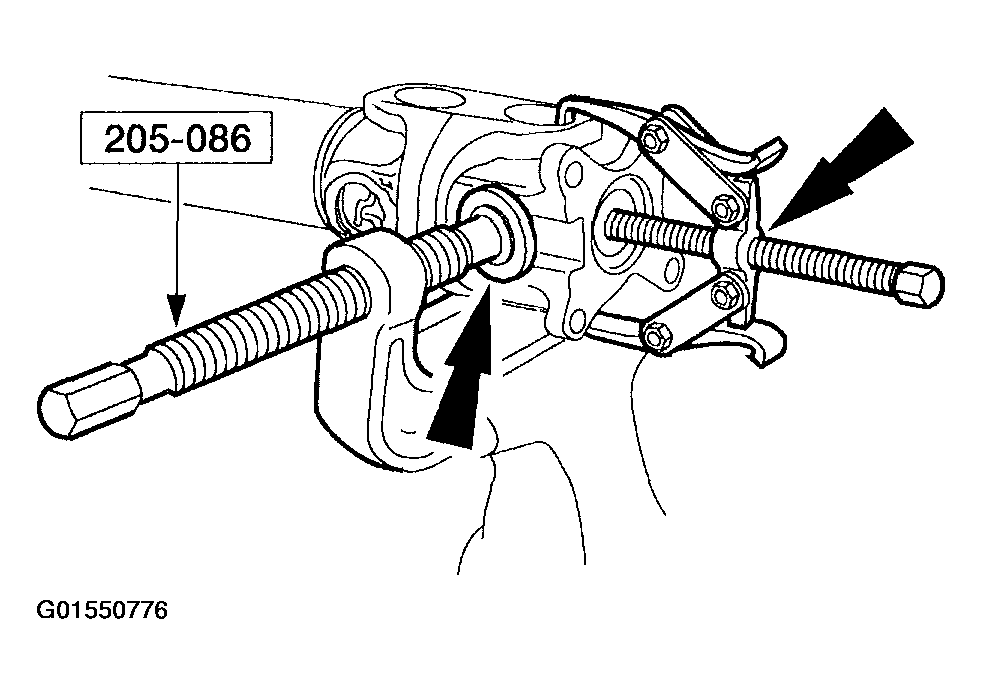

      Fig 17: Installing Final Bearing Cup Using Special Tool
      G01550776Courtesy of FORD MOTOR CO.
    23. NOTE: If necessary, tap the yokes with a soft-faced hammer to seat the bearing cups.

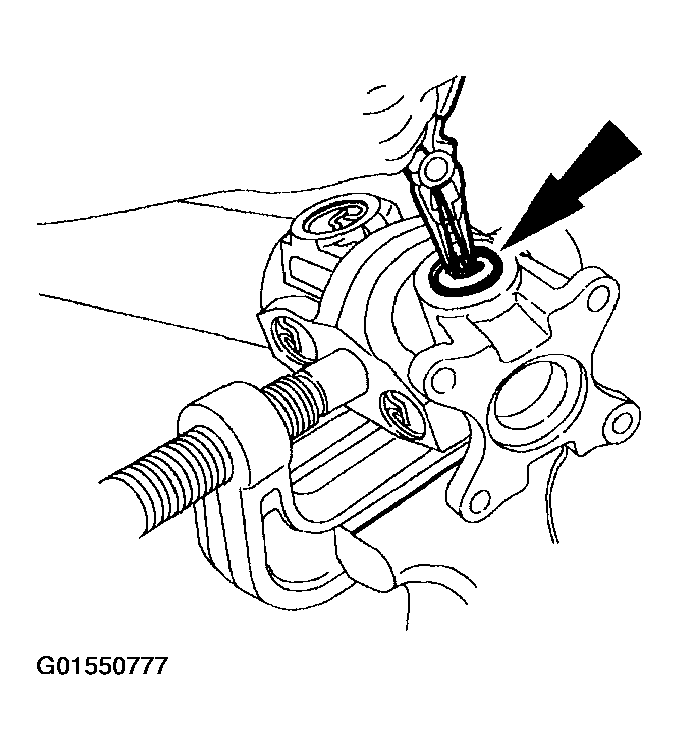

    Fig 18: Installing Remaining Snap Rings
    G01550777Courtesy of FORD MOTOR CO.
  23. Install the remaining snap rings.
  24. Move the end yoke through the working angles to verify freedom of movement.
    Fig 19: Moving End Yoke Through Working Angles To Verify Freedom Of Movement
    G01550778Courtesy of FORD MOTOR CO.
