Driveshaft Slip Yoke: Assembly

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

All driveshafts

Fill the driveshaft slip yoke boot with approximately 10 grams (0.36 ounce) of grease.

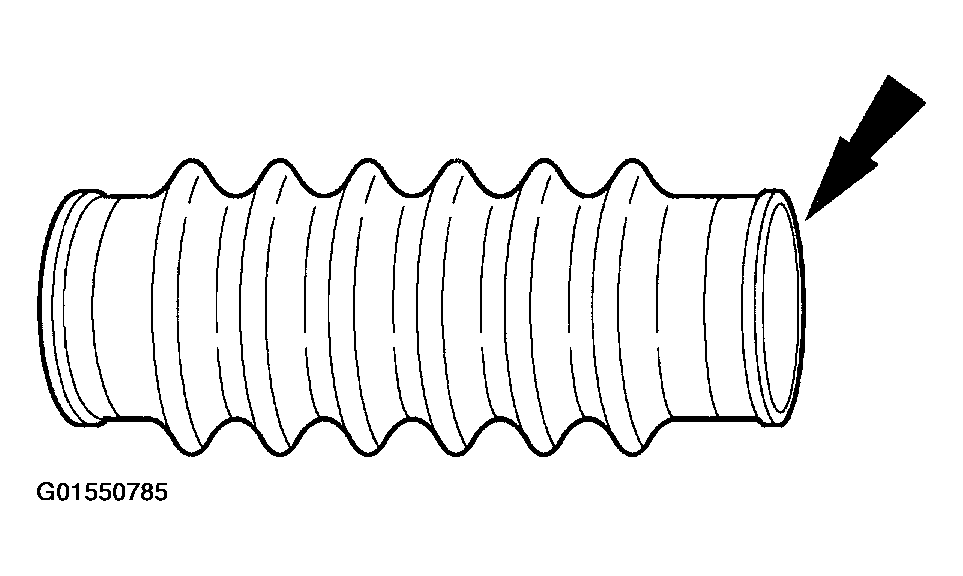

Fig 1: Identifying Slip Yoke Boot
Courtesy of FORD MOTOR CO.
Position the driveshaft slip yoke boot clamp on the stub shaft.

Fig 2: Positioning Driveshaft Slip Yoke Boot Clamp On Stub Shaft
Courtesy of FORD MOTOR CO.
Slide the driveshaft slip yoke boot over the stub shaft, and seat it in the boot groove.

Fig 3: Sliding Driveshaft Slip Yoke Boot Over Stub Shaft
Courtesy of FORD MOTOR CO.

Rear driveshafts
Using the special tool, install the driveshaft slip yoke boot clamp.

Fig 4: Installing Driveshaft Slip Yoke Boot Clamp Using Special Tool
Courtesy of FORD MOTOR CO.

All driveshafts
Install the driveshaft slip yoke.
1. Position the driveshaft slip yoke boot clamp.
2. Pull the driveshaft slip yoke boot toward the stub shaft tube.
3. Lubricate the stub shaft splines with grease.
4. Align the index marks, and install the driveshaft slip yoke.
5. Seat the driveshaft slip yoke boot in the boot groove.

  Fig 5: Installing Driveshaft Slip Yoke
  Courtesy of FORD MOTOR CO.
Front driveshaft
Remove all excess grease from the slip yoke boot and the slip yoke.
Using the special tool, install both driveshaft slip yoke boot clamps. Tighten the tool until the clamp is secure.

Fig 6: Installing Driveshaft Slip Yoke Boot Clamps Using Special Tool
Courtesy of FORD MOTOR CO.

Rear driveshafts
Remove all excess grease from the slip yoke boot and the slip yoke.
Set the driveshaft assembled length to specification.
1. Set the driveshaft assembled length to specification.
  - Measure from the stub shaft weld to the U-joint centerline.
2. Bleed the air from the driveshaft slip yoke boot.
3. Position the driveshaft slip yoke boot clamp.

  Fig 7: Setting Driveshaft Assembled Length To Specification
  Courtesy of FORD MOTOR CO.
Using the special tool, install the driveshaft slip yoke boot clamp.

Fig 8: Using Special Tool, Installing Driveshaft Slip Yoke Boot Clamp
Courtesy of FORD MOTOR CO.
