Transfer Case

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Material Specification

Courtesy of FORD MOTOR CO.

NOTE: Shift the transfer case to 2W HI.

All Vehicles
Raise and support the vehicle.

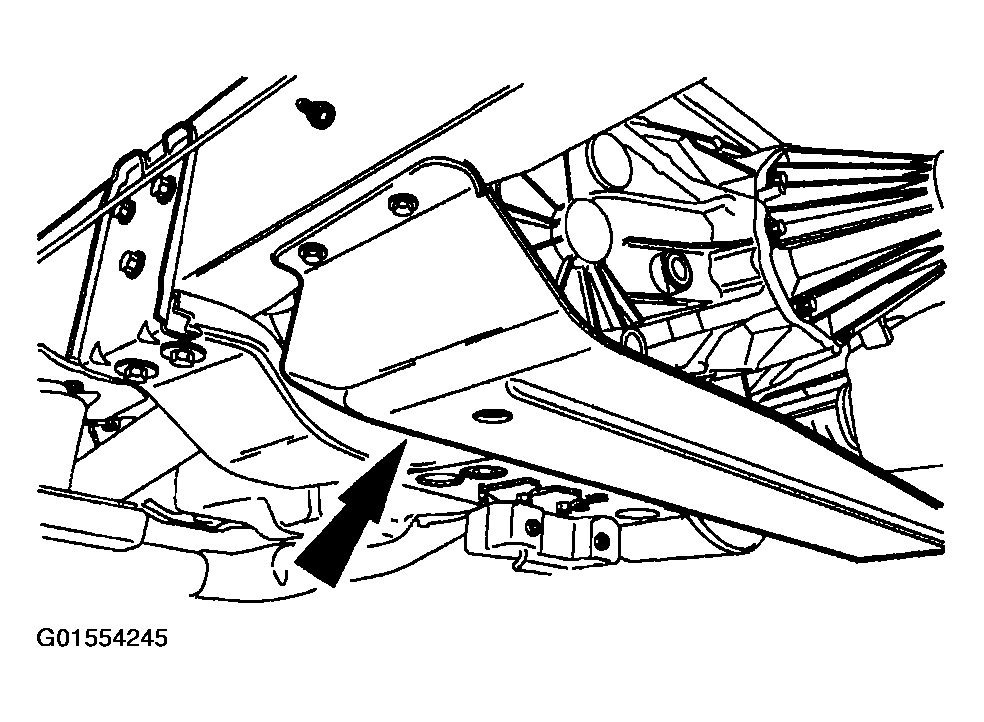

Remove the four bolts and the skid plate, if equipped.

Fig 2: Remove Skid Plate
Courtesy of FORD MOTOR CO.

NOTE: Index-mark the driveshaft to maintain driveline balance.

Remove the rear driveshaft. See REMOVAL & INSTALLATION .
Index-mark the front driveshaft to the transfer case flange.

Fig 3: Index-Marking Front Driveshaft To Transfer Case Flange
Courtesy of FORD MOTOR CO.

NOTE: Support the front driveshaft with wire or a strap.

Fig 4: Removing Front Driveshaft

Courtesy of FORD MOTOR CO.

Remove and discard the four bolts and position the front driveshaft aside.

Manual Shift Transfer Case Models

Remove the manual shift linkage, if equipped.

Fig 5: Removing Manual Shift Linkage
Courtesy of FORD MOTOR CO.

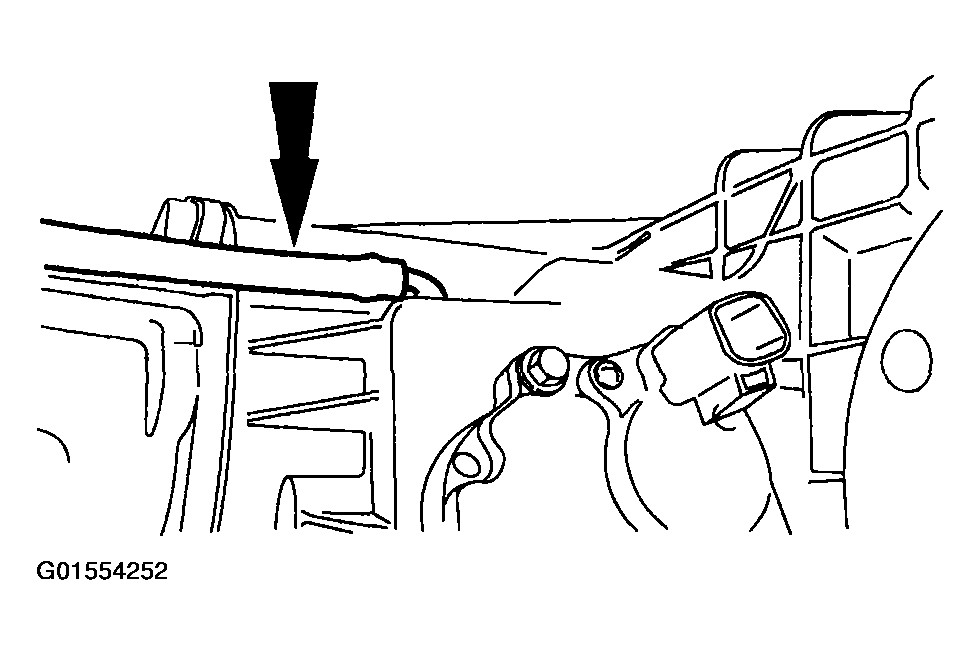

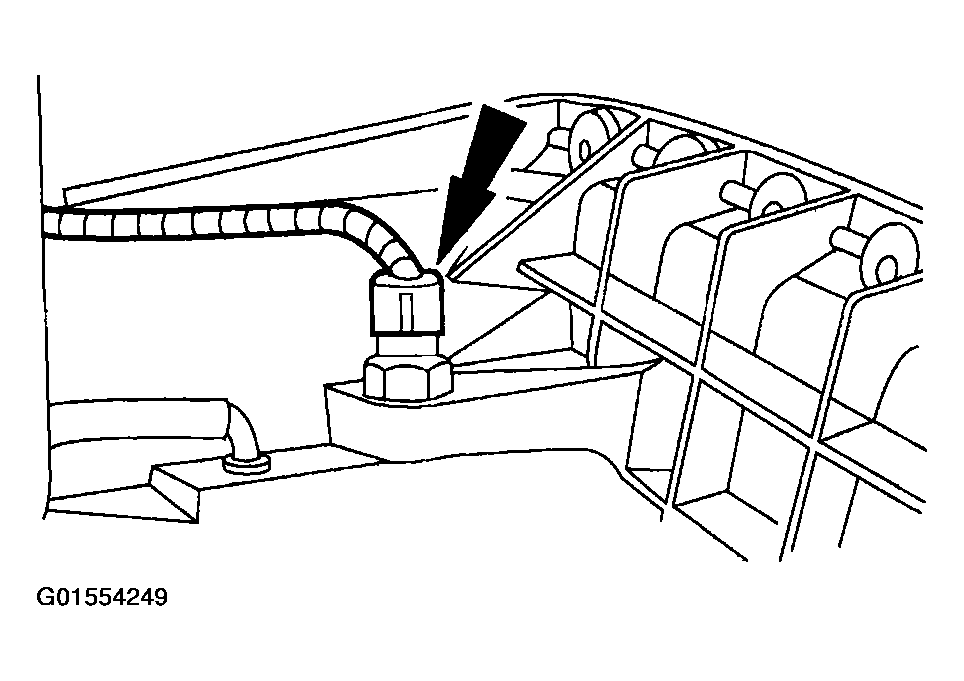

Disconnect the switch electrical connector. Position the wire harness aside.

Fig 6: Disconnecting Switch Electrical Connector (Manual Shift)
Courtesy of FORD MOTOR CO.

Fig 7: Disconnecting Switch Electrical Connector (Electric Shift)
Courtesy of FORD MOTOR CO.

Electric Shift Transfer Case Models

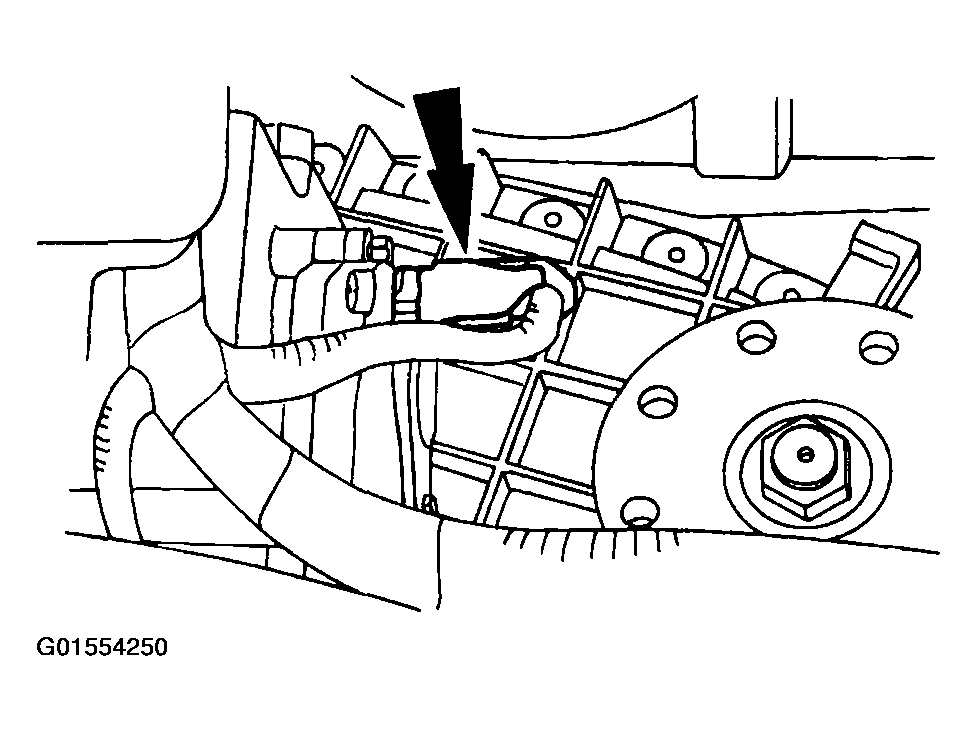

Disconnect the gear motor encoder assembly electrical connector and the gear motor electrical connector. Position the wire harness aside.

Fig 8: Disconnecting Gear Motor Encoder Assembly Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the transfer case vent hose.

Fig 9: Disconnecting Transfer Case Vent Hose
Courtesy of FORD MOTOR CO.

All Transfer Cases

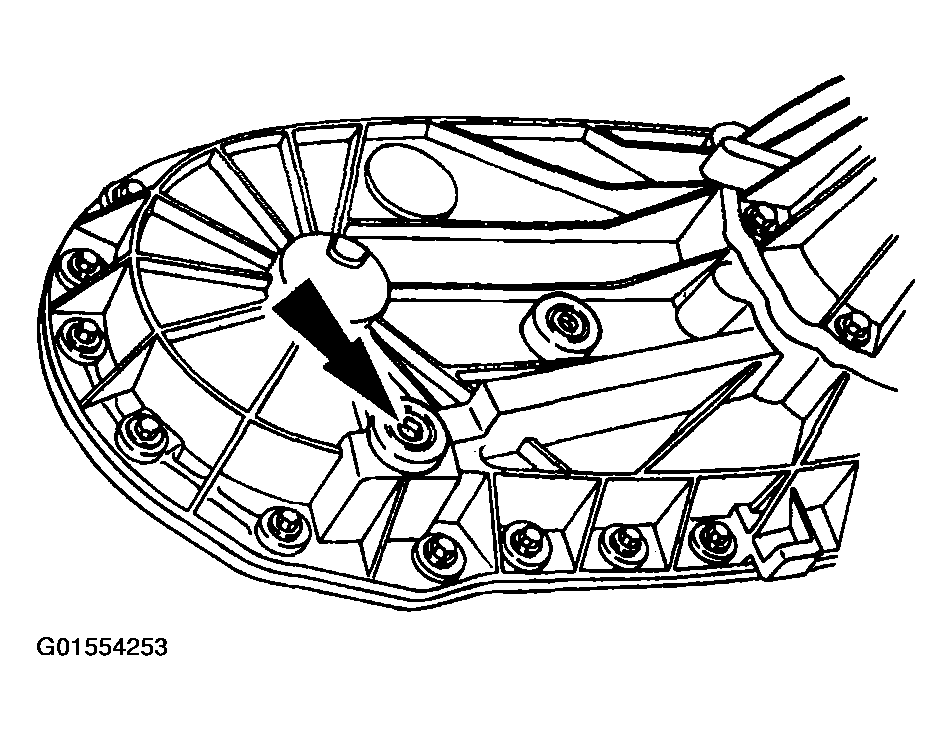

If disassembly is necessary, drain the fluid into a suitable container.
- Install the plug when finished.
Fig 10: Identifying Drain Plug
Courtesy of FORD MOTOR CO.

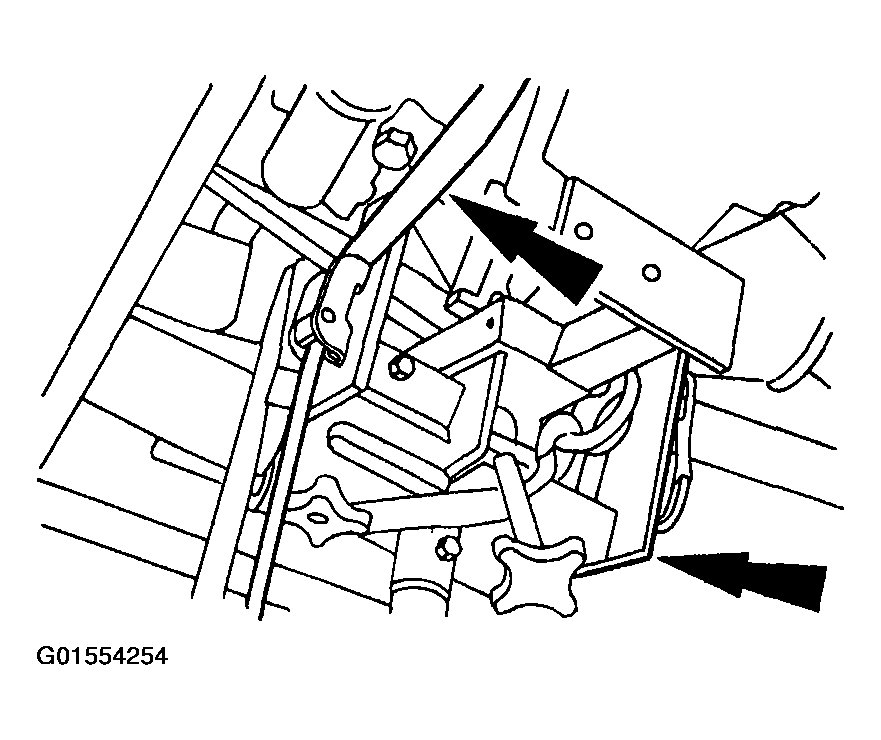

Position a suitable high-lift jack under the transfer case and secure it with safety straps.

Fig 11: Securing High-Lift Jack Under Transfer Case
Courtesy of FORD MOTOR CO.

Excursion Vehicles

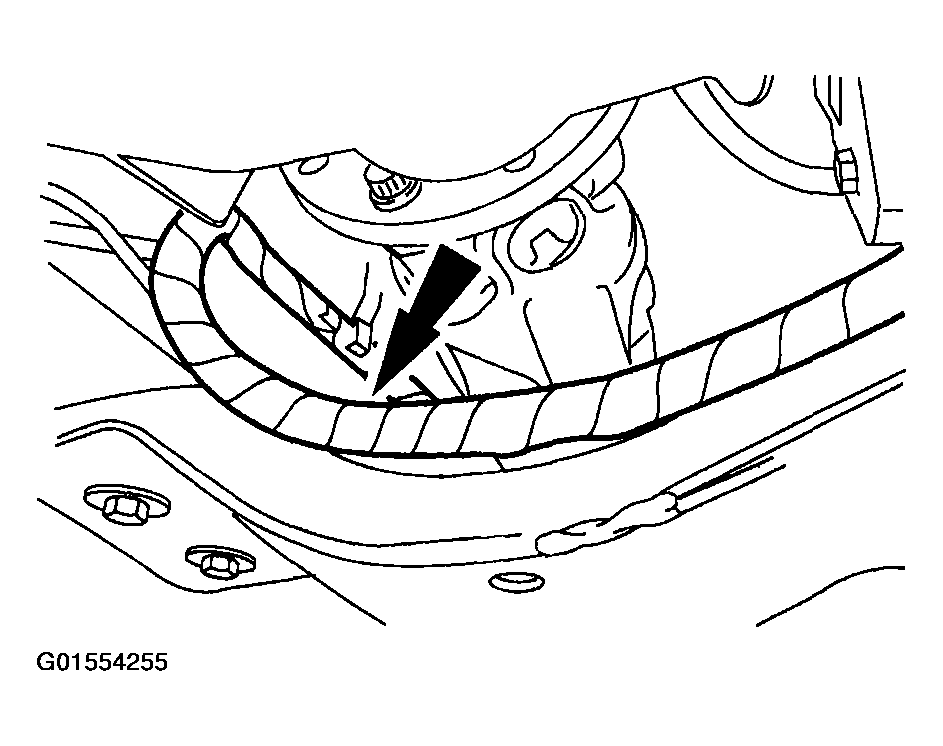

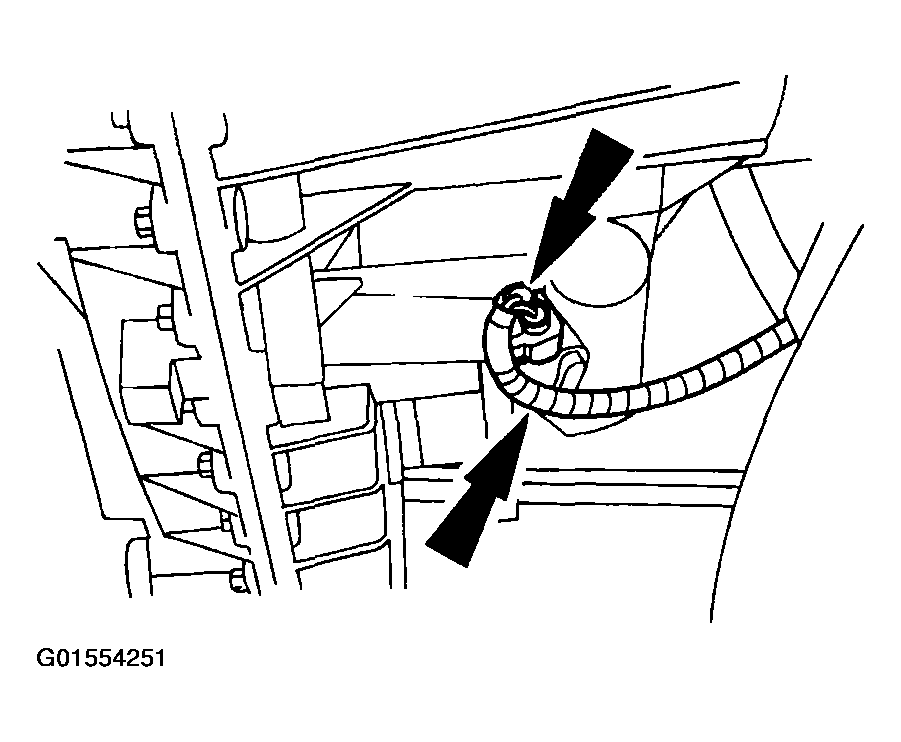

Detach the wire harness from the crossmember.

Fig 12: Detaching Wire Harness From Crossmember
Courtesy of FORD MOTOR CO.

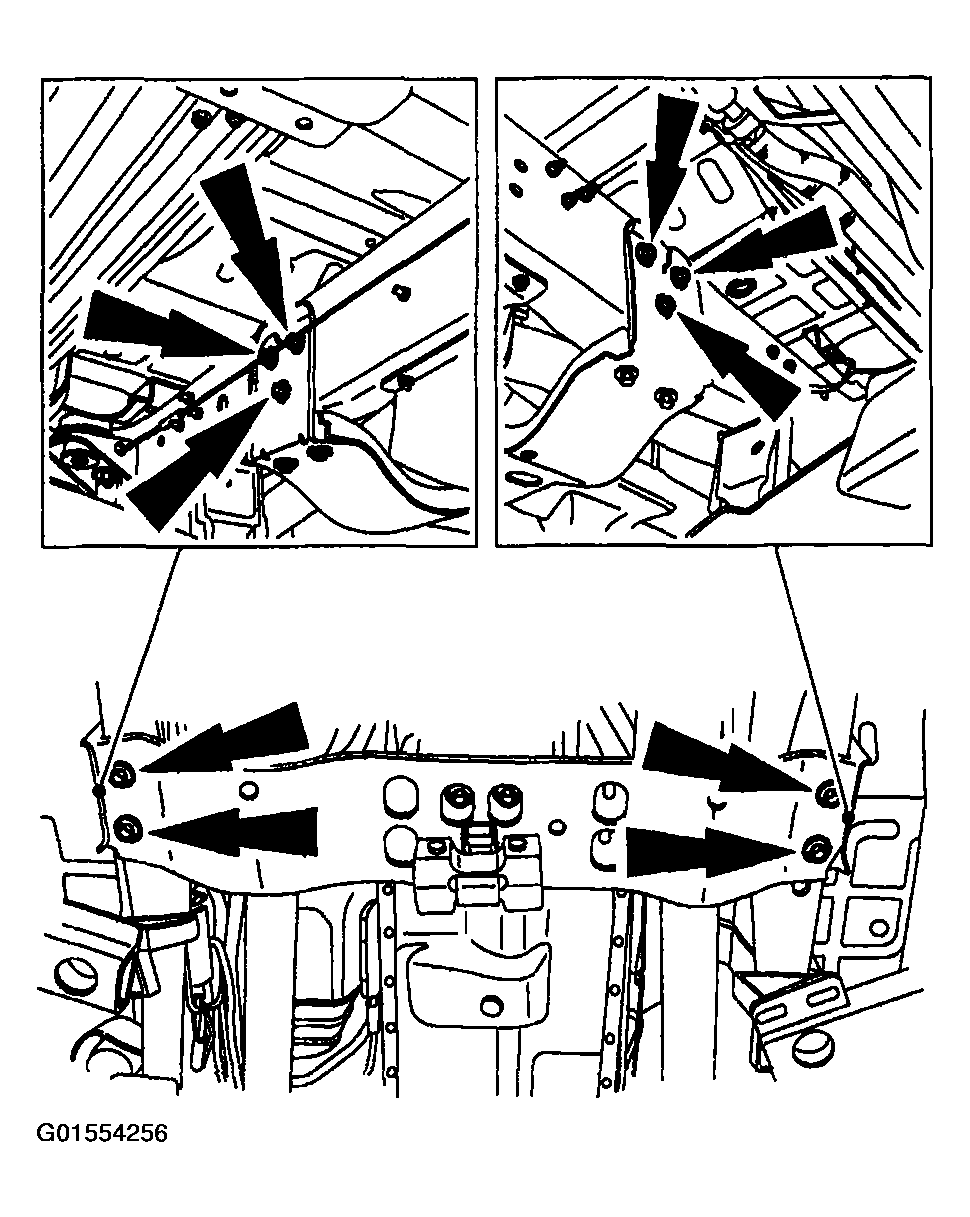

Remove the ten crossmember-to-frame bolts.

Fig 13: Identifying Crossmember-To-Frame Bolts (Excursion)
Courtesy of FORD MOTOR CO.

F-Super Duty Automatic Transmission Vehicles

Remove the four RH crossmember bolts.

Fig 14: Identifying RH Crossmember Bolts (F-Super Duty)
Courtesy of FORD MOTOR CO.
Remove the three LH crossmember bolts.

Fig 15: Identifying LH Crossmember Bolts (F-Super Duty)
Courtesy of FORD MOTOR CO.

NOTE: Typical is shown.

Fig 16: Removing Crossmember

Courtesy of FORD MOTOR CO.

All Vehicles Equipped With Automatic Transmissions

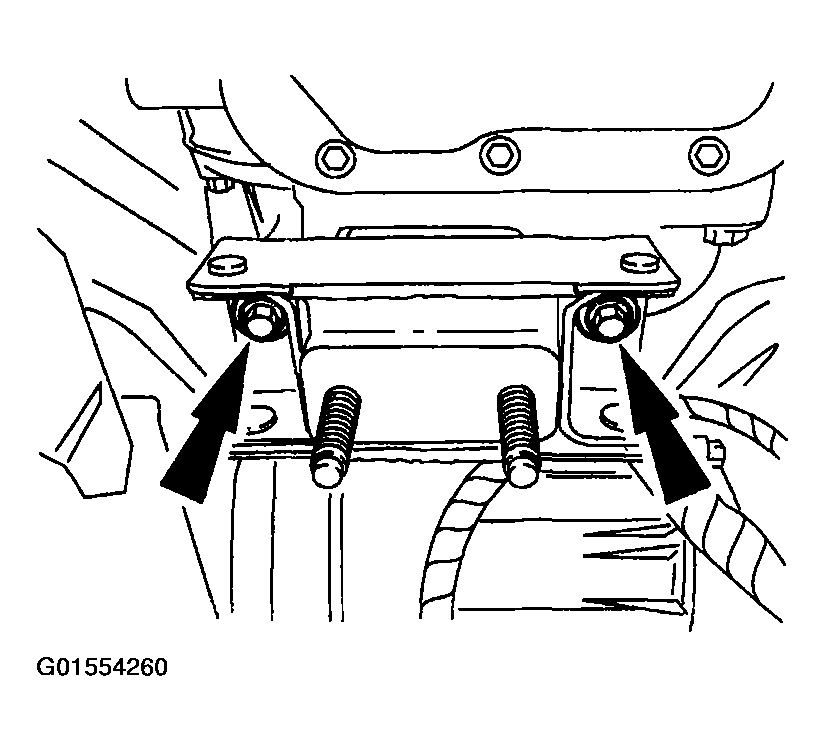

Remove the transmission mount nuts and the crossmember.

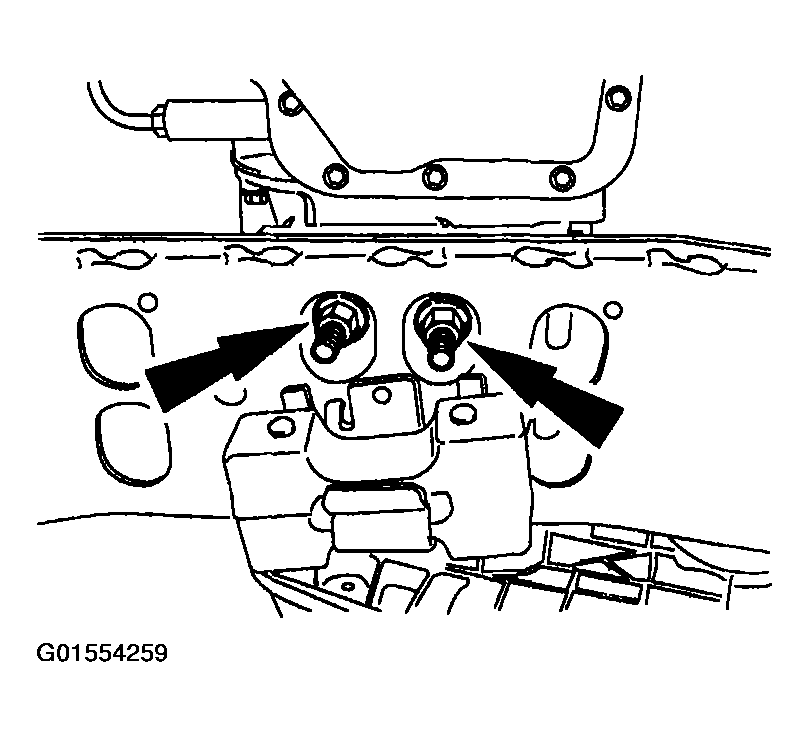

Remove the transmission mount.

Fig 17: Removing Transmission Mount
Courtesy of FORD MOTOR CO.

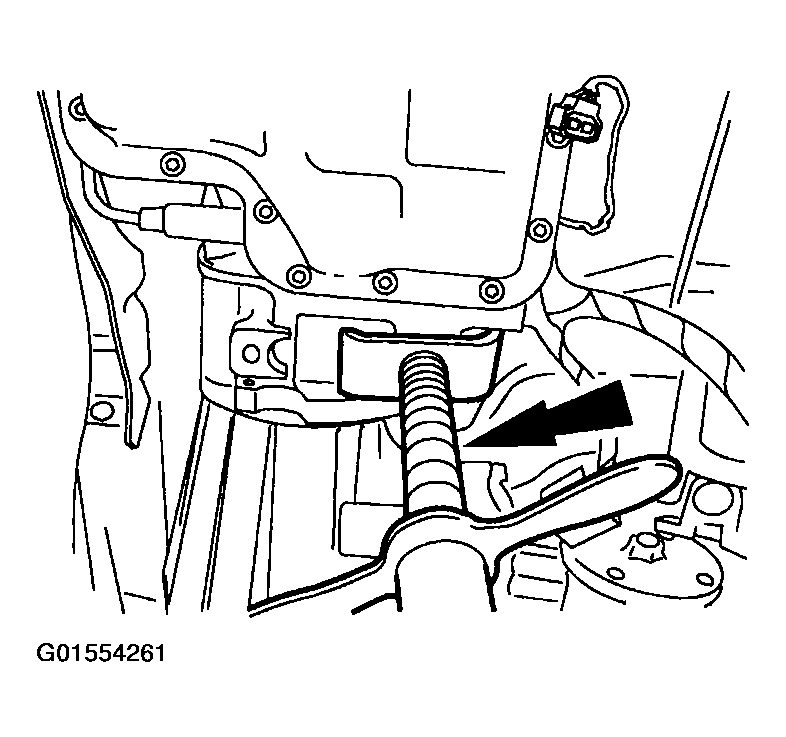

Position a suitable jack stand under the extension housing.

Fig 18: Positioning Jack Stand Under Extension Housing
Courtesy of FORD MOTOR CO.

All Vehicles

Remove the six transfer case-to-transmission bolts.

Fig 19: Removing Transfer Case-To-Transmission Bolts
Courtesy of FORD MOTOR CO.
Separate the transfer case from the extension housing. Pull the transfer case rearward, then lower the transfer case from the vehicle.

CAUTION: Carefully clean the gasket surfaces. Nicks and gouges cause fluid leaks.

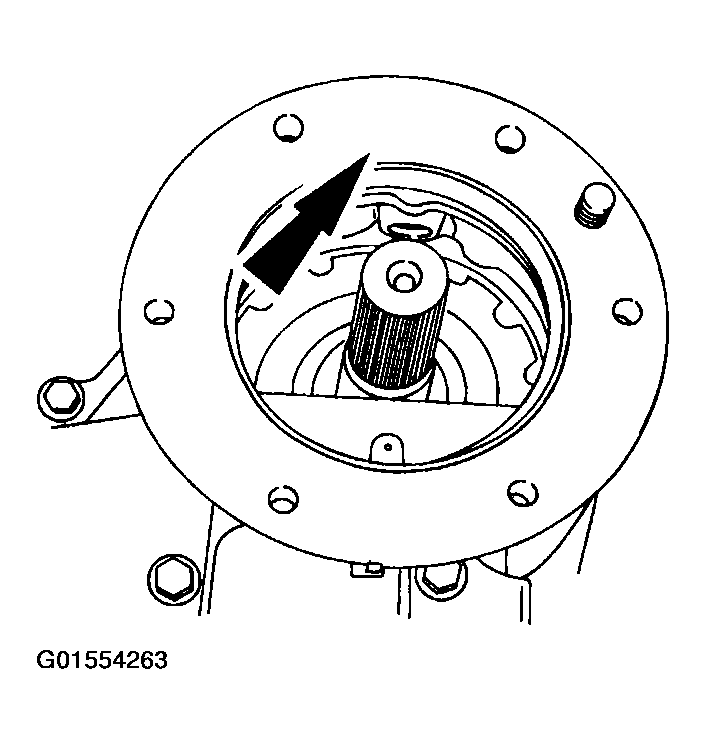

Fig 20: Identifying Mating Surface

Courtesy of FORD MOTOR CO.

Remove the transfer case-to-transmission gasket. Clean the mating surfaces, using metal surface cleaner.
