Transfer Case Shift Lever: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Shift the transfer case into 4H.
  2. Remove the screws that attach the bezel and boot assembly to the floor.
    Fig 1: Removing Bezel & Boot Assembly
    G01554113Courtesy of FORD MOTOR CO.
  3. Remove the bolt that attaches the shift lever to the transfer case control lever assembly, and remove the shift lever, and the bezel and boot assembly.
    1. Slide the bezel and boot assembly upward on the shift lever.
    2. Remove the bolt, the shift lever, and the bezel and boot assembly.

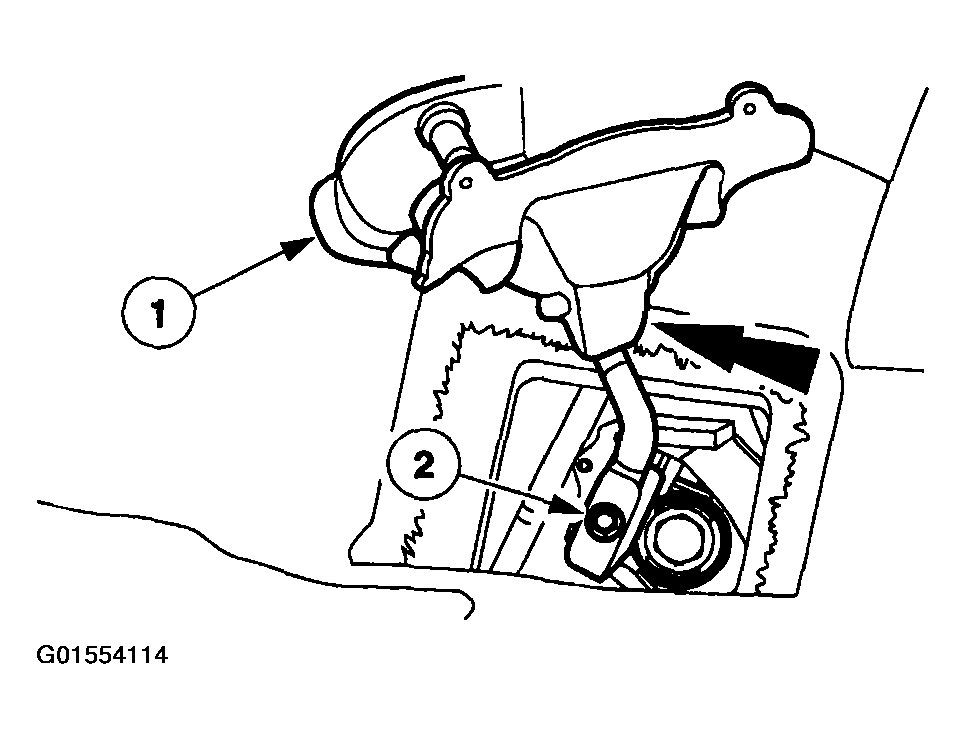

    Fig 2: Removing Shift Lever
    G01554114Courtesy of FORD MOTOR CO.
  4. Raise and support the vehicle.
  5. Disconnect the control rod from the lower shifter arm.
    Fig 3: Disconnecting Control Rod From Lower Shifter Arm
    G01554115Courtesy of FORD MOTOR CO.
  6. Remove the bolt and the transfer case control lever assembly. Discard the bolt.
    Fig 4: Removing Transfer Case Control Lever Assembly
    G01554116Courtesy of FORD MOTOR CO.
