Seal - Front Output: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tools, install a new front output seal.
    Fig 1: Installing Front Output Seal
    G01554111Courtesy of FORD MOTOR CO.
  2. Install the front flange.
    • Use the special tool to prevent the flange from turning while installing a new nut.

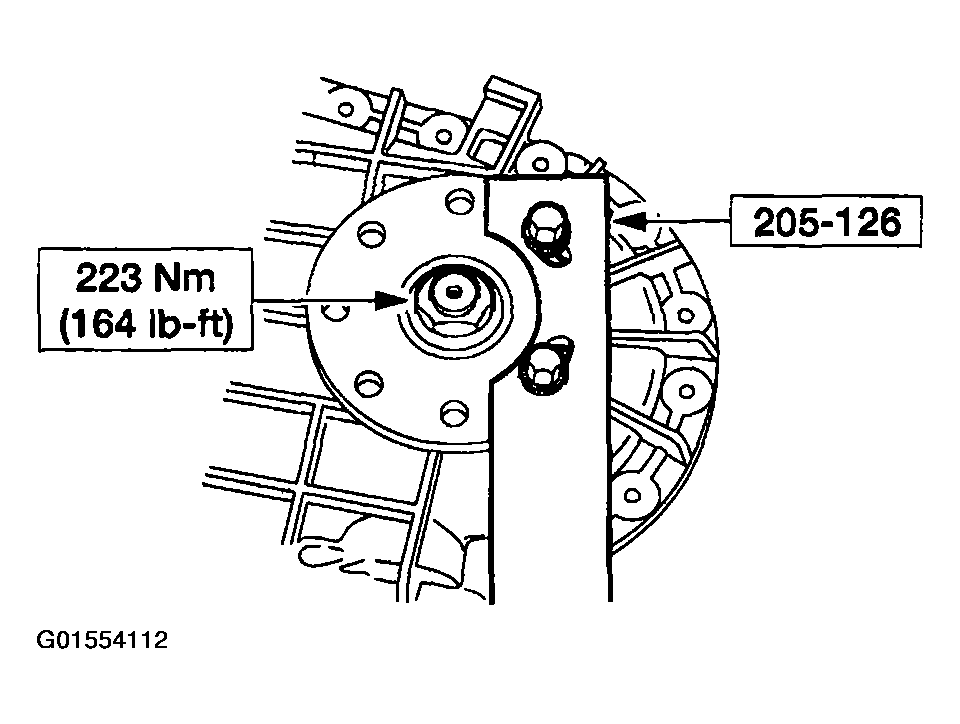

    Fig 2: Installing Front Flange
    G01554112Courtesy of FORD MOTOR CO.
    3. CAUTION: Align the index marks.
  3. Install the front driveshaft.
  4. Check and, if necessary, fill the transfer case with the specified fluid to the specified level. For additional information, refer to TRANSFER CASE DRAINING & FILLING  .
  5. Lower the vehicle.
