Manual Transmission: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

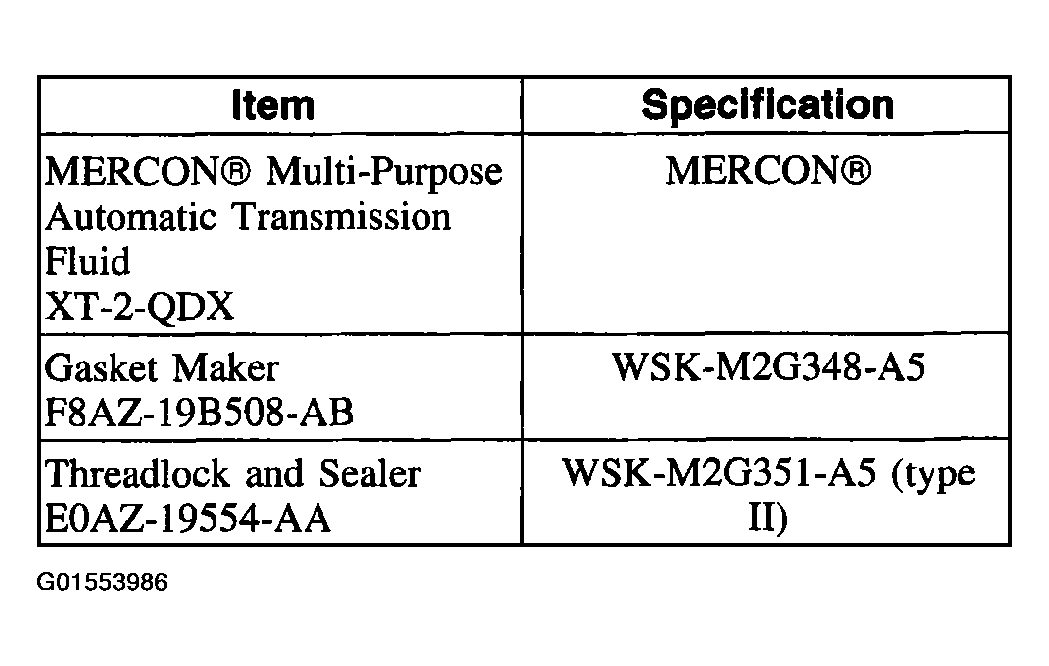

Fig 2: Material Specification

Courtesy of FORD MOTOR CO.

All Vehicles

Using the transmission jack, raise and position the transmission to the engine and clutch.

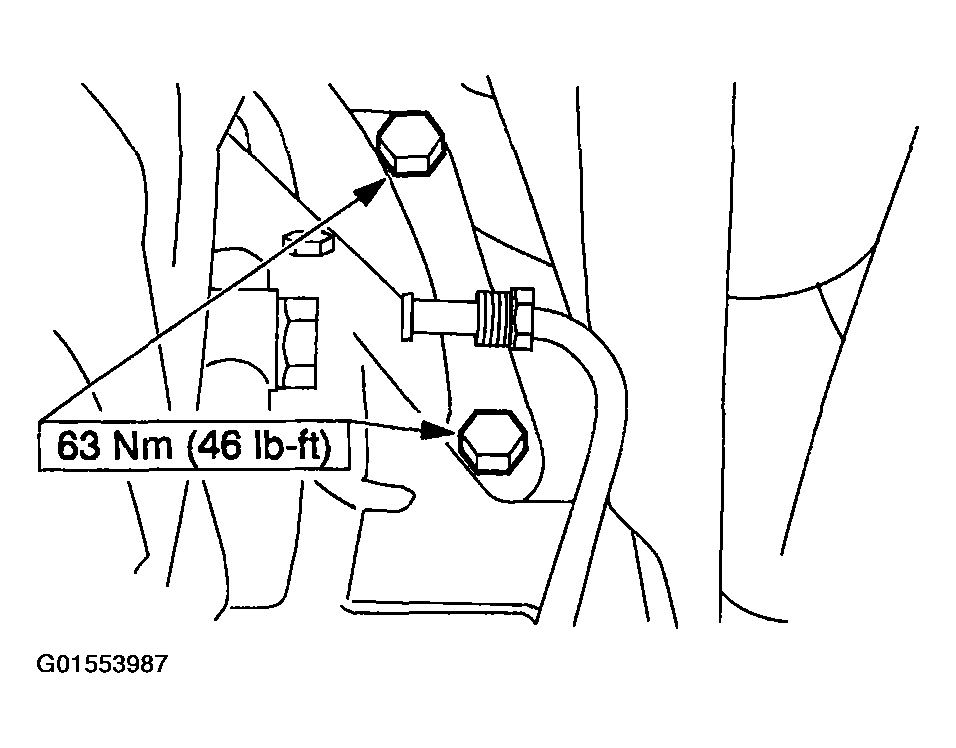

Install the transmission-to-engine bolts.
- For vehicles equipped with diesel engines, install six bolts.
- For vehicles equipped with gasoline engines, install seven bolts.
Fig 3: Installing Transmission-To-Engine Bolts
Courtesy of FORD MOTOR CO.
Install the LH crossmember bolts.

Fig 4: Installing Crossmember Bolts (LH)
Courtesy of FORD MOTOR CO.
Install the RH crossmember nuts.

Fig 5: Installing Crossmember Bolts (RH)
Courtesy of FORD MOTOR CO.
Install the transmission mount nuts.

Fig 6: Installing Transmission Mount Nuts
Courtesy of FORD MOTOR CO.

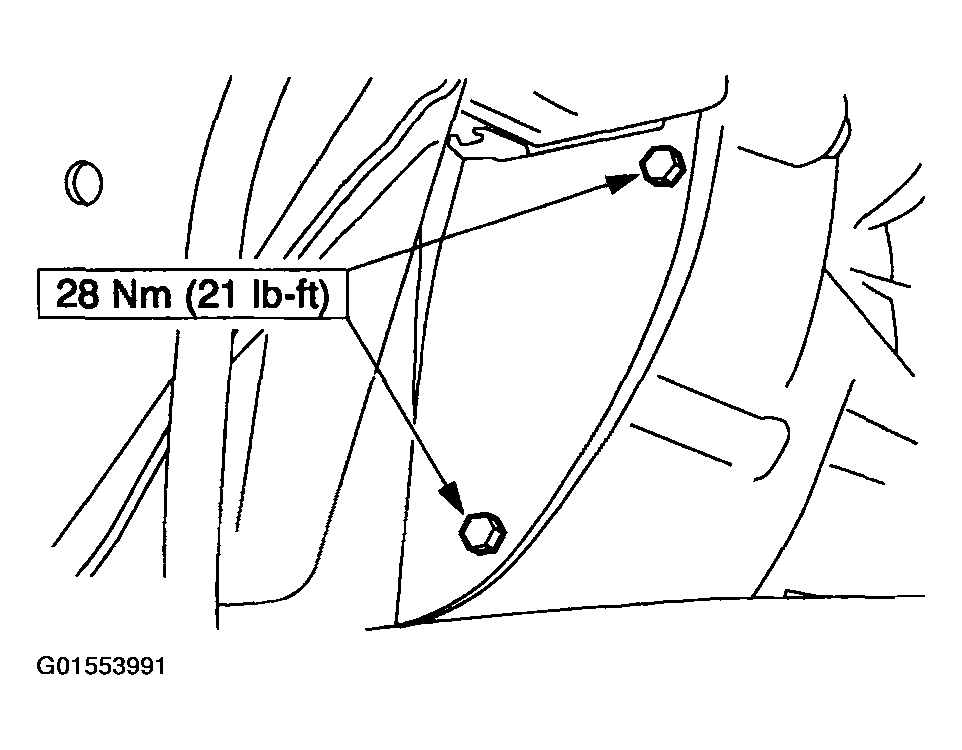

Install the engine plate bolts.

Fig 7: Installing Engine Plate Bolts (1 Of 2)
Courtesy of FORD MOTOR CO.

Fig 8: Installing Engine Plate Bolts (2 Of 2)
Courtesy of FORD MOTOR CO.
Remove the transmission jack.
Connect the transmission cooler tubes.

Fig 9: Connecting Transmission Cooler Tubes
Courtesy of FORD MOTOR CO.

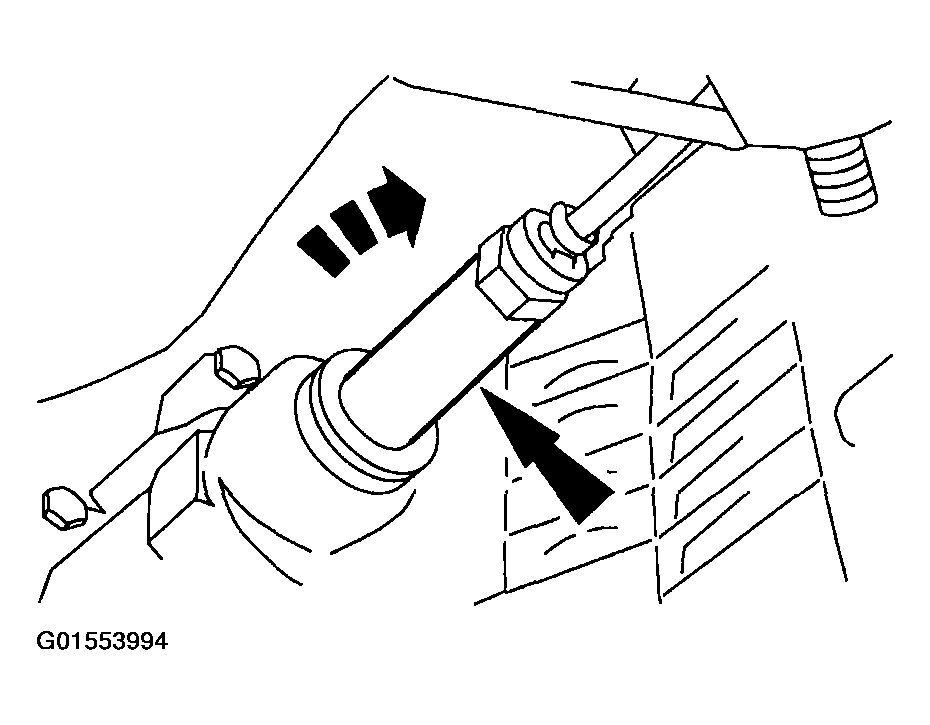

Install the clutch slave cylinder.
- Rotate the clutch slave cylinder clockwise 45 degrees to lock in position.
Fig 10: Installing Clutch Slave Cylinder
Courtesy of FORD MOTOR CO.
Install the starter. For additional information, refer to the following:
- For vehicles with gasoline engines, see STARTER MOTOR .
- For vehicles with diesel engines, see STARTER MOTOR .
Install the transfer case, if equipped. For additional information, refer toTRANSFER CASE .
- If the transfer case control lever assembly was removed from the transmission, it must be correctly aligned.
Connect the driveshaft. For additional information, refer to DRIVESHAFTS & UNIVERSAL JOINTS .
Install any Power Take-Off (PTO) equipment, if equipped.

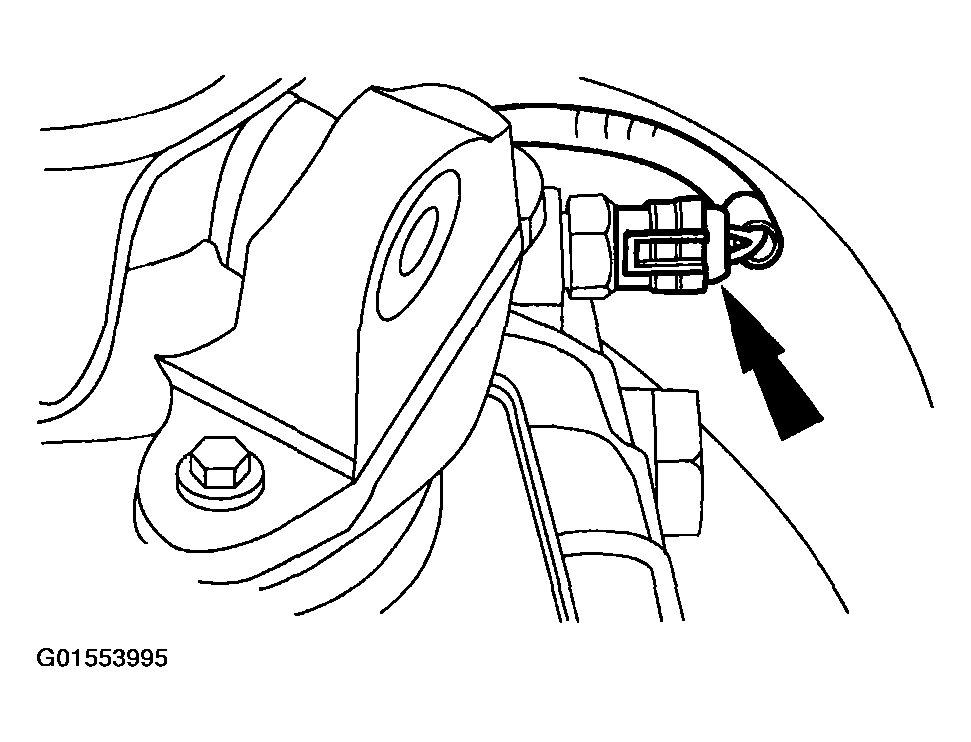

Connect the reverse lamp switch electrical connector.

Fig 11: Connecting Reverse Lamp Switch Electrical Connector
Courtesy of FORD MOTOR CO.

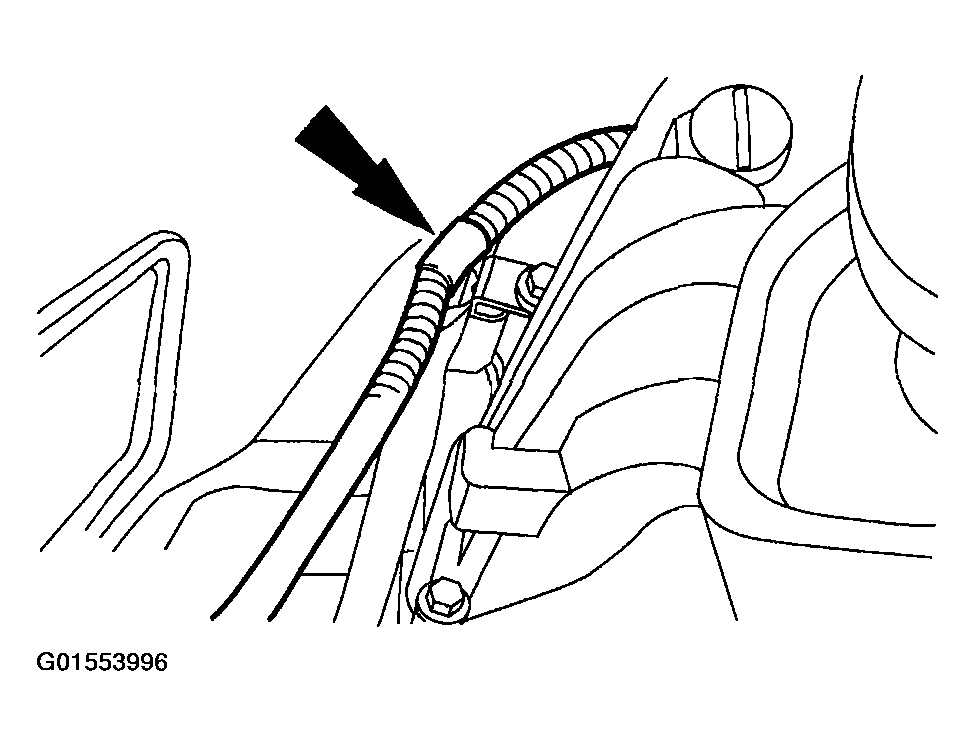

Connect the wiring harness to the transmission.

Fig 12: Connecting Wiring Harness
Courtesy of FORD MOTOR CO.
Refill the transmission to specification.
- Refill the transmission with clean transmission fluid.
Lower the vehicle.

CAUTION: DO NOT use a silicone sealing compound.

NOTE: Do not wait longer than ten minutes to tighten the six bolts due to the rapid cure time of the sealant.

Fig 13: Installing Lower Gearshift Lever & Shift Housing Assembly

Courtesy of FORD MOTOR CO.

Install the lower gearshift lever and shift housing assembly.
- Apply gasket maker to the shift housing and the main case.
Install the lower shift lever boot.

Fig 14: Installing Lower Shift Lever Boot
Courtesy of FORD MOTOR CO.

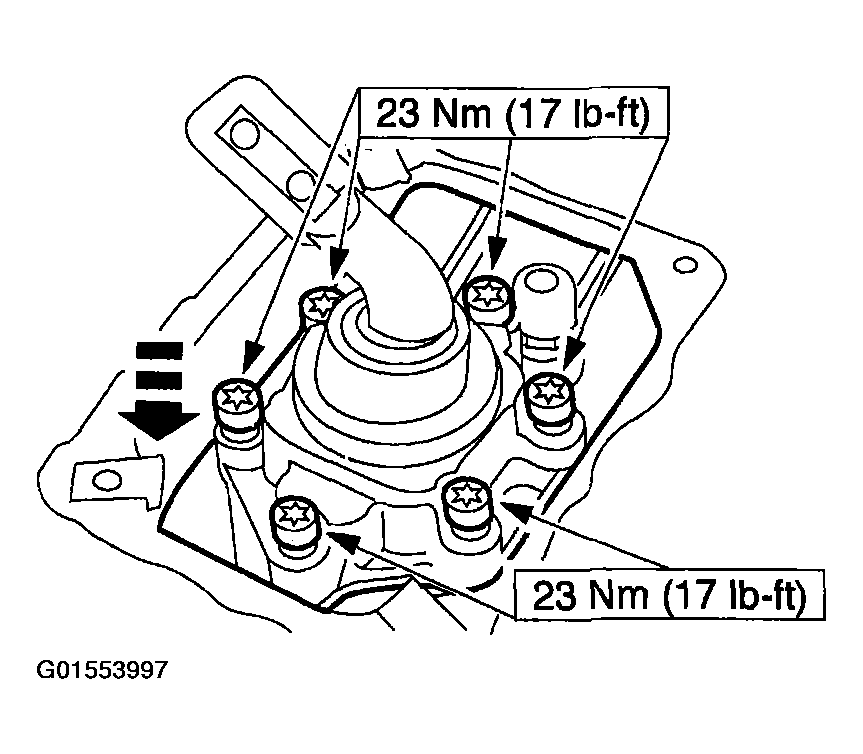

Apply threadlock and sealer to the gearshift lever bolts. Install the upper gearshift lever.

Fig 15: Installing Upper Gearshift Lever
Courtesy of FORD MOTOR CO.
Install the screws.

Fig 16: Installing Outer Shift Lever Boot
Courtesy of FORD MOTOR CO.

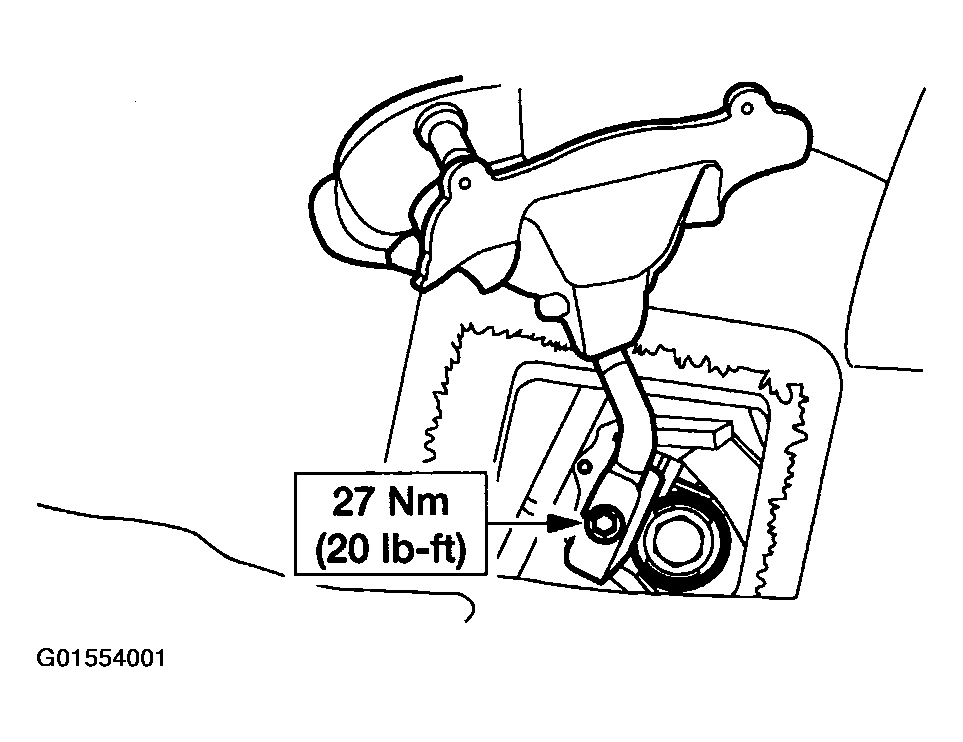

Vehicles With Manual Shift Lever

Position the shift lever with the bezel and boot assembly and install the bolt.

Fig 17: Installing Shift Lever With Bezel & Boot Assembly
Courtesy of FORD MOTOR CO.

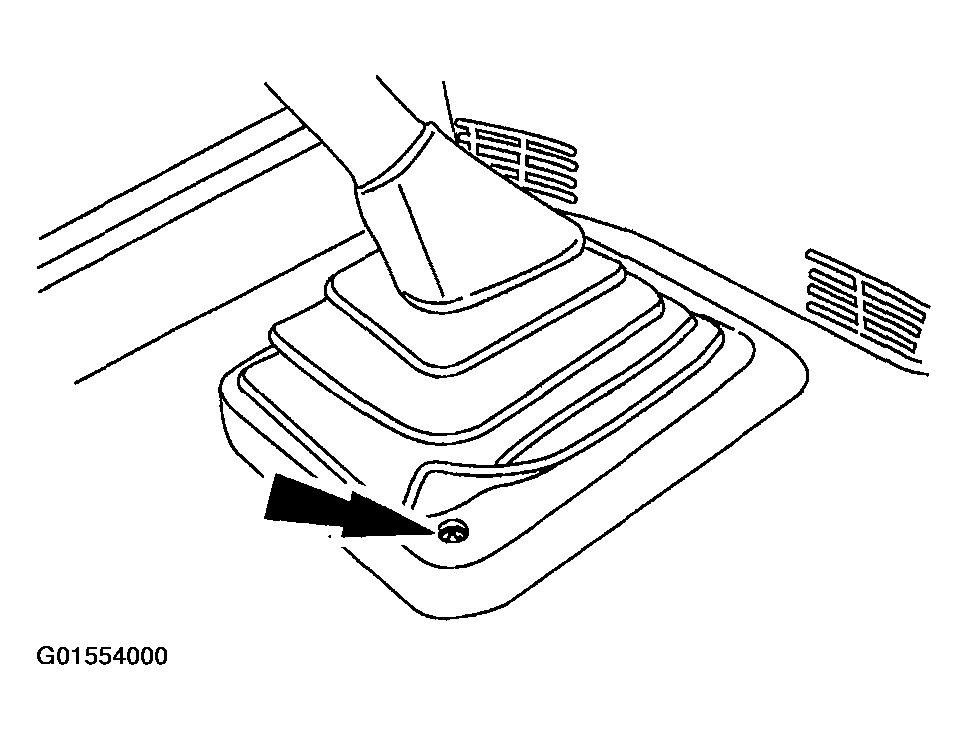

Position the bezel and boot assembly and install the screws.

Fig 18: Installing Bezel & Boot Assembly
Courtesy of FORD MOTOR CO.
Verify the shift sequence from 2H to 4L to 2H.
