Removal And Installation: Flywheel: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Install the flywheel.
1. Install the guide studs.
2. Install the flywheel and ring gear assembly, and the reinforcing ring (7.3L).
3. Install the bolts.
4. Remove the guide studs. Install and tighten the bolts to specification.

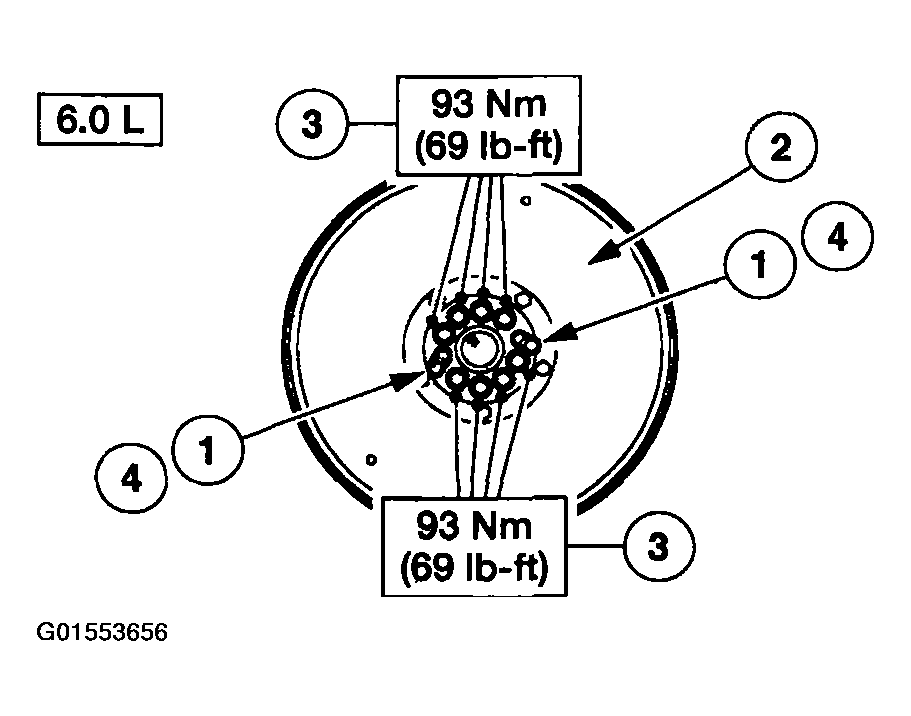

Fig 1: Installing Flywheel (6.0L)
Courtesy of FORD MOTOR CO.

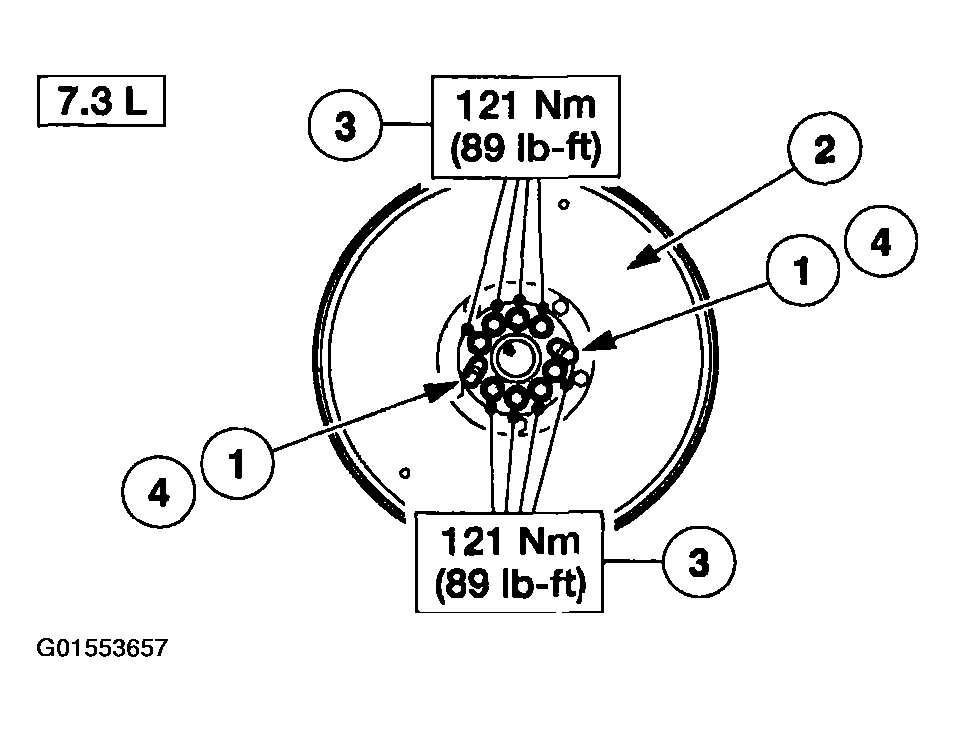

Fig 2: Installing Flywheel (7.3L)
Courtesy of FORD MOTOR CO.

Fig 3: Installing Flywheel (5.4L & 6.8L)
Courtesy of FORD MOTOR CO.
Restore the vehicle to operating condition.
1. Install the clutch disc and pressure plate. For additional information, refer to Clutch Disc and Pressure Plate in this section.
2. Install the transmission. For additional information, refer to Section 308-03.
