Clutch Disc And Pressure Plate: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the transmission. For additional information, refer to TRANSMISSION .
Index-mark the clutch pressure plate and the flywheel, if reinstalling these parts.

Fig 1: Index-Marking Clutch Pressure Plate & Flywheel
Courtesy of FORD MOTOR CO.
Remove the bolts, the clutch pressure plate, and the clutch disc.

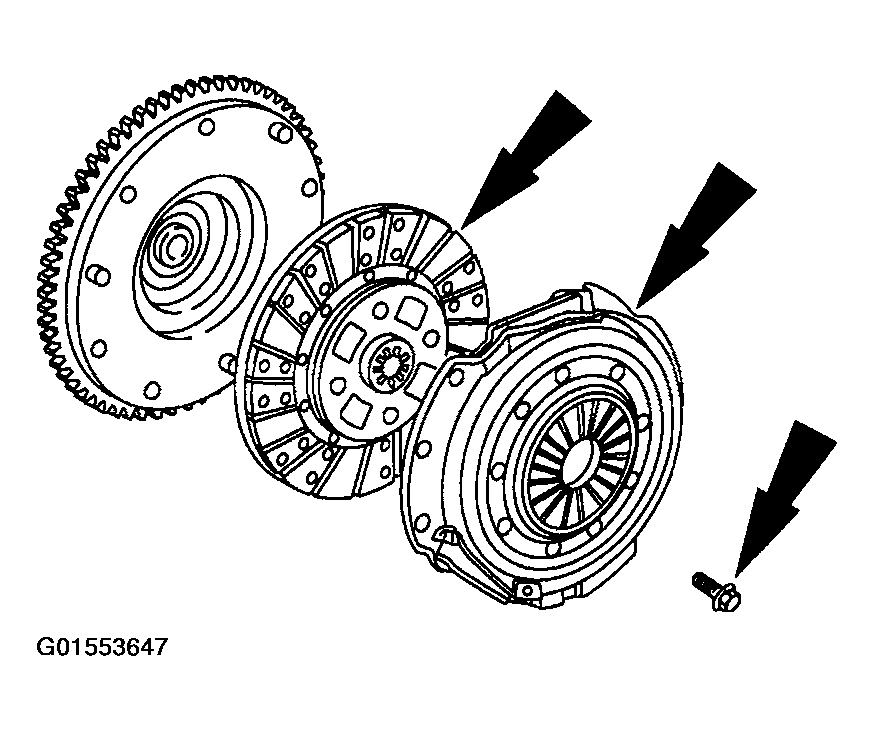

Fig 2: Removing Clutch Pressure Plate & Clutch Disc
Courtesy of FORD MOTOR CO.
Inspect the transmission input shaft pilot bearing:
- for misalignment and looseness in the crankshaft (gasoline engine) or flywheel (diesel engine).
- needle rollers for scoring, discoloration, wear, and broken rollers.
- seal for damage and lubricant leakage.
  - Install a new transmission input shaft pilot bearing if any of these conditions are present. For additional information, refer to Pilot Bearing in this section.
