Description And Operation: Clutch

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

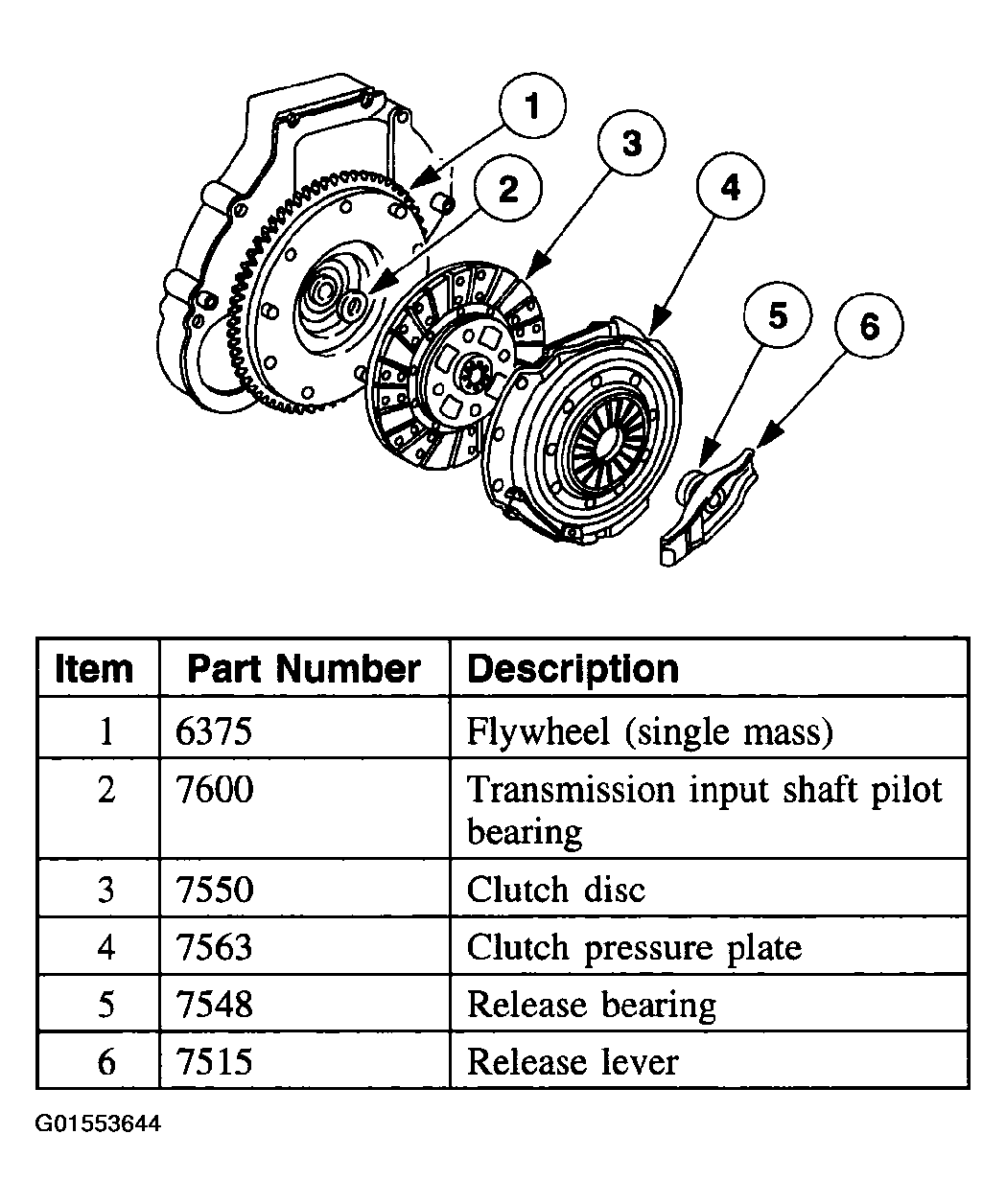

Fig 1: Exploded View Of Clutch Assembly - 5.4L, 6.0L, 6.8L (F450/F550) & 7.3L Engines
G01553644Courtesy of FORD MOTOR CO.

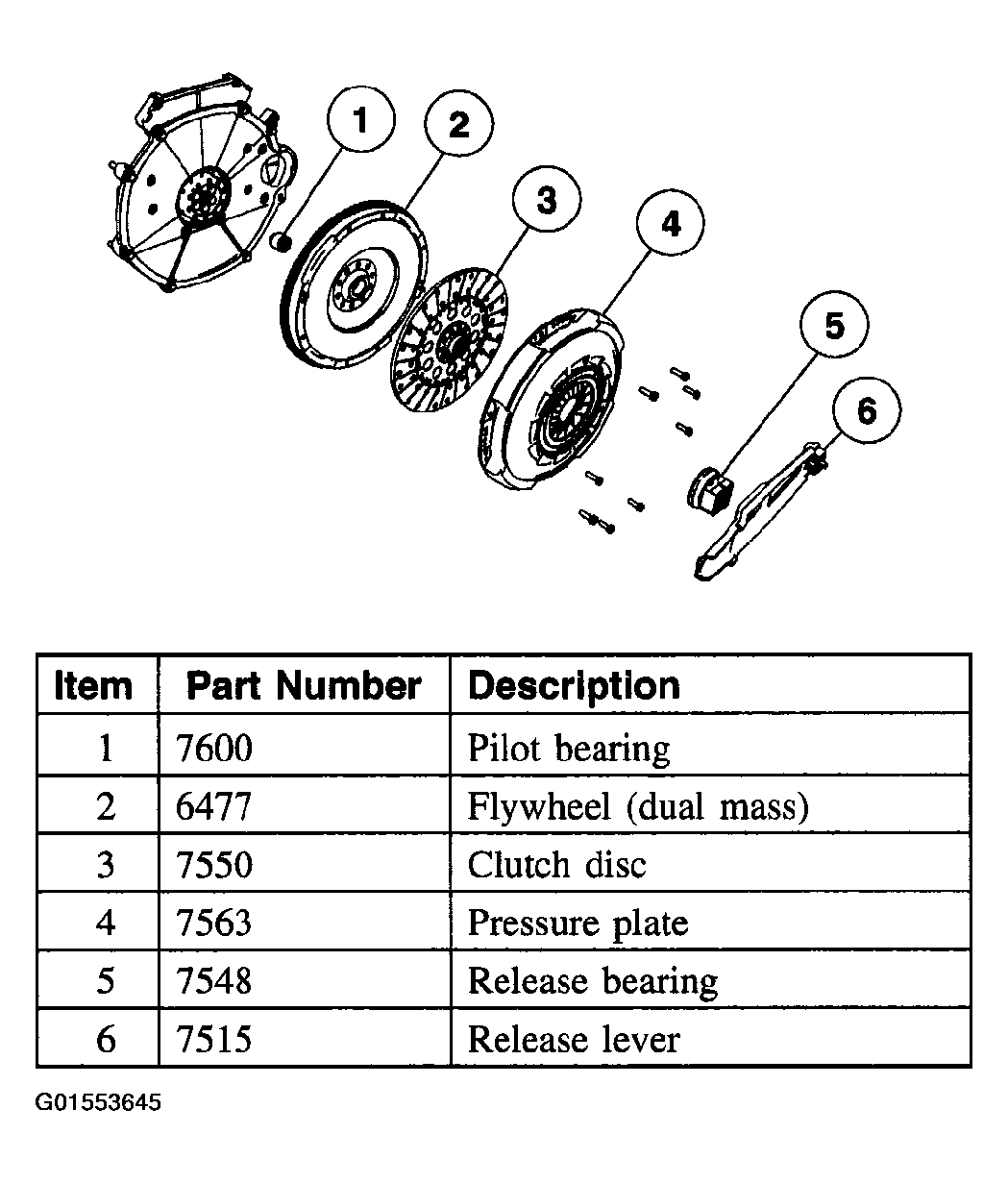

Fig 2: Exploded View Of Clutch Assembly - 6.0L Engine (F250/F350)
G01553645Courtesy of FORD MOTOR CO.
