Removal & Installation

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the Clutch Pedal Position (CPP) switch electrical connector. See Fig 1. Pull down on CPP switch retaining clip and slide CPP switch toward driver seat. Remove the plastic retainer by pushing the lock tabs together and sliding the plastic retainer off the CPP switch. See Fig 2. Remove CPP switch from clutch pedal rod and remove CPP switch. To install, reverse the removal procedure.

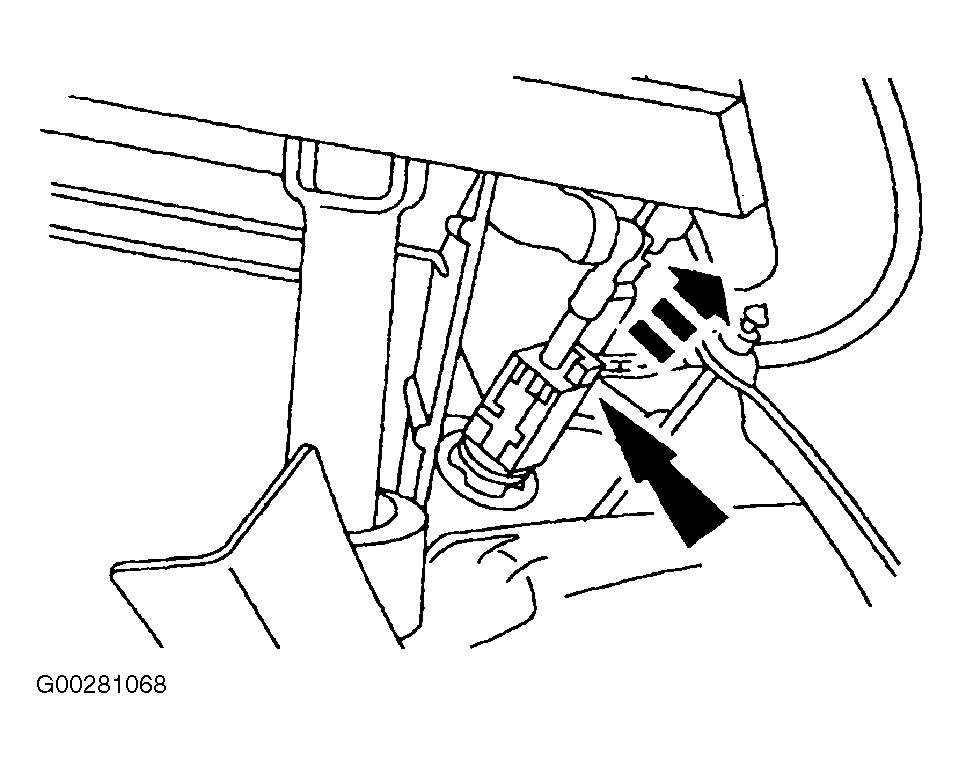

Fig 1: Disconnecting Clutch Pedal Position Switch Electrical Connector

Courtesy of FORD MOTOR CO.

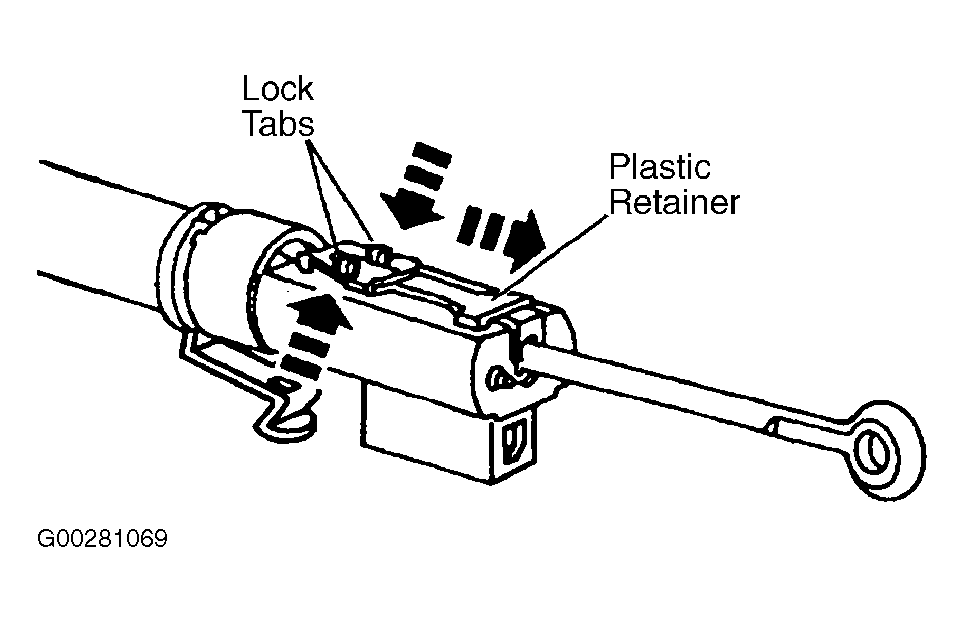

Fig 2: Removing Clutch Pedal Position Switch Plastic Retainer

Courtesy of FORD MOTOR CO.
