Removal & Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Ford Pickup Heritage, 2004 Ford Pickup, 2003 Lincoln Blackwood, 2003 Ford Pickup, and 2002 Lincoln Blackwood. However, it is still accessible from the selected car via links, so may be relevant.

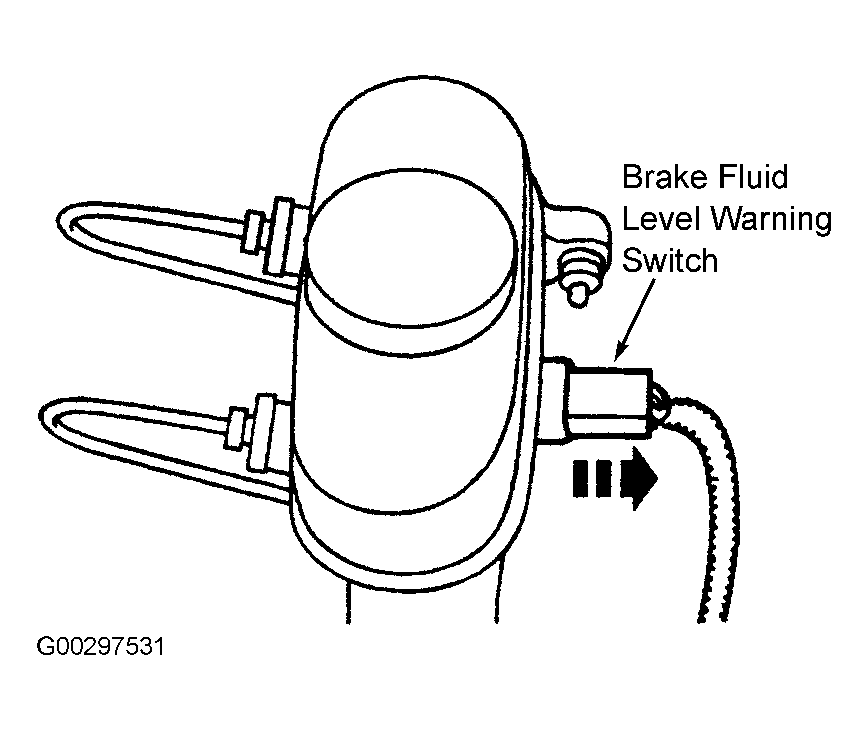

- Disconnect the brake fluid level warning switch. See Fig 1.
- If equipped with speed control, disconnect the brake pressure switch harness connector. See Fig 2.
- Disconnect the two brake lines and plug the lines and the brake master cylinder ports.

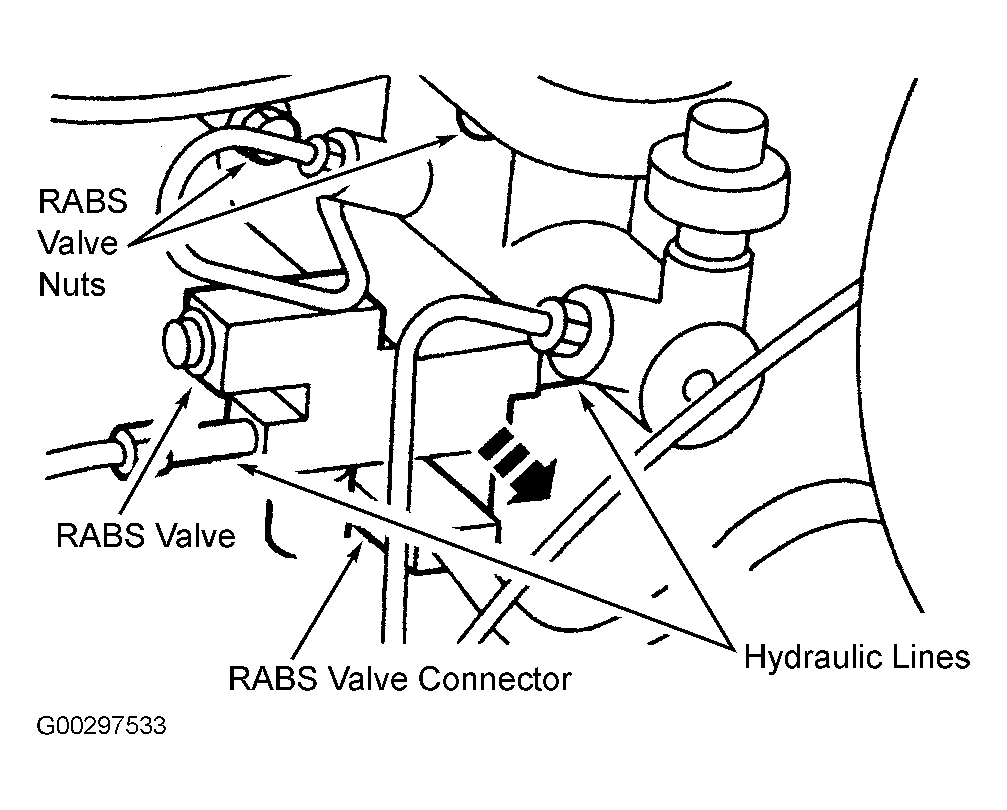

- On vehicles equipped with the Rear Anti-Lock Brake System (RABS), remove the RABS valve. Disconnect the RABS valve harness connector. See Fig 3. Disconnect the 2 hydraulic lines and plug them. Remove the two RABS valve nuts. Remove the RABS valve.
- Remove the two brake master cylinder nuts. Remove the brake master cylinder.
- To install, reverse removal procedure. Tighten fasteners to specification. See TORQUE SPECIFICATIONS . Bleed brakes. See BLEEDING BRAKE SYSTEM .
