Removal & Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS  . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM  . Remove left front seat. See FRONT SEAT  . Place seat on appropriate work surface.
  2. Disconnect seat track position sensor electrical connector. Unclip locking tab while turning sensor counterclockwise. See Fig 1 . Lift upward and remove seat track position sensor.
  3. To install, reverse removal procedure. Activate air bag system. See ACTIVATING SYSTEM  under DISABLING & ACTIVATING AIR BAG SYSTEM.

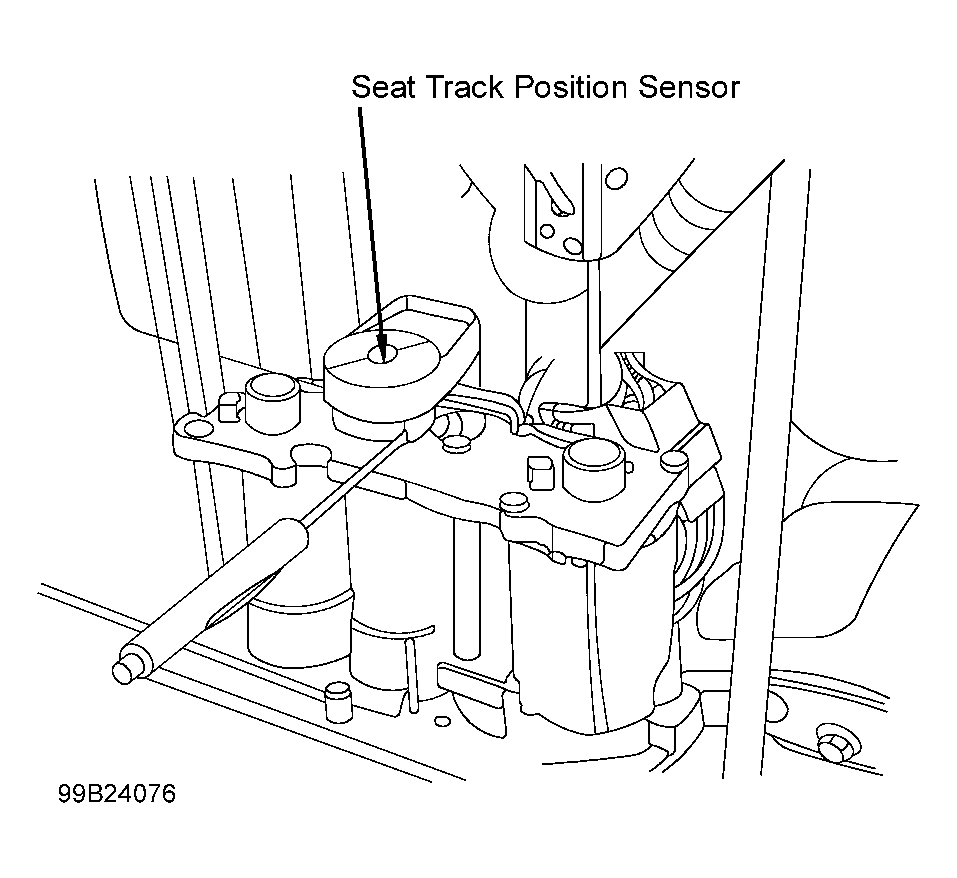

Fig 1: Removing Seat Track Position Sensor
G99B24076Courtesy of FORD MOTOR CO.
