Removal & Installation
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Turbocharger variable vane hydraulic control valve may also be referred to as variable geometric turbo actuator.

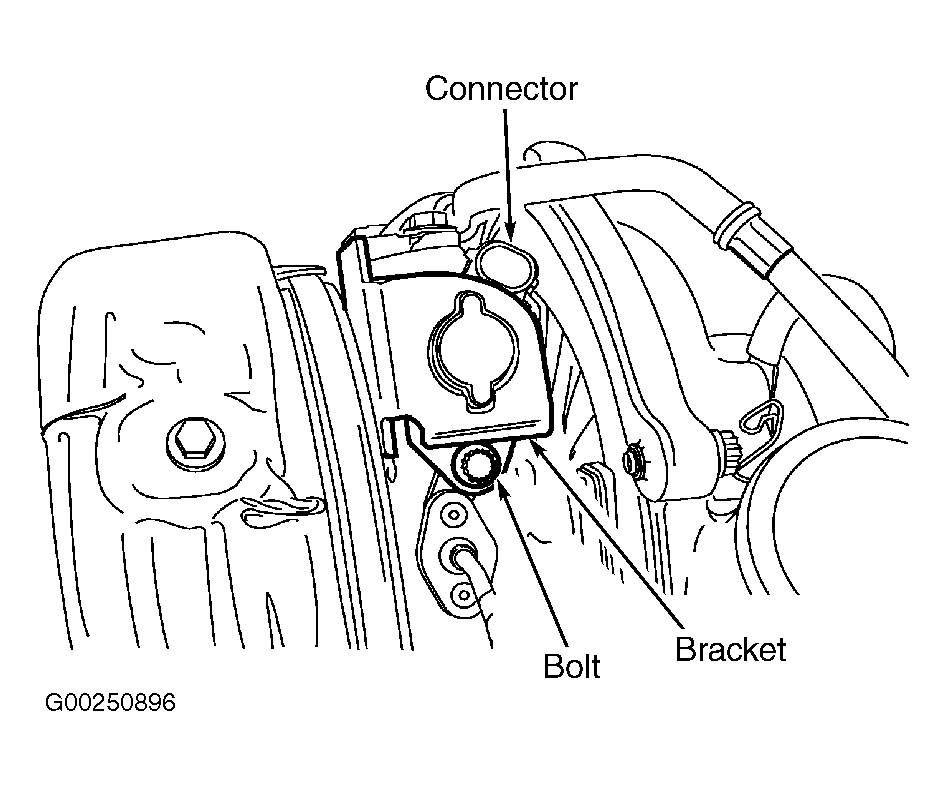

Disconnect turbocharger variable vane hydraulic control valve electrical connector. Remove retaining bolt, bracket and turbocharger variable vane hydraulic control valve. See Fig 1. To install, reverse removal procedure. Lubricate "O" rings with clean engine oil prior to installing.
