Removal & Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable. On vehicles with dual batteries, see DUAL BATTERIES  under MISCELLANEOUS. Raise and support vehicle. Release fuel system pressure. See FUEL SYSTEM PRESSURE RELEASE .
  2. Disconnect fuel pump, fuel warmer and water-in-fuel electrical connectors. See Fig 1.
  3. Remove fuel hose retaining clips and discard. Disconnect fuel hoses from fuel pump. See FUEL LINE CONNECTORS .
  4. Remove mounting nuts and fuel conditioning module. To install, reverse removal procedure. Install NEW fuel line clips. Tighten mounting nuts to specification. See TORQUE SPECIFICATIONS .

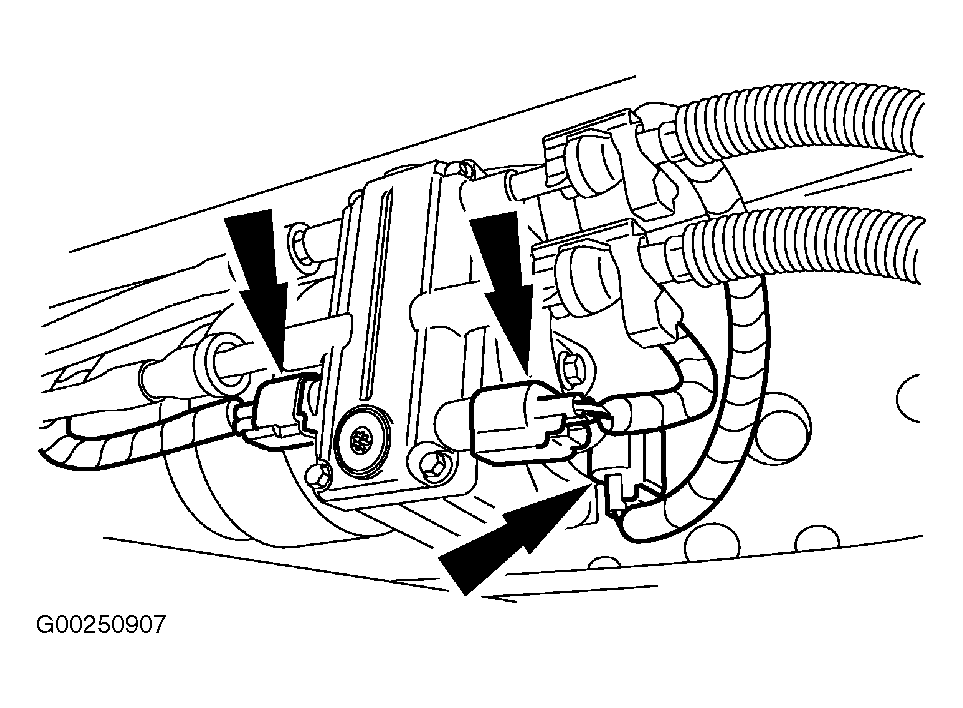

Fig 1: Removing & Installing Horizontal Fuel Conditioning Electrical Connectors
G00250907Courtesy of FORD MOTOR CO.

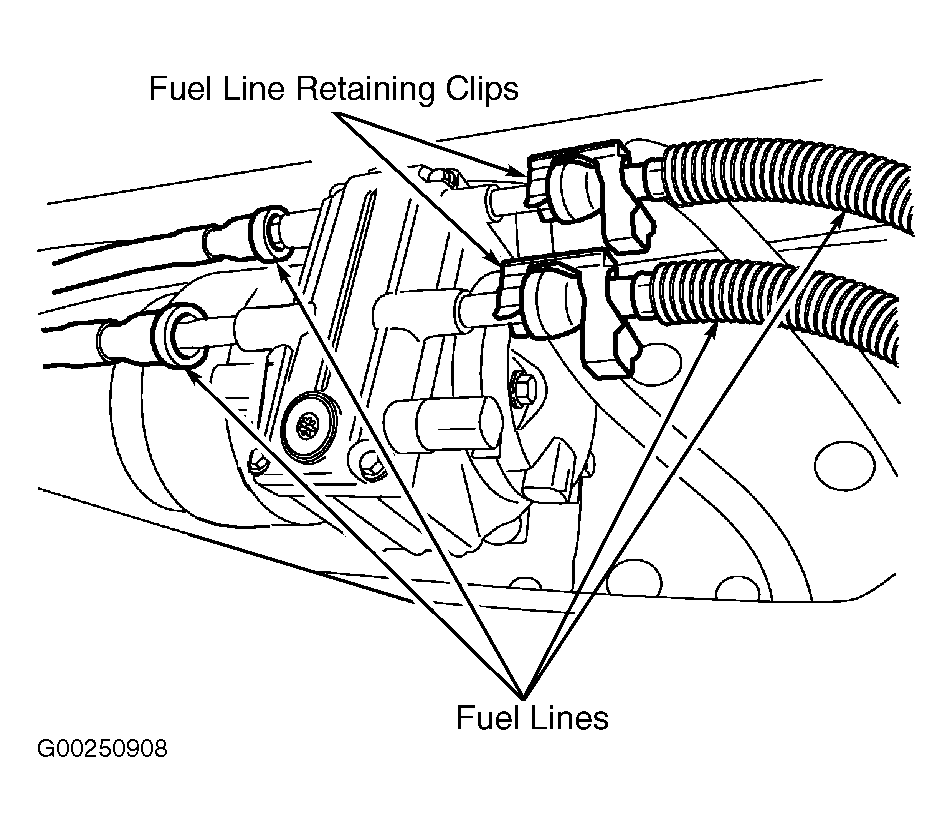

Fig 2: Removing & Installing Horizontal Fuel Conditioning Fuel Lines
G00250908Courtesy of FORD MOTOR CO.
Fig 3: Removing & Installing Horizontal Fuel Conditioning Module
G00250909Courtesy of FORD MOTOR CO.
