Horizontal Fuel Conditioning Module: Disassembly

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

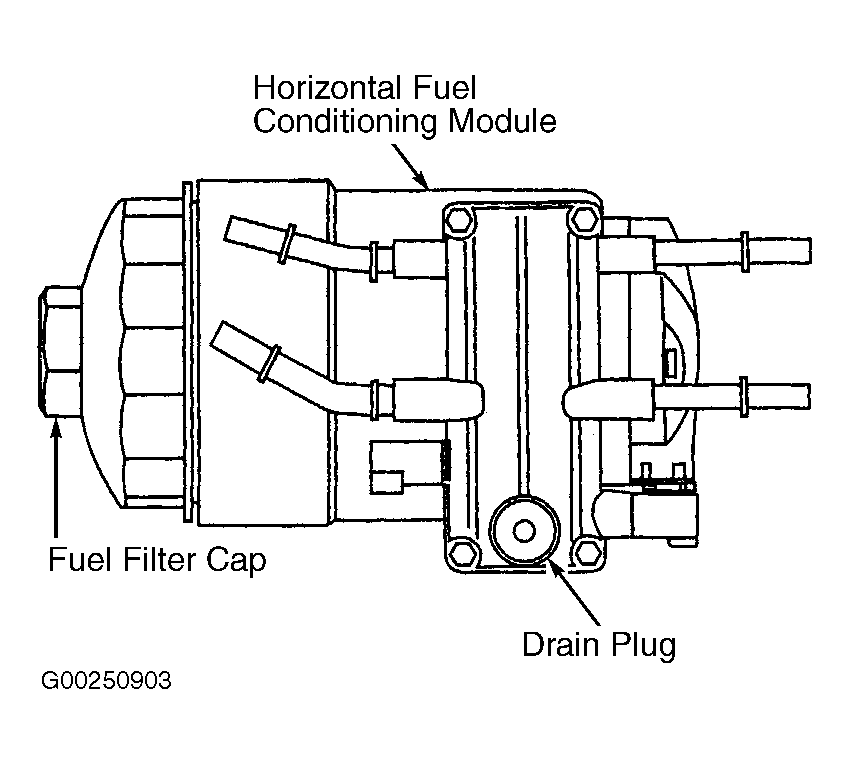

  1. Remove fuel filter cap by turning counterclockwise. Remove fuel filter and discard "O" ring. See Figure.
  2. Remove manifold cover screws and remove cover. See Figure. Remove and discard press-in-place gasket.

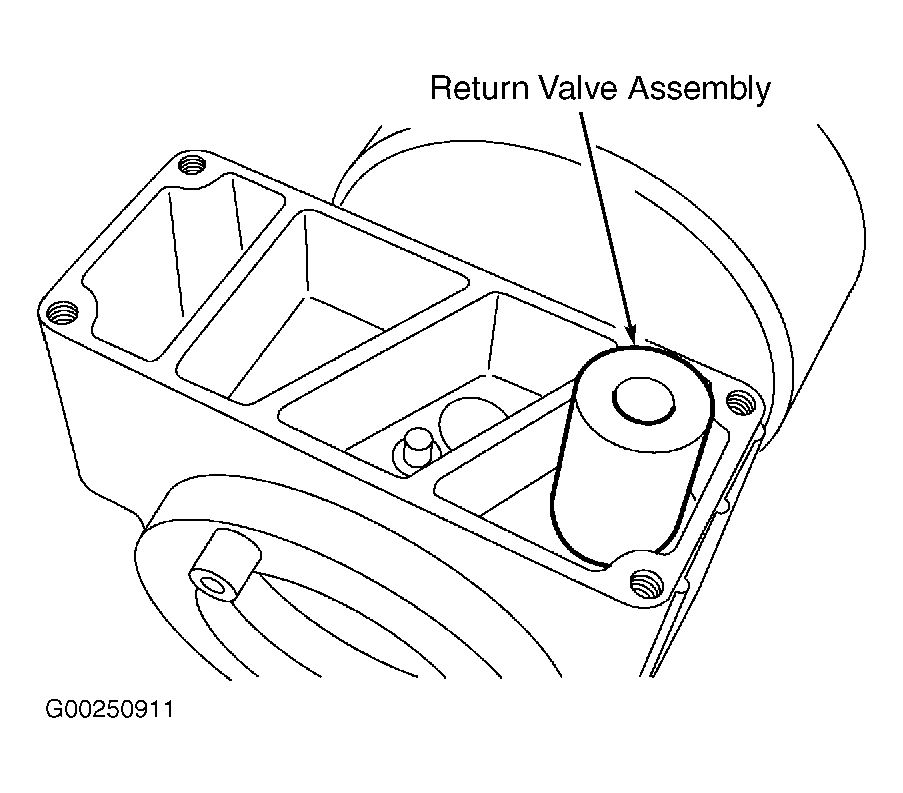

  3. Remove return valve assembly. See Figure.

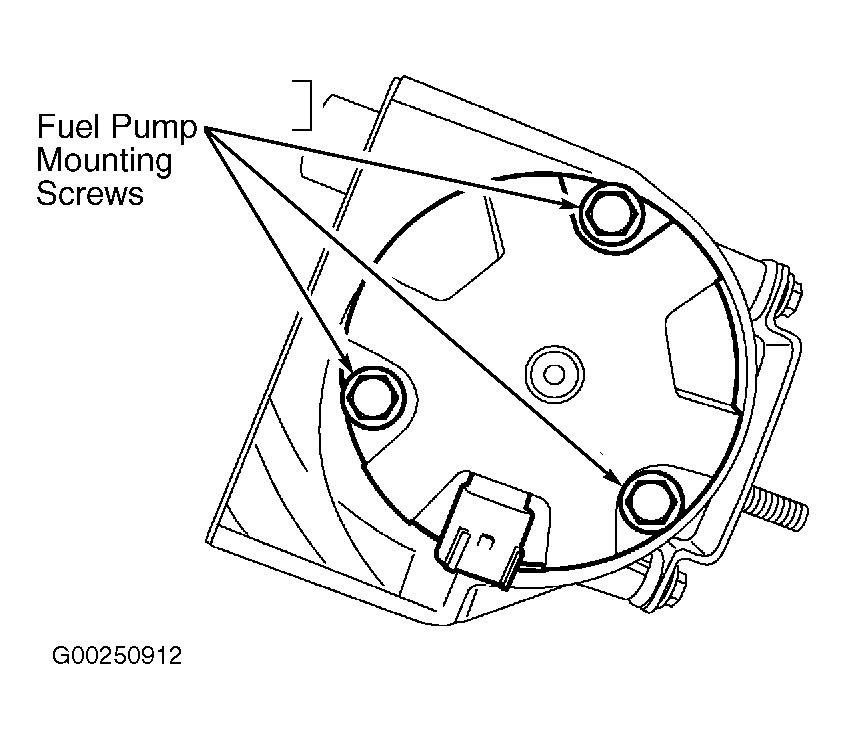

  4. Remove fuel pump mounting screws and remove fuel pump. See Figure. Remove and discard fuel pump "O" rings.

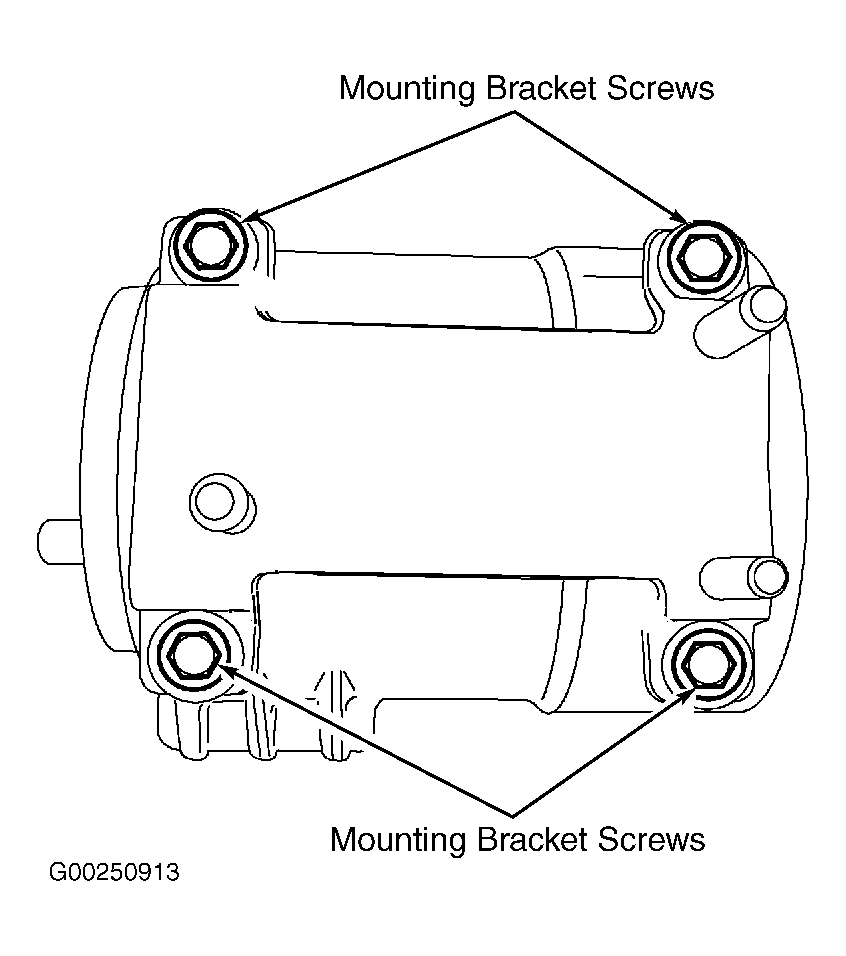

  5. Remove fuel conditioning module mounting bracket screws and remove bracket. See Figure.
