Glow Plug Sleeve: Installing

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify glow plug bore is completely clean and dry. Apply Threadlock® 262 sealant to the glow plug sleeve in 2 places. See Fig 4.
  2. Install glow plug sleeve into glow plug bore until it bottoms. See Fig 5. Clean glow plug sleeve after installation with a nylon brush and solvent. Make sure Threadlock 262® sealant is cleaned out before it hardens.
  3. Install cylinder heads. See appropriate ENGINES article. Install glow plugs. See GLOW PLUGS .
Fig 1: Installing Glow Plug Sleeve Removal Tap
G00252292Courtesy of FORD MOTOR CO.
Fig 2: Removing Glow Plug Sleeve
G00252293Courtesy of FORD MOTOR CO.
Fig 3: Cleaning Glow Plug Bore
G00252294Courtesy of FORD MOTOR CO.
Fig 4: Applying Threadlock 262® Sealant To Glow Plug Sleeve
G00252295Courtesy of FORD MOTOR CO.

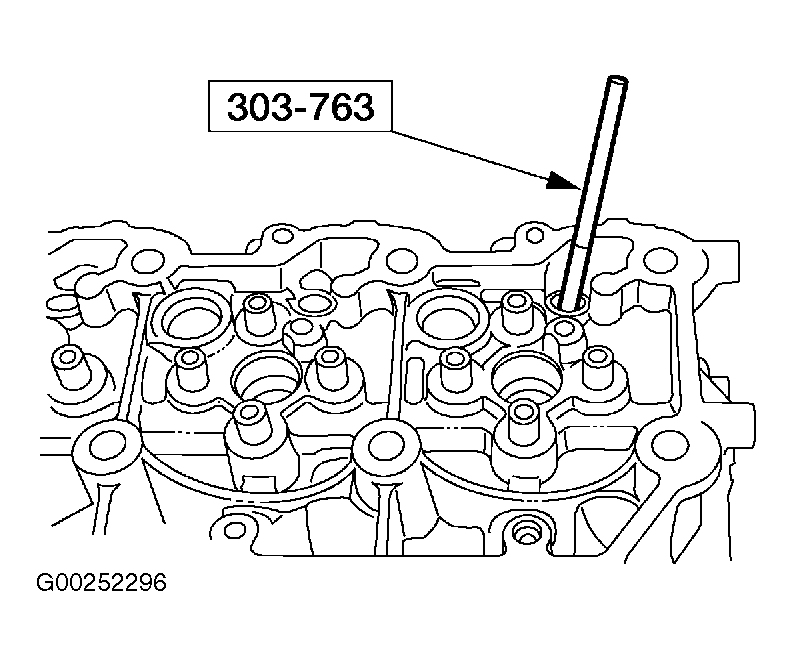

Fig 5: Installing Glow Plug
G00252296Courtesy of FORD MOTOR CO.
