Removal & Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove secondary fuel filter and drain housing. See FUEL FILTERS .
Disconnect fuel return tube from fuel pressure regulator cover. See Fig 1.
Remove fuel pressure regulator cover screws and cover. See Fig 2.
Remove and discard fuel pressure regulator cover "O" ring seal. See Fig 3.
Remove restrictor, spring and poppet valve. See Fig 4.
Clean fuel pressure regulator bore in fuel filter housing. To install, reverse removal procedure. Install NEW "O" ring on fuel pressure regulator cover.

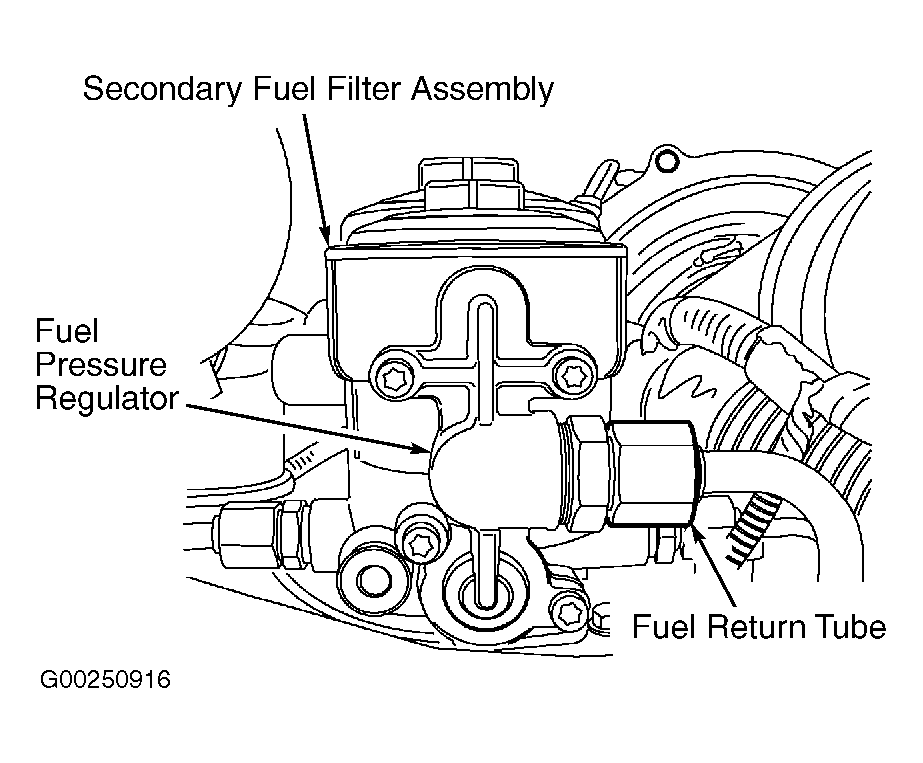

Fig 1: Removing & Installing Fuel Return Tube

Courtesy of FORD MOTOR CO.

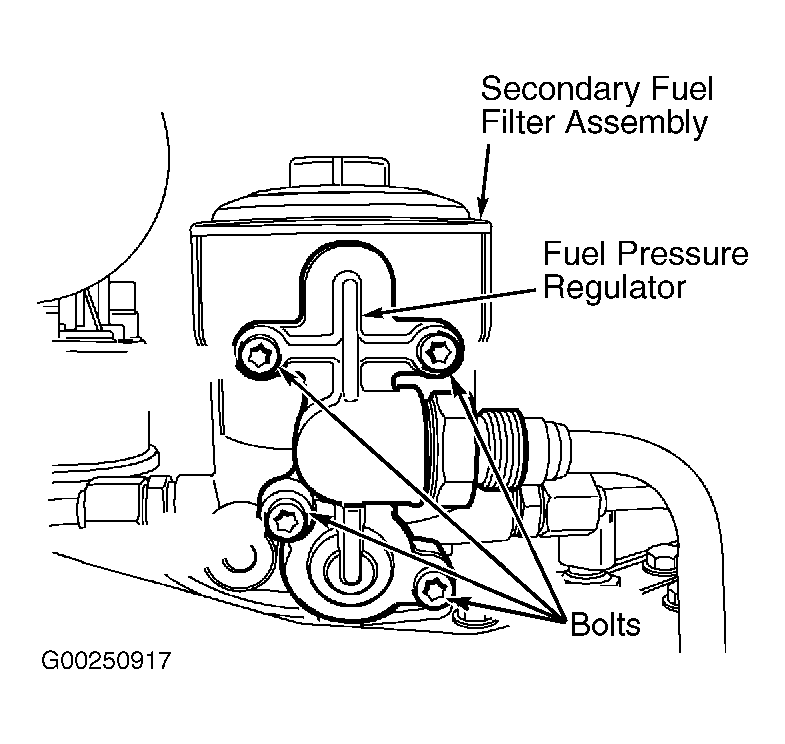

Fig 2: Removing & Installing Fuel Pressure Regulator

Courtesy of FORD MOTOR CO.

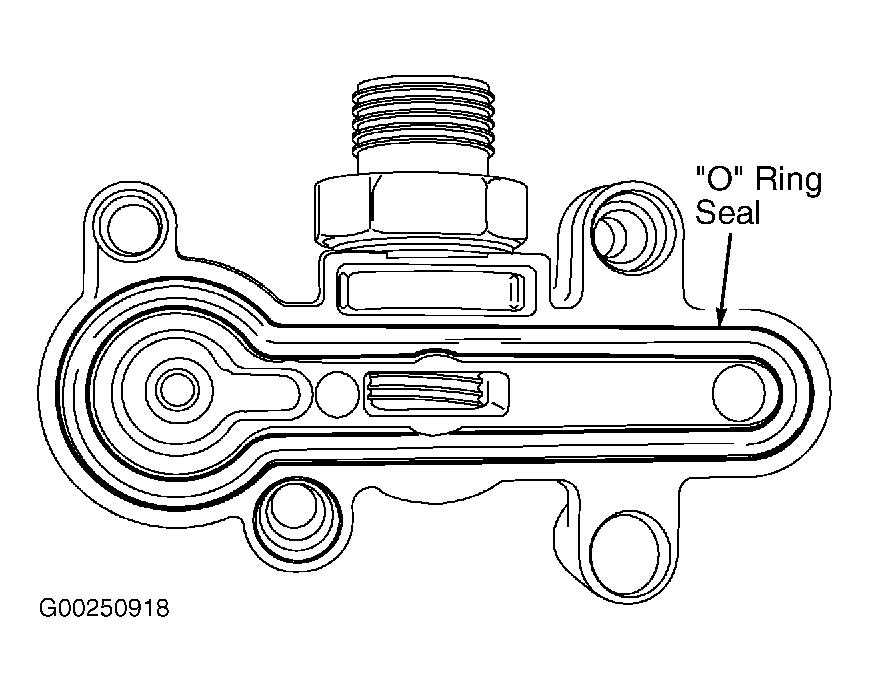

Fig 3: Removing & Installing Fuel Pressure Regulator "O" Ring

Courtesy of FORD MOTOR CO.

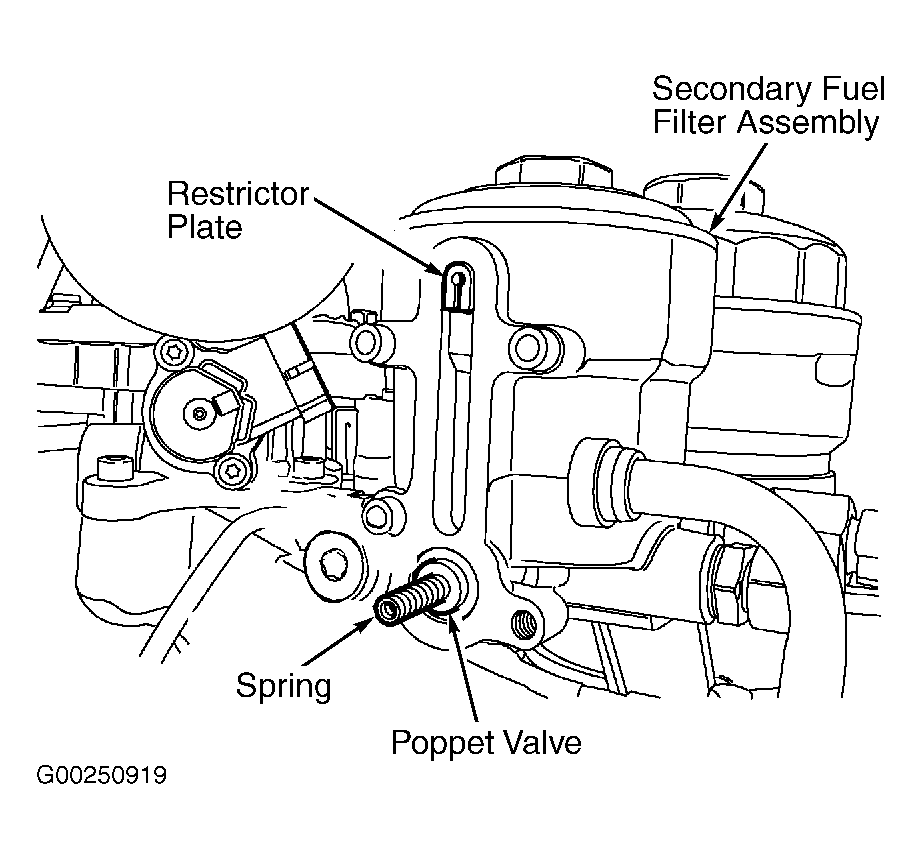

Fig 4: Removing & Installing Fuel Pressure Regulator Components

Courtesy of FORD MOTOR CO.
