Fuel Injector Sleeve: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify fuel injector bore is clean and dry. Position fuel injector sleeve onto Injector Sleeve Installer. Apply Threadlock® 262 to the very bottom (smallest diameter) and very top (largest diameter) flat areas. See Fig 7.
  2. Position fuel injector sleeve into cylinder head fuel injector bore. Seat the fuel injector sleeve in fuel injector bore using a rubber mallet. See Fig 8. If any sealant gets into the inside of the injector sleeve, it must be cleaned out before it hardens.
  3. Install press-in-place gasket to rocker arm carrier and NEW dowels in cylinder head. See Fig 2.
  4. Install rocker arm carrier and bolts. See Fig 1. Tighten rocker arm carrier bolts to specification. See TORQUE SPECIFICATIONS .
  5. Install lifting bracket on cylinder head and install cylinder head. See appropriate ENGINES article.
Fig 1: Removing & Installing Rocker Arm Carrier
G00252281Courtesy of FORD MOTOR CO.
Fig 2: Removing & Installing Press-In-Place Rocker Arm Carrier Gasket
G00252288Courtesy of FORD MOTOR CO.
Fig 3: Installing Fuel Injector Sleeve Tap
G00252282Courtesy of FORD MOTOR CO.
Fig 4: Removing Fuel Injector Sleeve
G00252283Courtesy of FORD MOTOR CO.
Fig 5: Cleaning Fuel Injector Bore
G00252284Courtesy of FORD MOTOR CO.
Fig 6: Cleaning Fuel Gallery
G00252285Courtesy of FORD MOTOR CO.
Fig 7: Applying Threadlock® 262 Sealant To Fuel Injector Sleeve
G00252286Courtesy of FORD MOTOR CO.

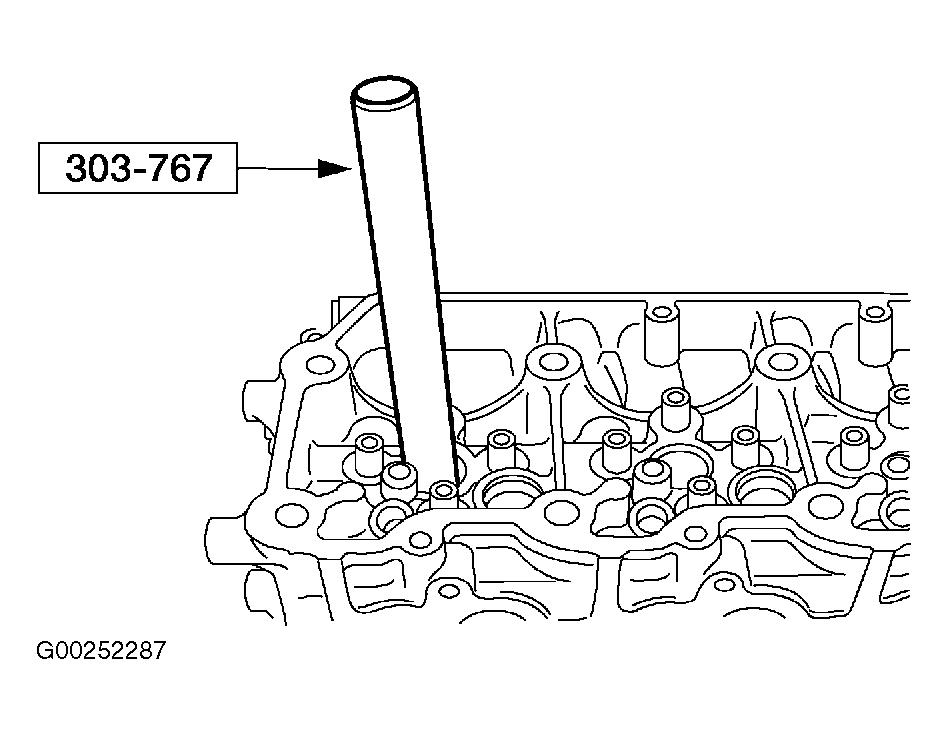

Fig 8: Installing Fuel Injector Sleeve
G00252287Courtesy of FORD MOTOR CO.
