Exhaust Gas RECIRCULATION Valve: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Install NEW "O" rings and lubricate with clean engine oil. See Fig 4. Install EGR valve and bolts. Tighten EGR valve bolts to specification. See TORQUE SPECIFICATIONS .
Install throttle plate adapter and bolts. See Fig 2. Tighten bolts to specification. See TORQUE SPECIFICATIONS .
Install intake adapter and charge air cooler tube. Connect EGR valve electrical connector. See Fig 1. Tighten bolts to specification. See TORQUE SPECIFICATIONS .

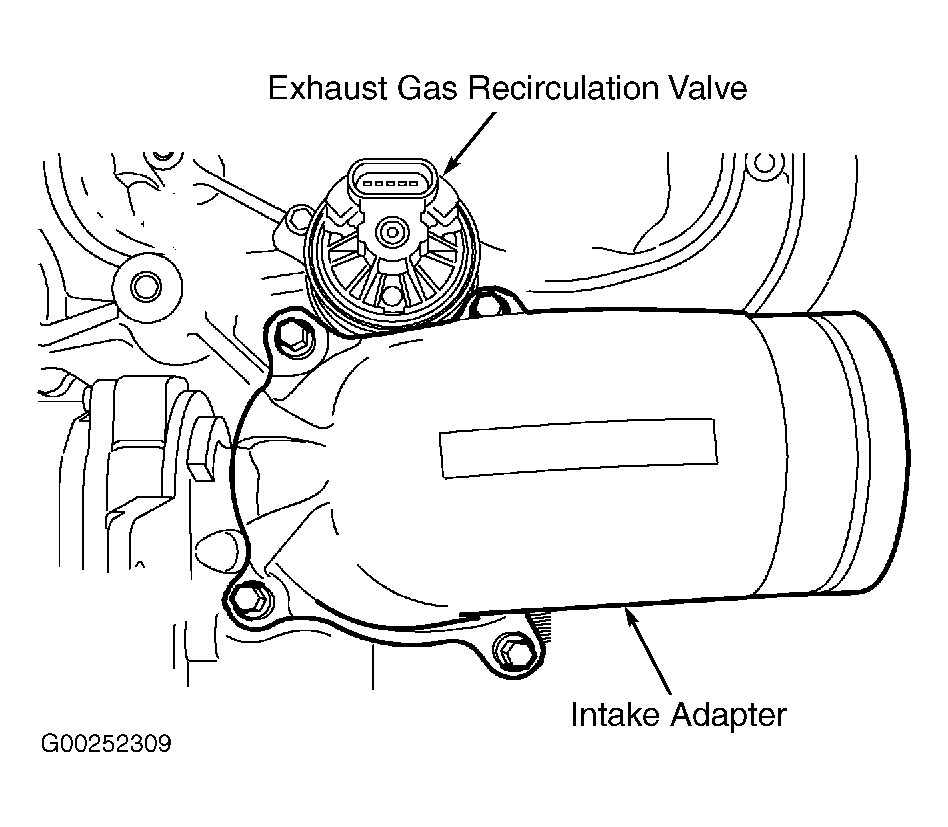

Fig 1: Removing & Installing Intake Adapter

Courtesy of FORD MOTOR CO.

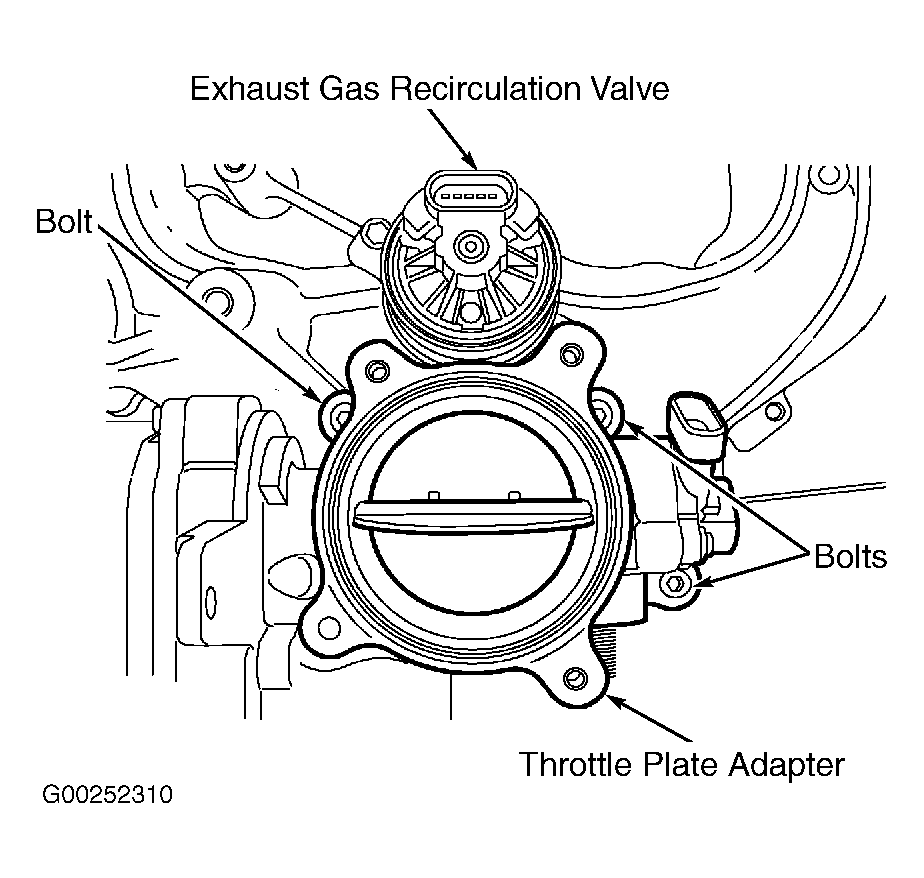

Fig 2: Removing & Installing Throttle Plate Adapter

Courtesy of FORD MOTOR CO.

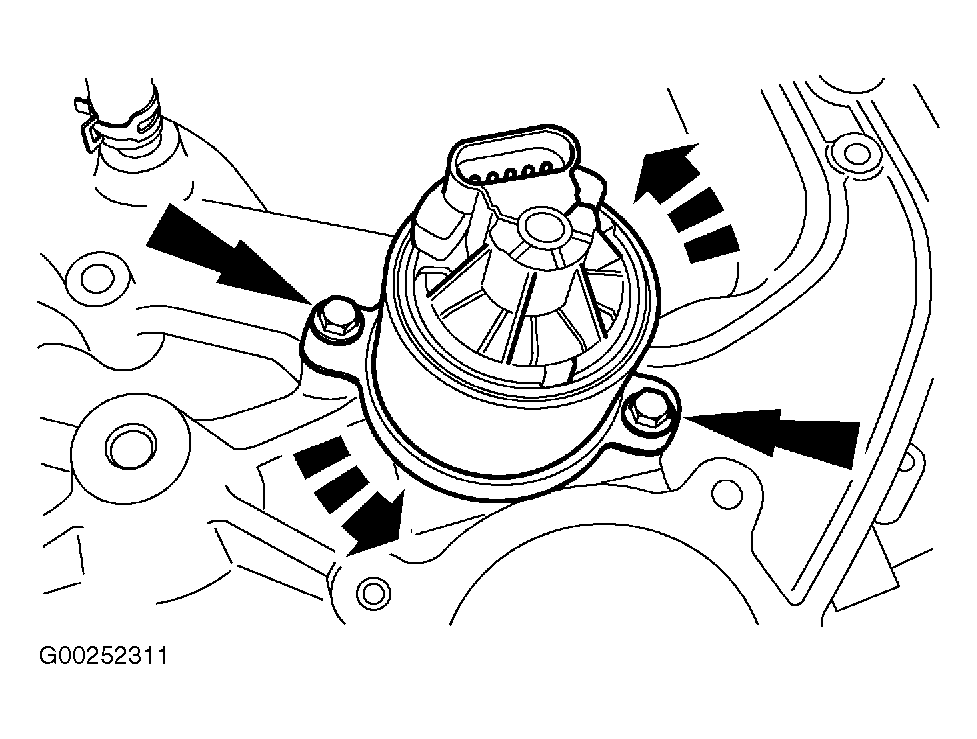

Fig 3: Rotating Exhaust Gas Recirculation Valve

Courtesy of FORD MOTOR CO.

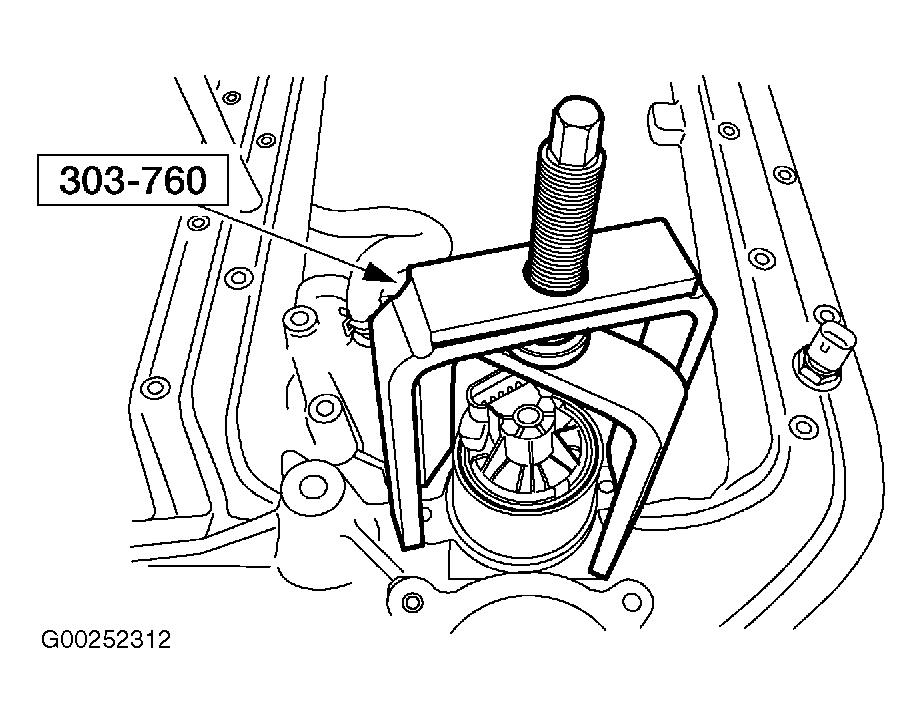

Fig 4: Removing & Installing Exhaust Gas Recirculation Valve

Courtesy of FORD MOTOR CO.

Fig 5: Removing & Installing Exhaust Gas Recirculation Valve "O" Rings

Courtesy of FORD MOTOR CO.
