Exhaust Gas RECIRCULATION Cooler
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

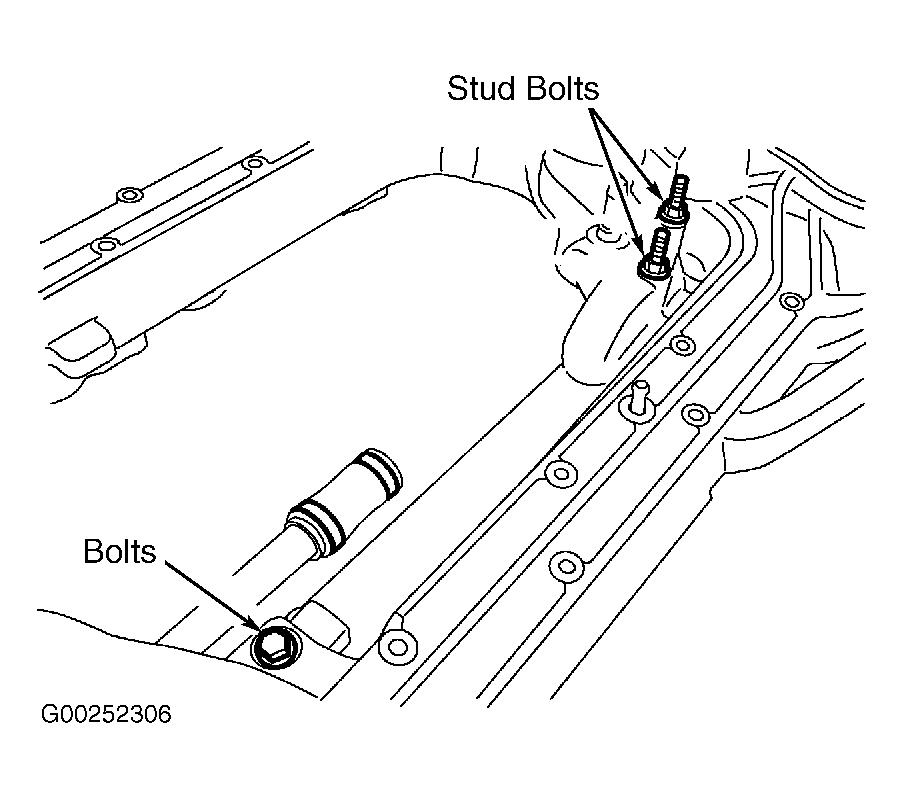

Remove intake manifold. See appropriate ENGINES article. Remove stud bolts and bolt. See Fig 1. Separate Exhaust Gas Recirculation (EGR) cooler from intake manifold. Remove and discard gasket and "O" ring. To install, reverse removal procedure. Tighten stud bolts and bolt to specification. See TORQUE SPECIFICATIONS . Install NEW "O" ring and gasket to EGR cooler. See Fig 2.
