Removal & Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable.
  2. On vehicles with dual batteries, see DUAL BATTERIES  under MISCELLANEOUS. Remove left battery.
  3. Disconnect Powertrain Control Module (PCM) connectors. Remove PCM mounting bolts and remove PCM. See Fig 1.
  4. To install, reverse removal procedure.
  5. Tighten PCM mounting bolts to specification. See TORQUE SPECIFICATIONS .

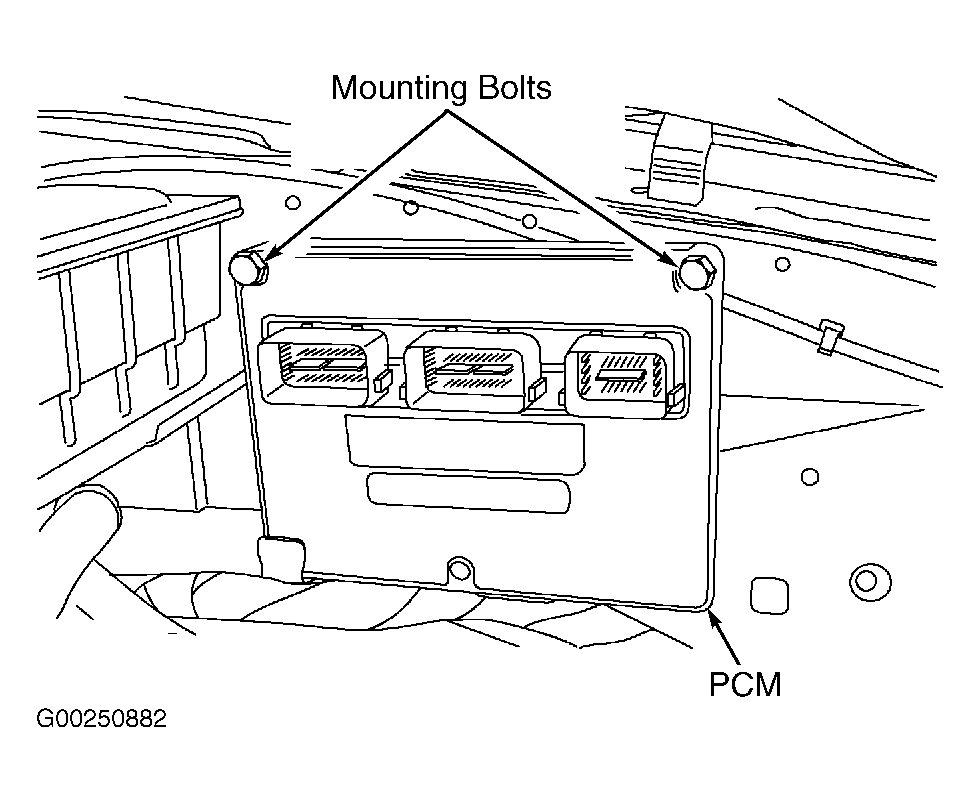

Fig 1: Removing & Installing PCM
G00250882Courtesy of FORD MOTOR CO.
