Removal & Installation
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Injector Driver Module (IDM) may be referred to as fuel injector control module.

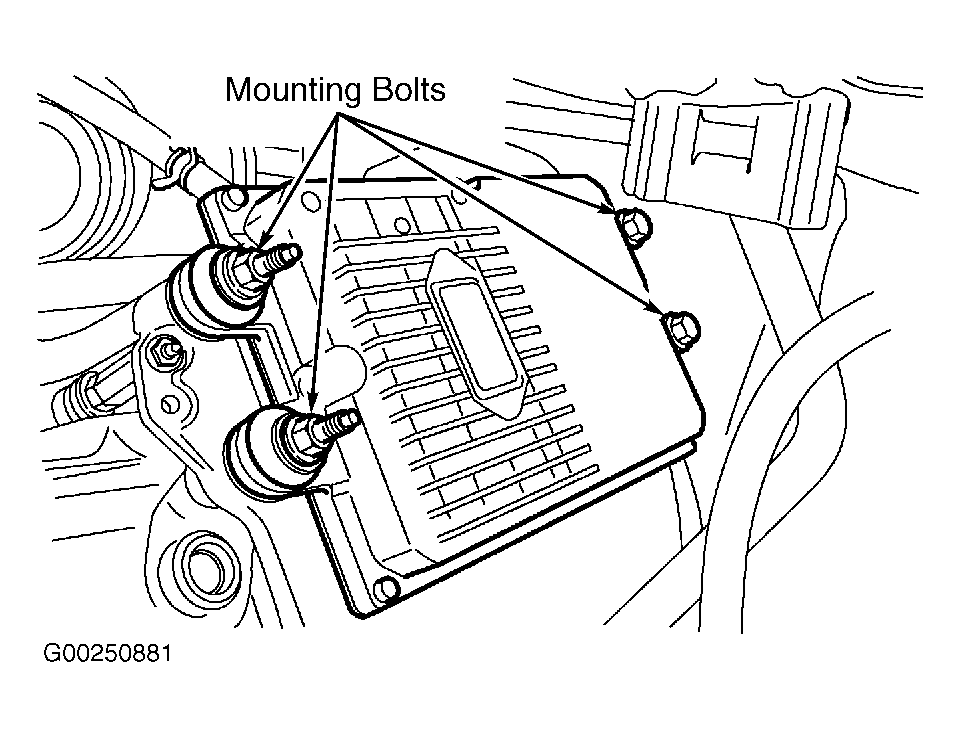

Turn ignition switch to OFF position. Remove turbocharger intake tube. See TURBOCHARGER INTAKE TUBE . Remove IDM retaining bolts. Position IDM out and unplug IDM harness connectors. Remove IDM. See Fig 1. To install, reverse removal procedure. Tighten IDM bolts to specification. See TORQUE SPECIFICATIONS .
