Removal & Installation
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

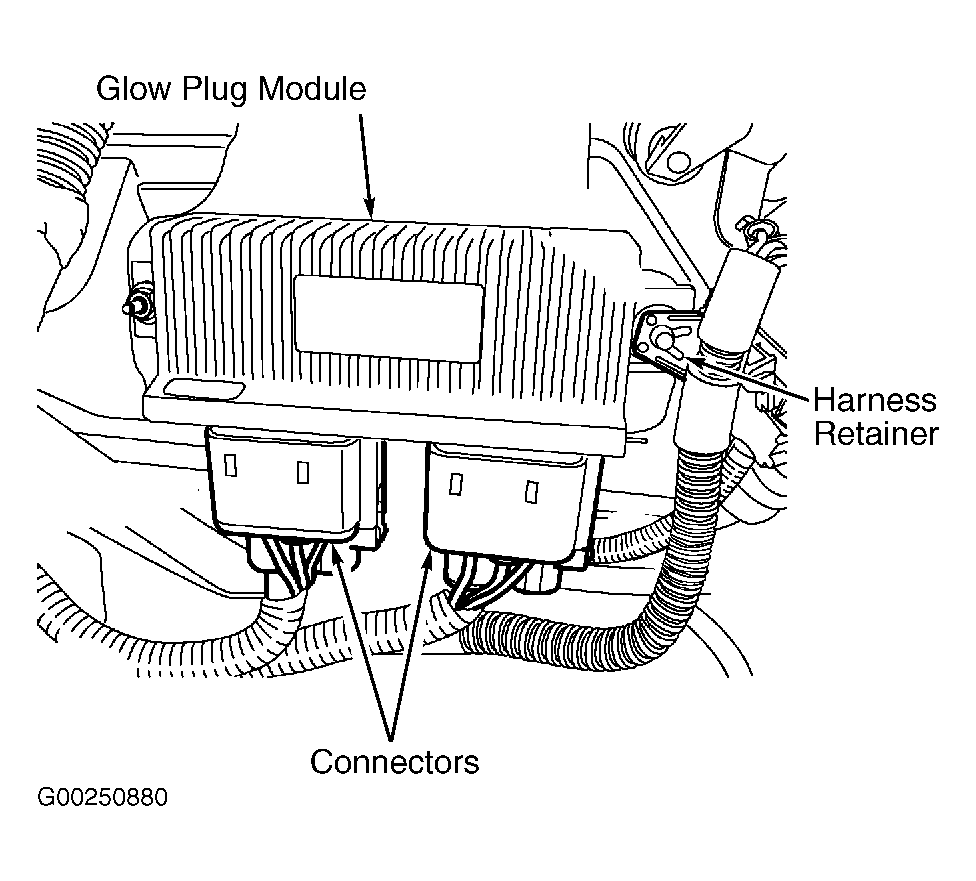

Disconnect negative battery cable. On vehicles with dual batteries, see DUAL BATTERIES under MISCELLANEOUS. Disconnect electrical connectors from glow plug module, remove glow plug module retaining nuts and remove module. See Fig 1. To install, reverse removal procedure. Tighten glow plug module retaining nuts to specification. See TORQUE SPECIFICATIONS .
