Removal & Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove turbocharger. See TURBOCHARGER . Remove turbocharger pedestal bolts and remove pedestal. See Fig 1. To install, reverse removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS .

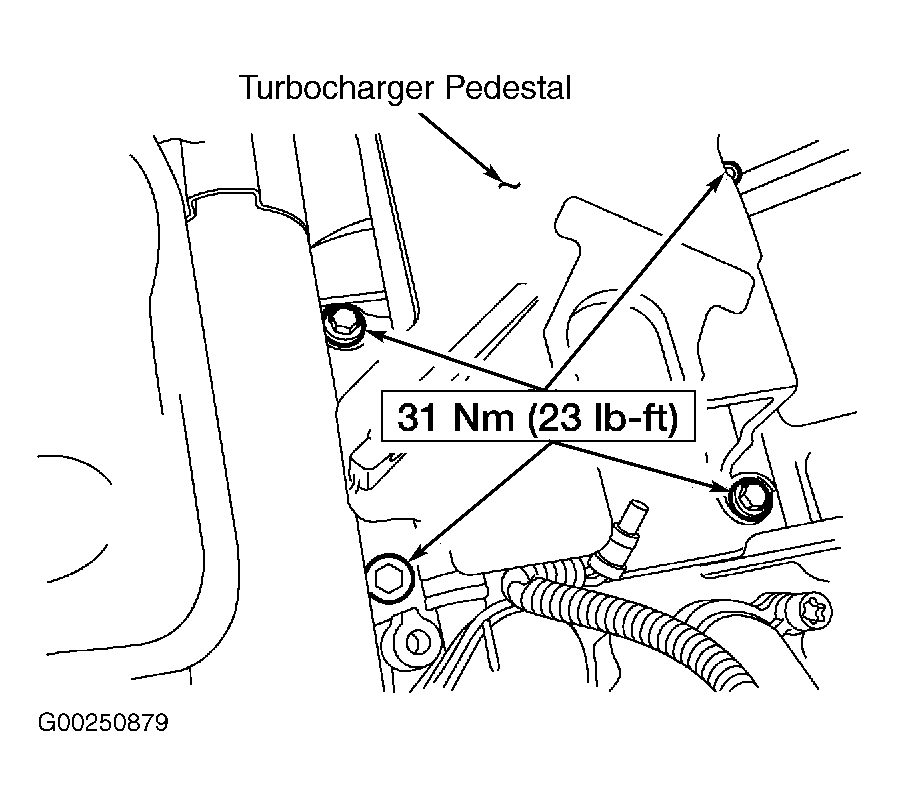

Fig 1: Removing & Installing Turbocharger Pedestal
G00250879Courtesy of FORD MOTOR CO.
