Removal & Installation
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

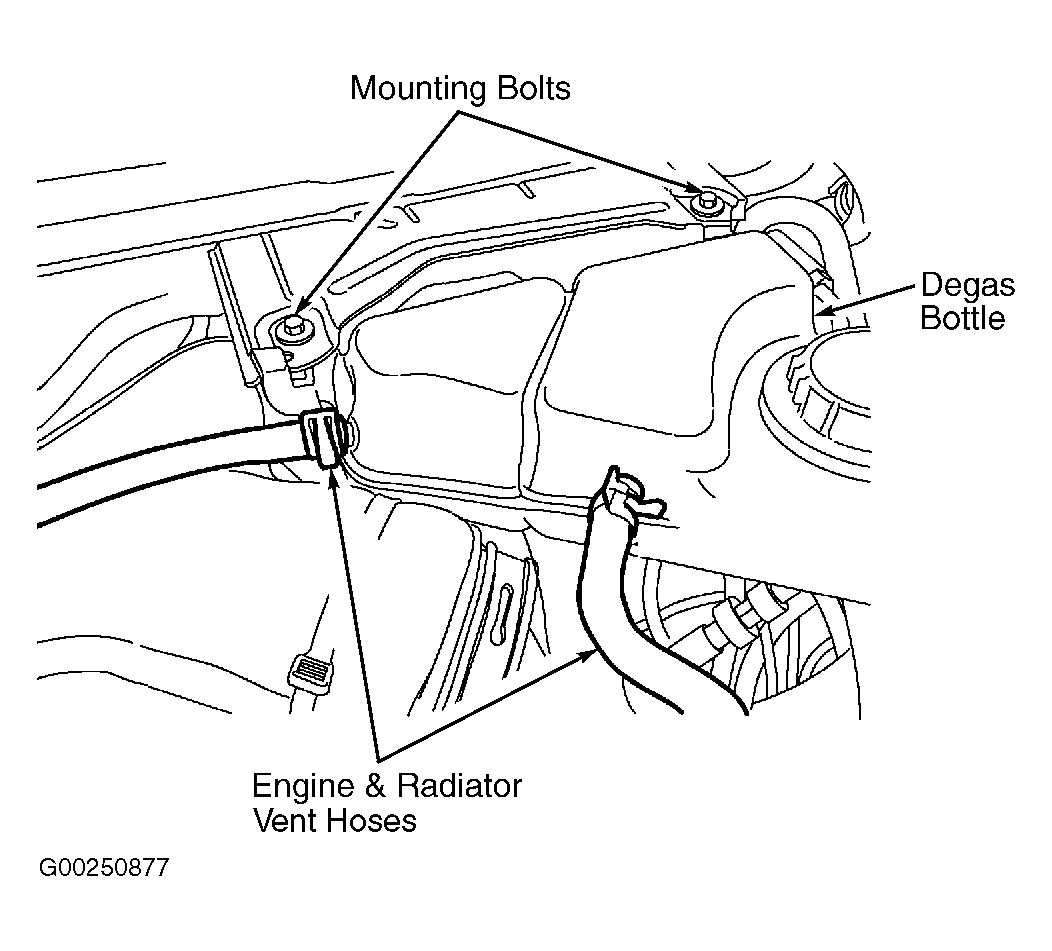

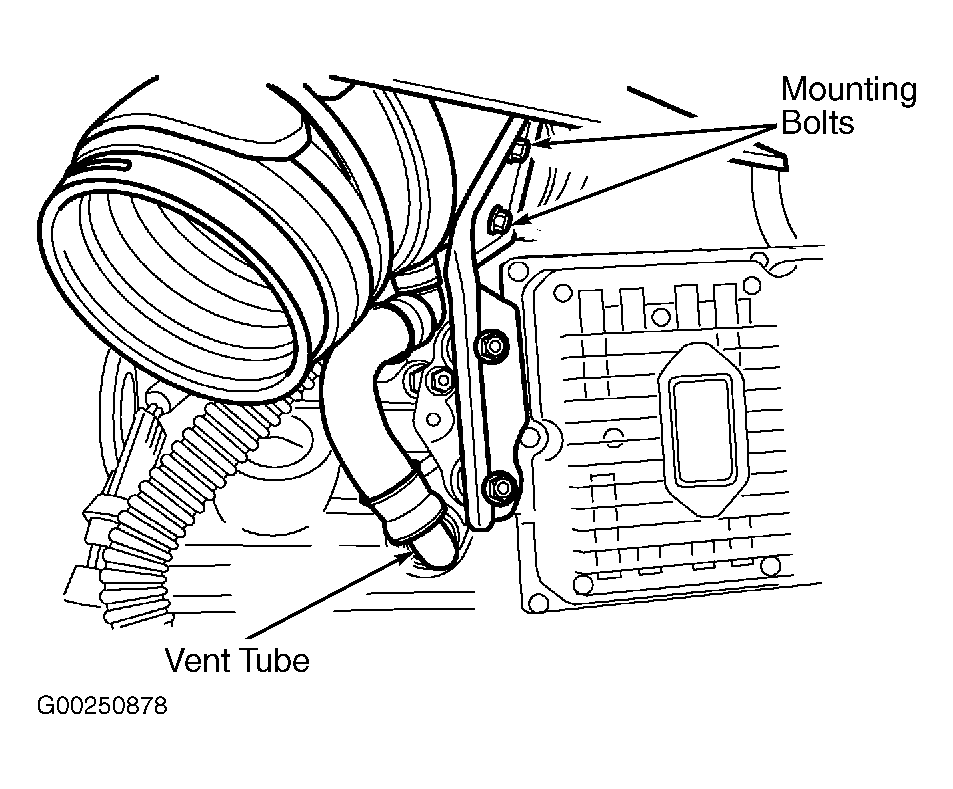

Remove air cleaner. See AIR CLEANER . Disconnect and plug engine and radiator vent hoses from the degas bottle. Remove bolts and position degas bottle aside. See Fig 1. Loosen intake tube clamp at turbocharger and remove bolts from intake tube support bracket. See Fig 2. Remove turbocharger intake tube. To install, reverse removal procedure.
