Knock Sensor
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

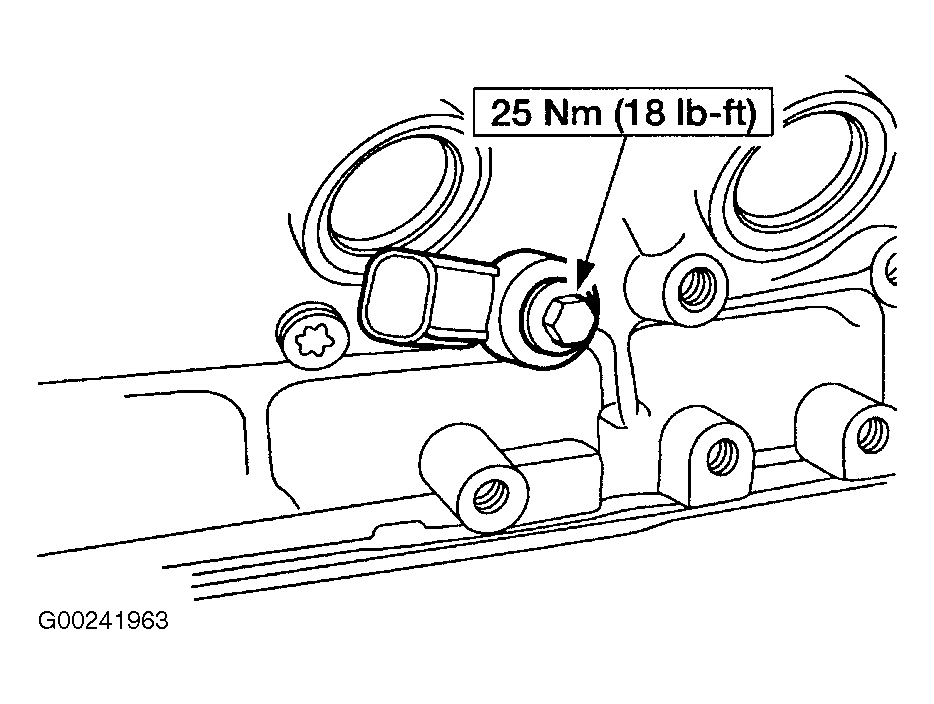

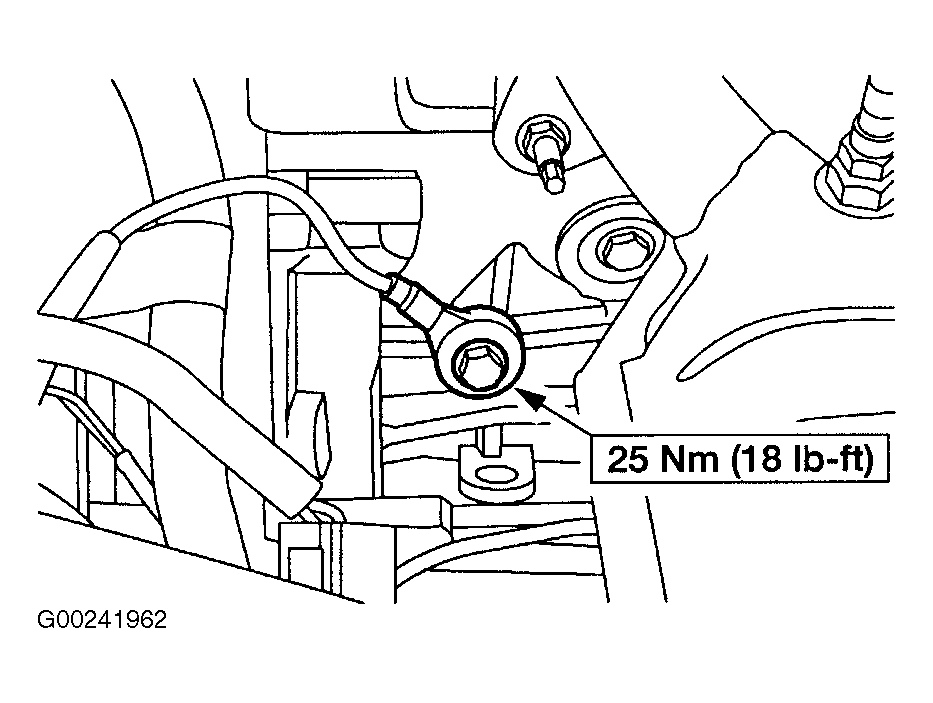

On 3.0L 2V engines, KS is located on right side of engine just above oil pan. See Fig 1. On 3.0L 4V engines, Knock Sensor (KS) is on right side rear of engine, near bellhousing. See Fig 2. Disconnect negative battery cable. Raise and support vehicle. Disconnect KS connector. Remove KS bolt and KS. To install, reverse removal procedure. Tighten KS bolt to specification. See TORQUE SPECIFICATIONS .
