Removal & Installation
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

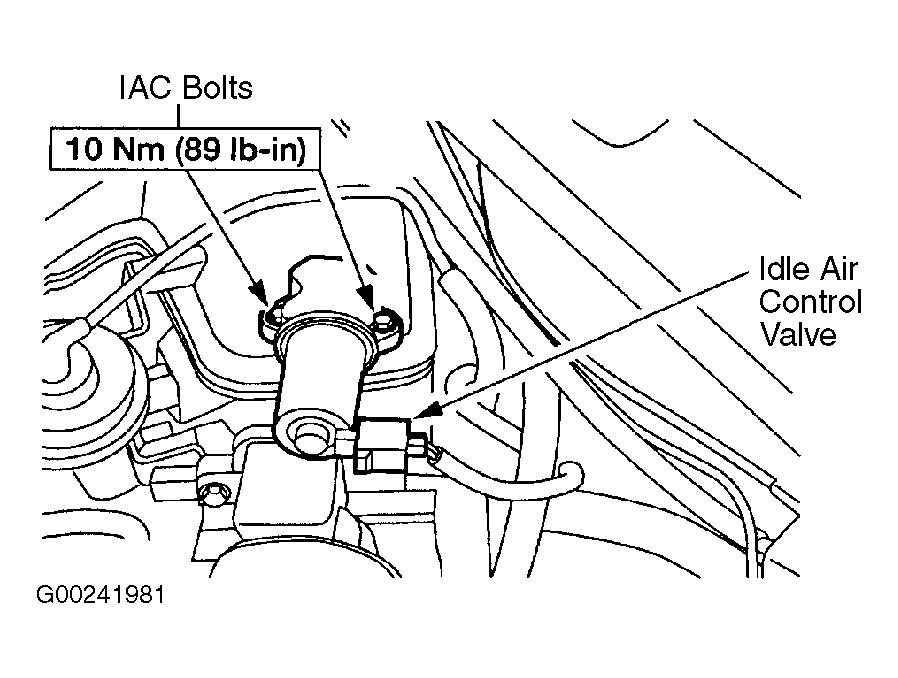

Disconnect negative battery cable. Disconnect Idle Air Control (IAC) valve harness connector. Remove bolts from IAC valve and remove IAC valve. See Fig 1. Clean gasket mating surfaces. Replace IAC valve gasket as necessary. To install, reverse removal procedure. Tighten IAC valve bolts to specification. See TORQUE SPECIFICATIONS .
