EGR Vacuum Regulator Solenoid
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

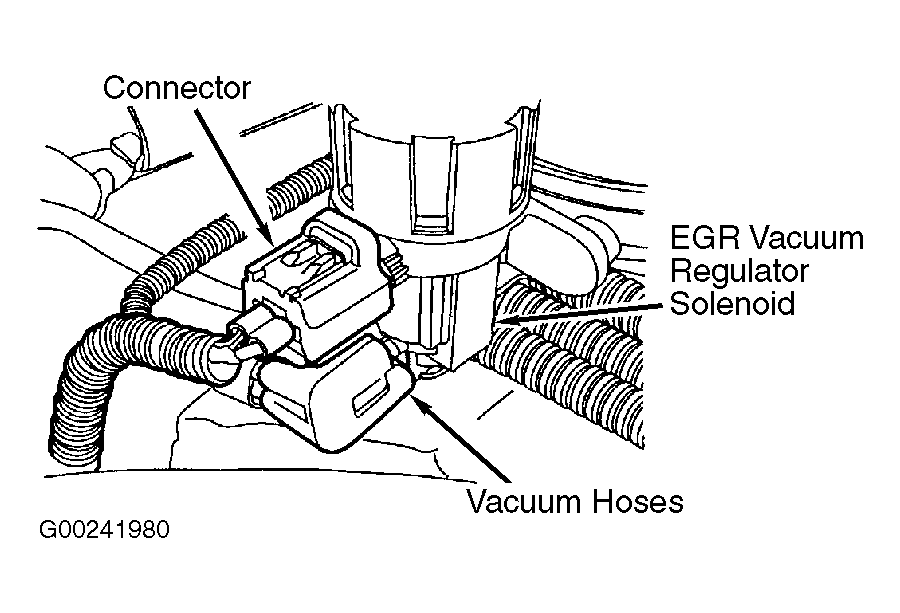

Disconnect negative battery cable. Disconnect Exhaust Gas Recirculation (EGR) vacuum regulator solenoid electrical connector and vacuum hoses. Remove bolts/nuts and remove EGR vacuum regulator solenoid. See Fig 1. To install, reverse removal procedure. Tighten bolts/nuts to specification. See TORQUE SPECIFICATIONS .
