Removal & Installation (3.0L 2V)
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
DO NOT pull on spark plug wire as it may separate from spark plug wire connector inside spark plug wire boot. Remove spark plug wires by slightly twisting while pulling upward.

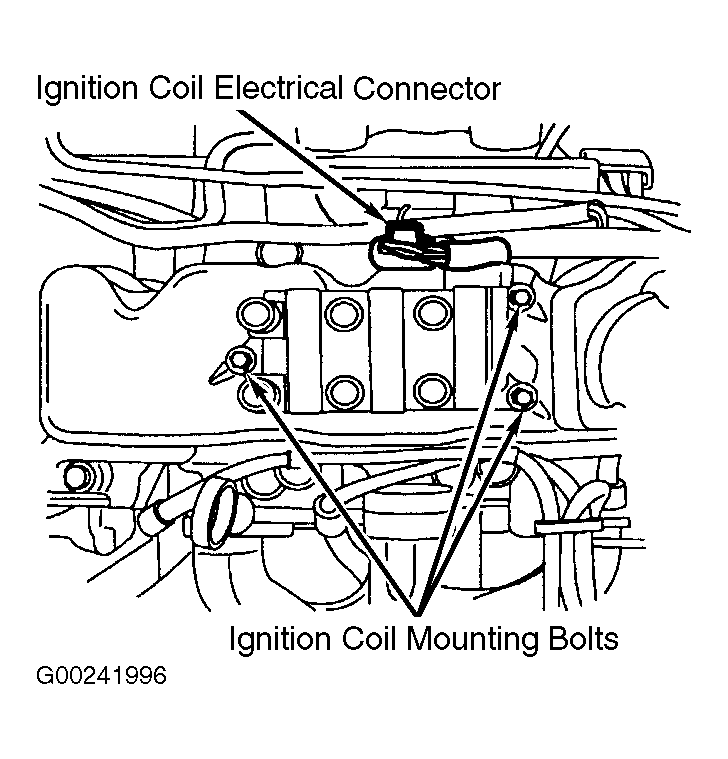

Noting spark plug wire position, remove spark plug wires by slightly twisting while pulling upward and disconnect ignition coil connector. Remove 3 coil mounting bolts and remove ignition coil. See Fig 1. To install, reverse removal procedure. Ensure spark plug wire position noted during removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS .
