Secondary Air Valve (3.0L 2V - Flex-Fuel)
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

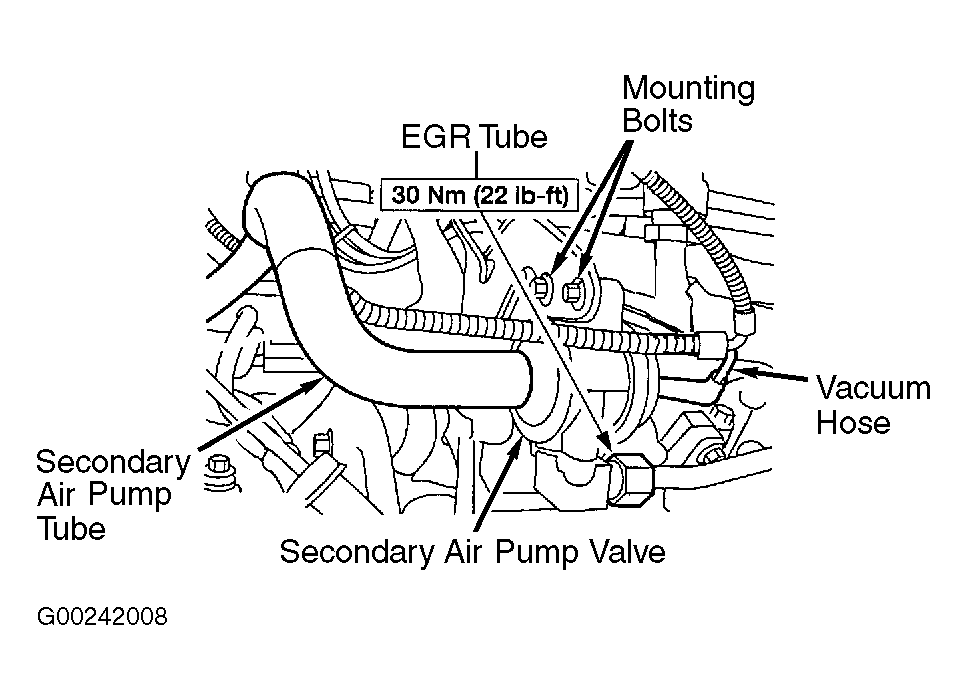

Disconnect secondary air valve, EGR tube, vacuum line and air pump tube. Remove retaining bolts and remove valve from vehicle. See Fig 1. To install, reverse removal procedure. Tighten secondary AIR valve mounting bolts and EGR tube to specification. See TORQUE SPECIFICATIONS .
