Removal & Installation (3.0L 4V)

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove hoses, loosen clamps and remove air cleaner outlet tube. Remove pin-type retainers and remove accelerator cable splash shield. See Figure.

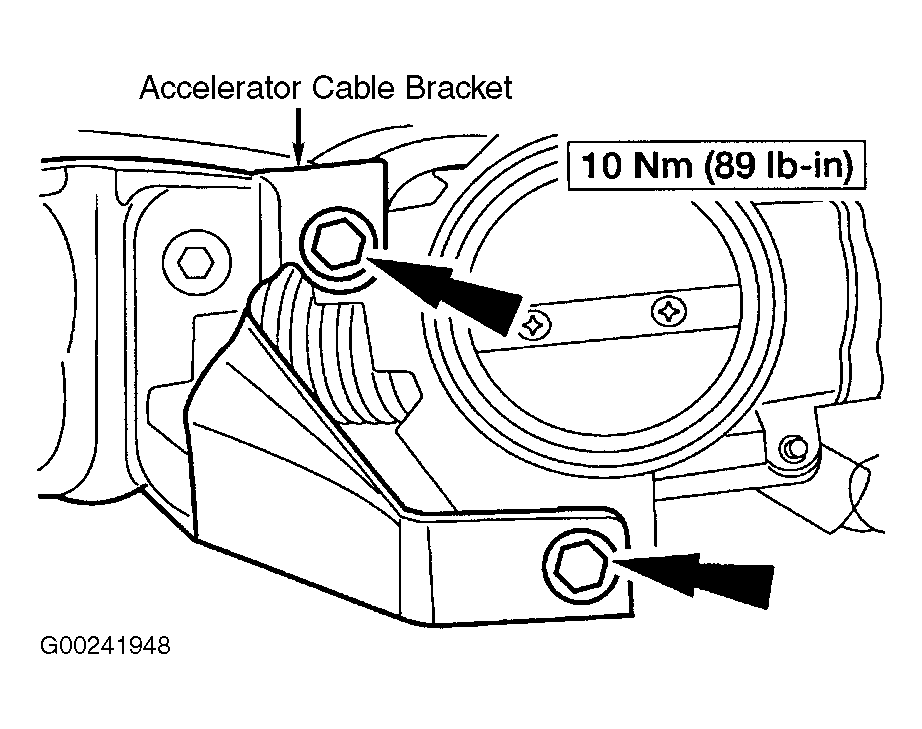

  2. Disconnect throttle cable and cruise control cable. See Figure. Remove bolts and the throttle cable mounting bracket. See Figure.
  3. Remove pushpin and position engine wiring harness out of the way. Disconnect PCV hose at intake manifold and remove. See Fig 1.
  4. Remove PCV valve by rotating valve 180 degrees and remove PCV valve from oil separator. See Fig 2. To install, reverse removal procedure. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS .

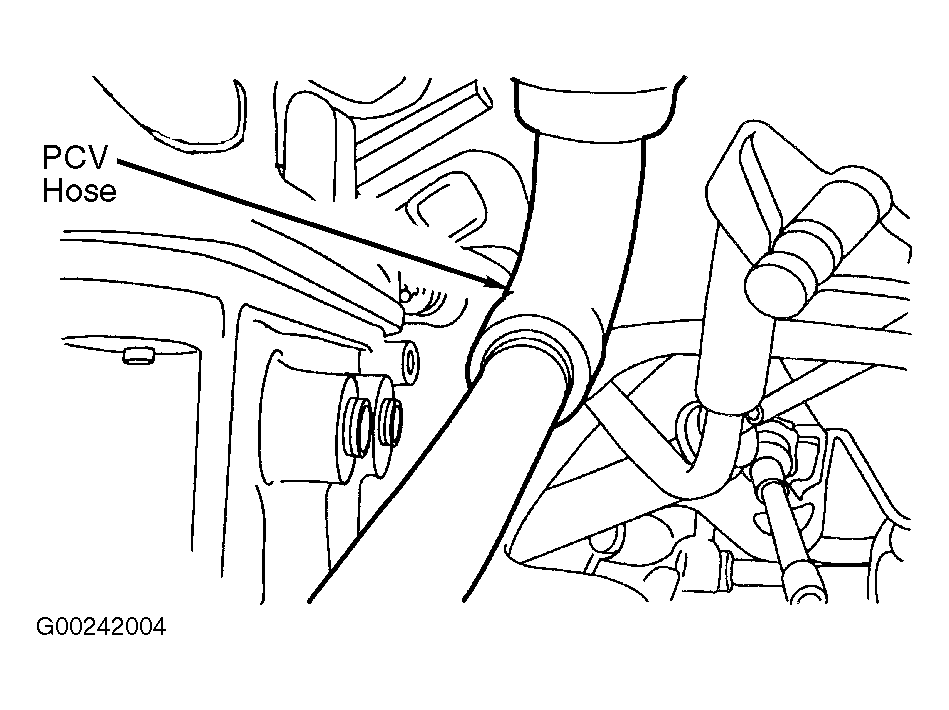

Fig 1: Removing & Installing PCV Hose At Intake Manifold (3.0L 4V)
G00242004Courtesy of FORD MOTOR CO.

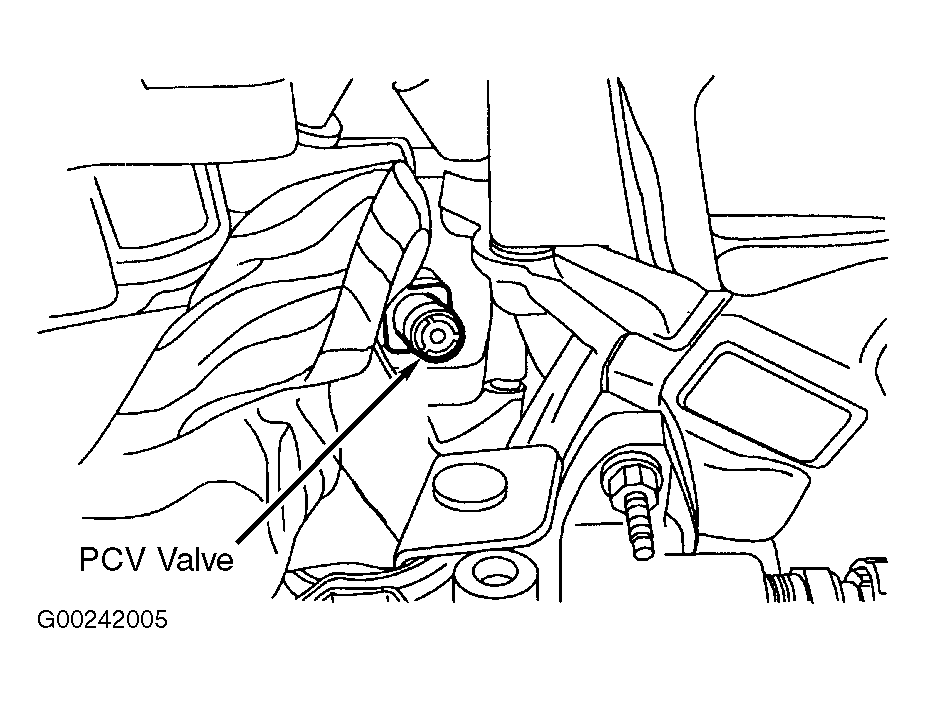

Fig 2: Removing & Installing PCV Valve (3.0L 4V)
G00242005Courtesy of FORD MOTOR CO.
