Removal & Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

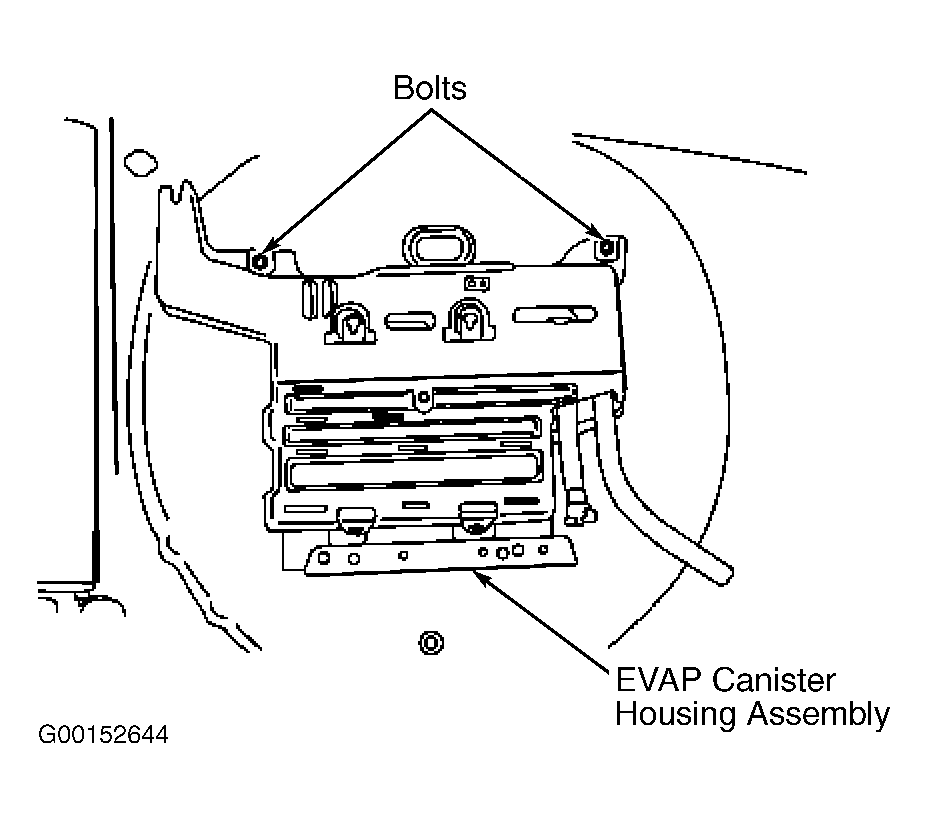

  1. Disconnect negative battery cable. Raise and support vehicle. Disconnect EVAP canister tube and EVAP canister purge outlet tube from EVAP tubes. See Figure. Disconnect canister vent solenoid electrical connector. Remove nuts and EVAP canister housing assembly from vehicle. See Figure. Disconnect canister vent solenoid and EVAP canister inlet and outlet tubes. See FUEL VAPOR LINE CONNECTORS . Remove EVAP canisters from EVAP canister bracket.
  2. To install, reverse removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS . Ensure EVAP system does not leak. Perform after repair procedure. See AFTER REPAIR PROCEDURE .
