Removal & Installation

WARNING: This page is about a different car, the 2002 Lincoln Blackwood. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove battery and battery tray bracket. Disconnect A/C vacuum tank hose from A/C vacuum reservoir tank and bracket. See Fig 1. Remove screw and A/C vacuum reservoir tank and bracket.
  2. To install, reverse removal procedure. When positioning A/C vacuum reservoir tank, make sure that bottom locator and 2 top tabs align with battery tray. Check system for proper operation.

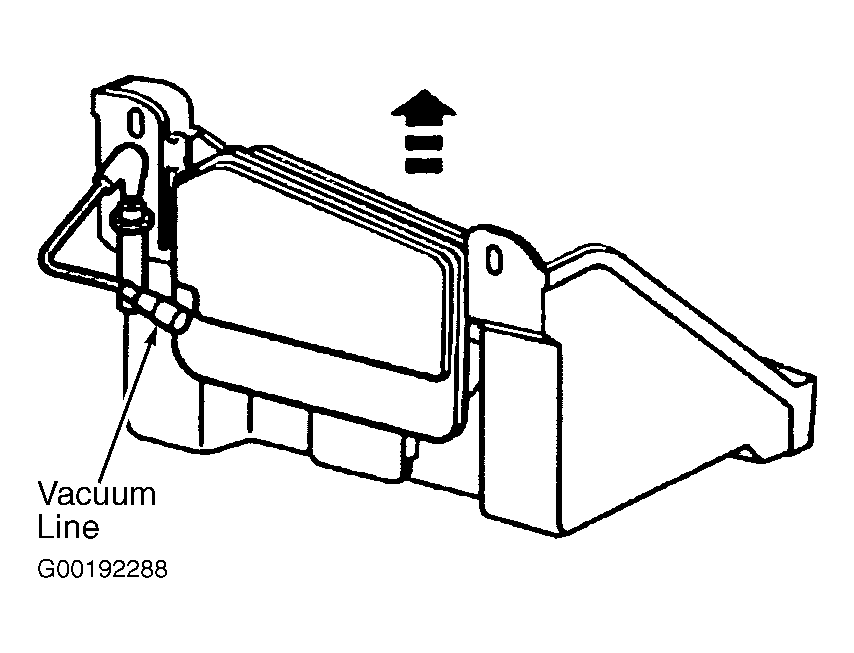

Fig 1: Removing & Installing Vacuum Reservoir Tank & Bracket
G00192288Courtesy of FORD MOTOR CO.
