Removal & Installation
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Numbers in parenthesis refer to numbers in illustrations.

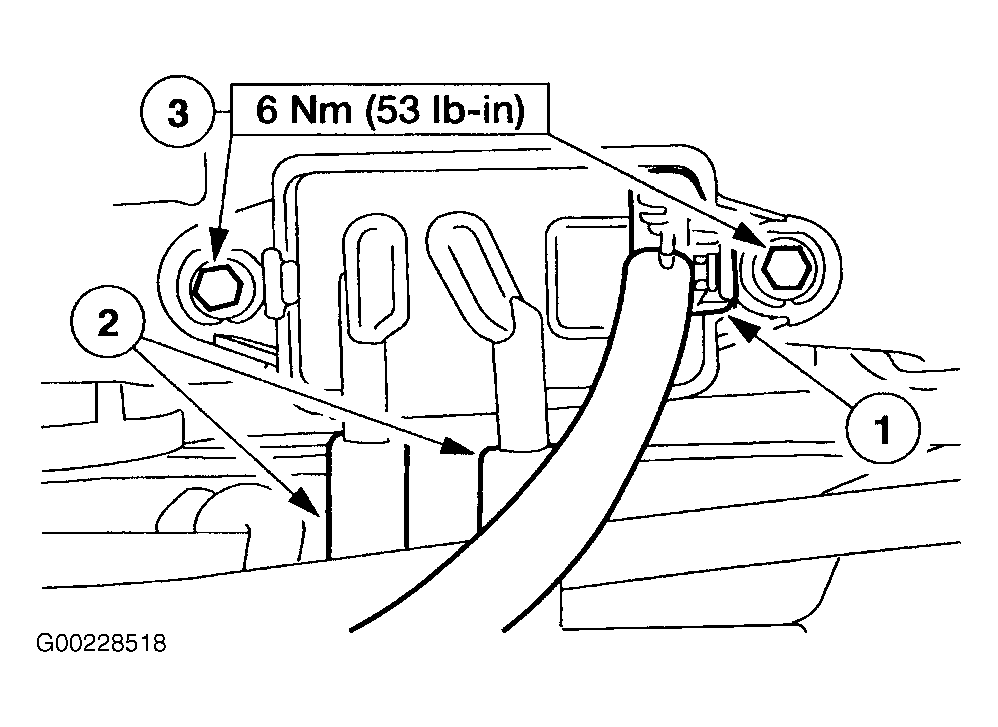

Disconnect negative battery cable. Disconnect Differential Pressure Feedback EGR (DPFE) sensor electrical connector (1). See Fig 1. Disconnect hoses (2). Remove DPFE bolts (3) and remove DPFE sensor. To install, reverse removal procedure.
