Removal & Installation
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

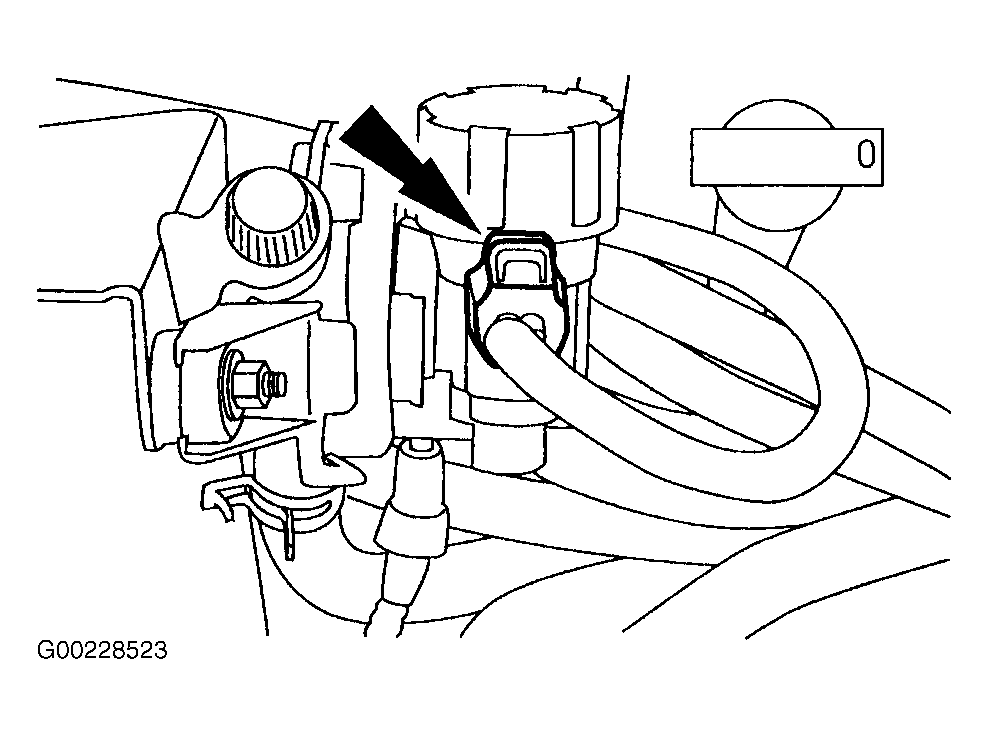

Disconnect the negative battery cable. EVAP canister purge valve is located at rear of engine compartment. Disconnect the canister purge valve electrical connector. See Fig 1. Remove the vacuum hose. Remove the vapor hoses. Remove the mounting nuts and remove canister purge valve. To install, reverse the removal procedure. Perform after repair procedure. See AFTER REPAIR PROCEDURE under EMISSION SYSTEMS & SUB-SYSTEMS.
