Removal & Installation (6.8L)

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

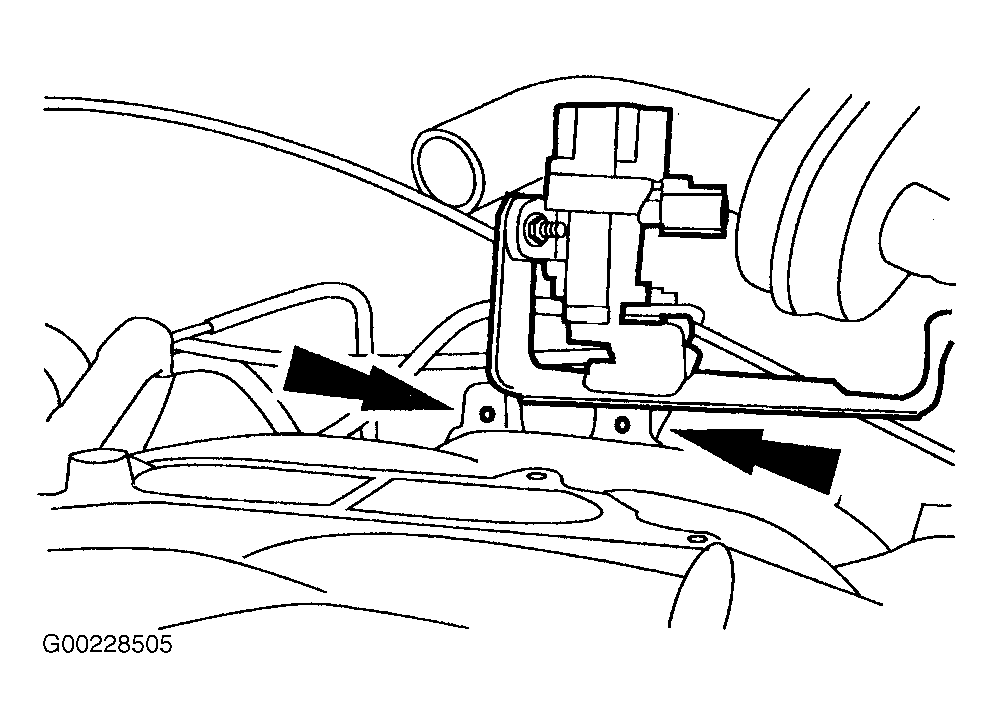

  1. Remove the throttle body spacer. See THROTTLE BODY SPACER  under AIR INDUCTION SYSTEMS. Disconnect the right radio capacitor assembly connector. If equipped, disconnect the EGR Vacuum Regulator (EVR) electrical connector. See Fig 1. Disconnect the EVR vacuum line. Remove the bolts and the EVR bracket assembly. See Figure.
  2. Disconnect the fuel pressure regulator vacuum hose. Remove the fuel line tether clamps. Disconnect the fuel lines. See FUEL LINE CONNECTORS . Remove and discard the fuel line O-ring seals. Disconnect the fuel injector electrical connectors.
  3. Remove the crankcase vent hose. Remove the fuel injection supply manifold bolts. See Fig 2. Lift the fuel supply manifold. Remove the injectors. Remove and discard the O-ring seals from each fuel injector. Position and remove the fuel injection supply manifold. To install, reverse the removal procedure. Lubricate the new O-ring seals with engine oil.

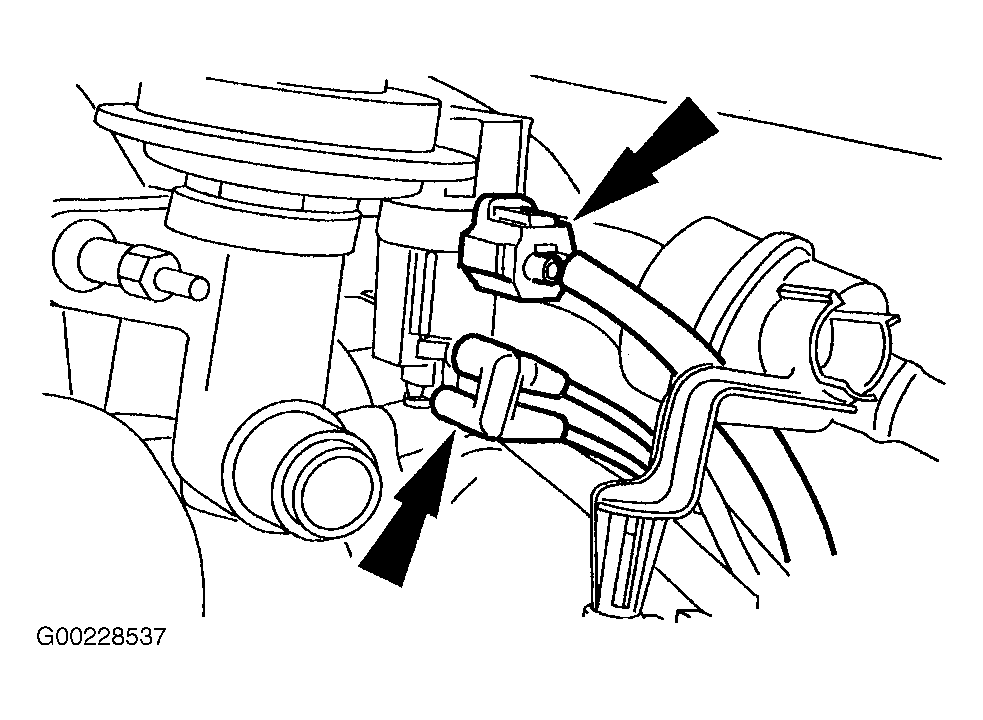

Fig 1: Disconnecting EVR
G00228537Courtesy of FORD MOTOR CO.

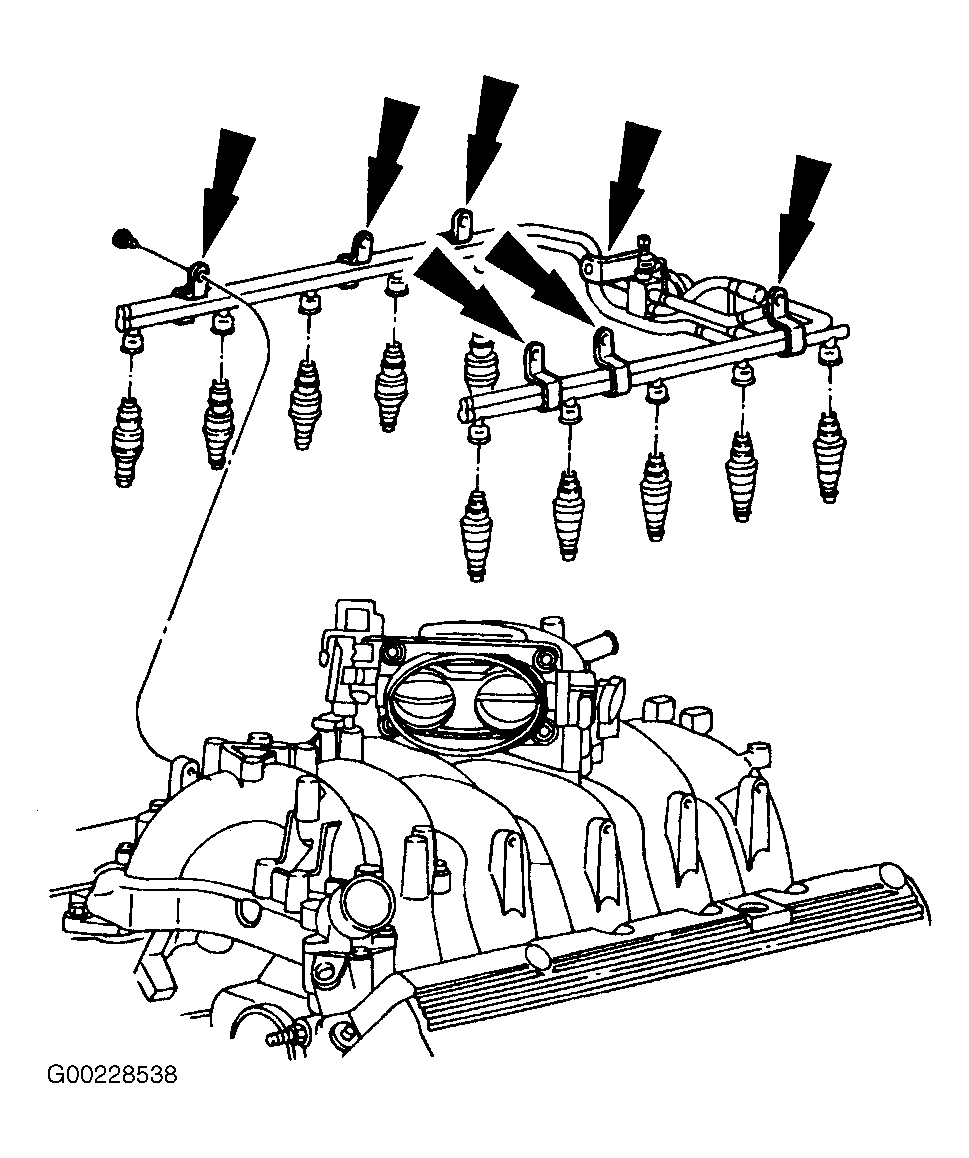

Fig 2: Locating Fuel Injection Supply Manifold Bolts
G00228538Courtesy of FORD MOTOR CO.
