Removal & Installation
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

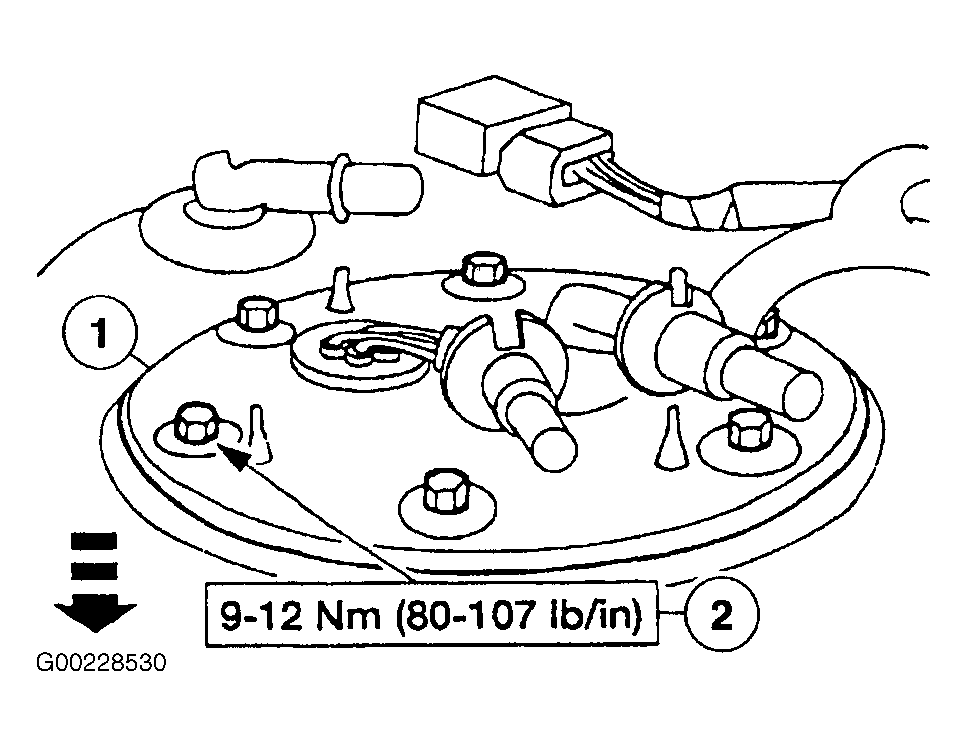

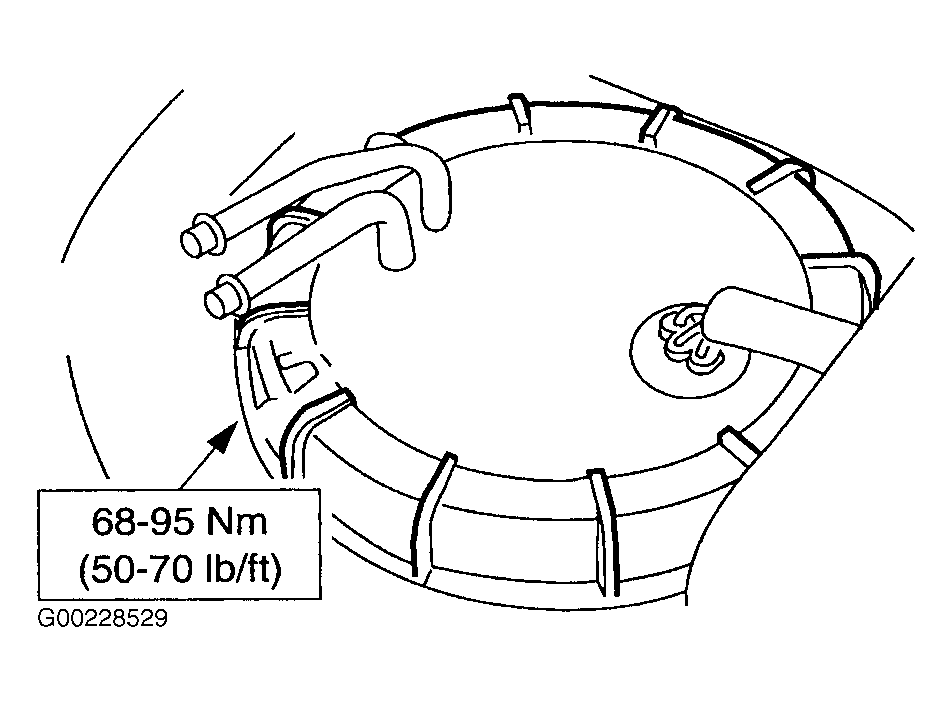

Remove fuel tank. See appropriate procedure under FUEL TANK . Remove screws or lock ring and fuel pump module. See Fig 1 or Fig 2 . Remove fuel pump assembly from fuel pump module by squeezing locking tabs while pushing down. See Fig 3. To install, reverse removal procedure. Wipe seal area of tank clean. Position NEW seal onto pump mounting flange (if necessary), using grease to hold it in position. Position fuel pump in tank to original position. Install bolts or lock ring. DO NOT overtighten lock ring, as it may leak. Install fuel tank. Tighten fasteners to specification. See TORQUE SPECIFICATIONS .
