Fuel Pressure Regulator: Removal
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Numbers in parenthesis refer to numbers in illustrations.

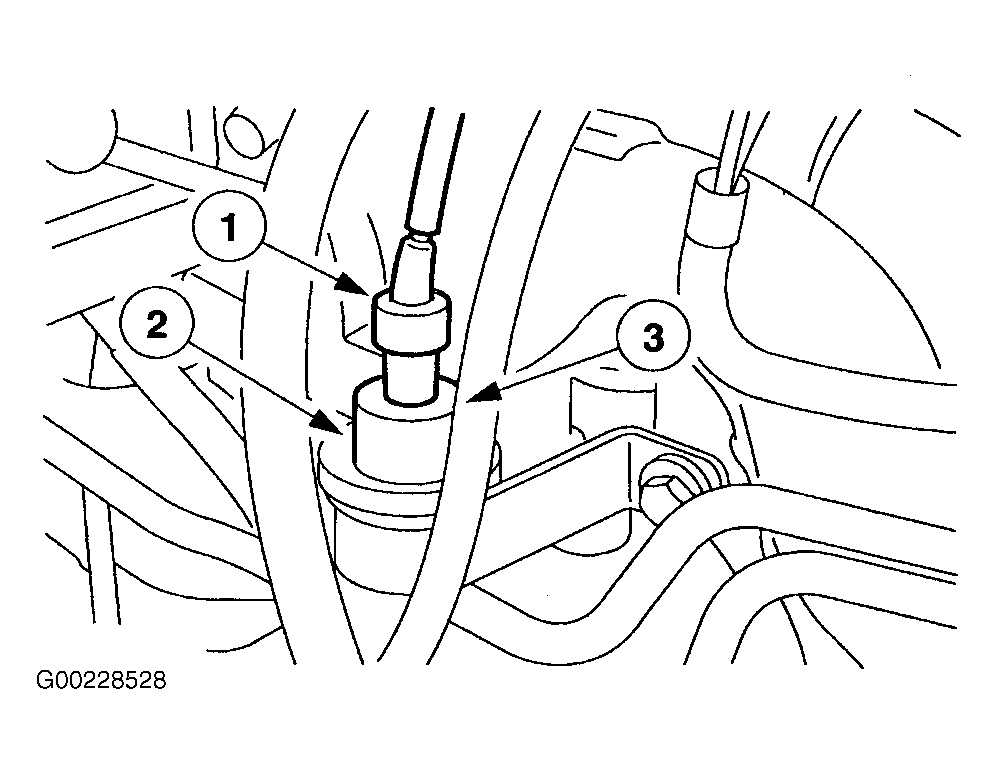

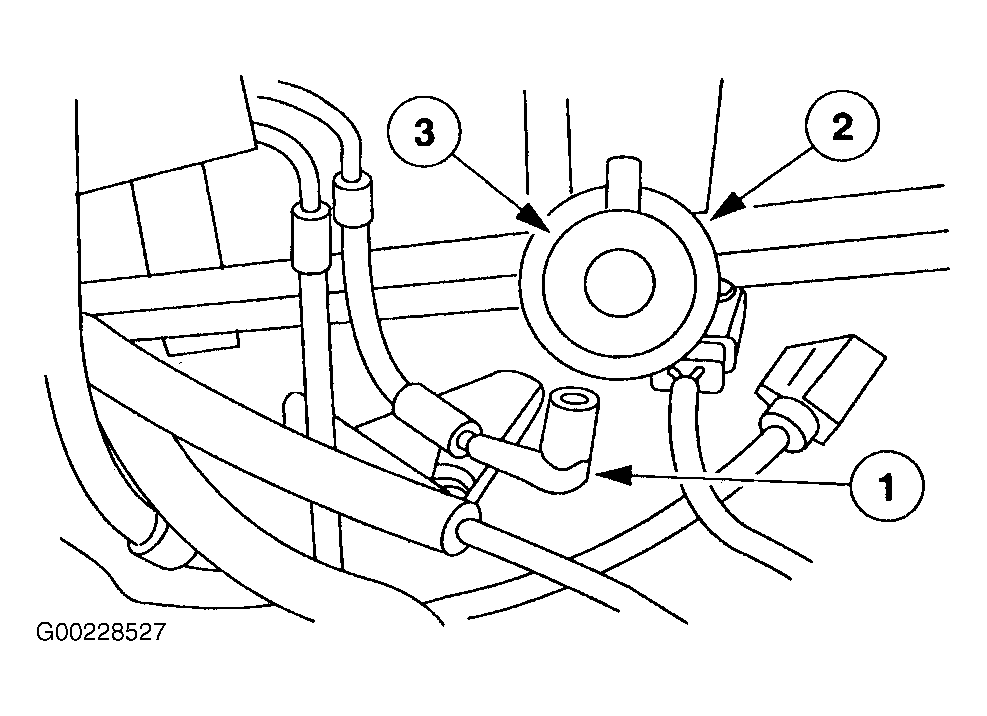

Disconnect negative battery cable. Release fuel pressure. See FUEL SYSTEM PRESSURE RELEASE . Remove vacuum hose from fuel pressure regulator (1). See Fig 1 or Fig 2 . Remove clip from fuel pressure regulator (2). Remove fuel pressure regulator (3). Remove and discard "O" ring (and gasket if applicable).
