Removal & Installation
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

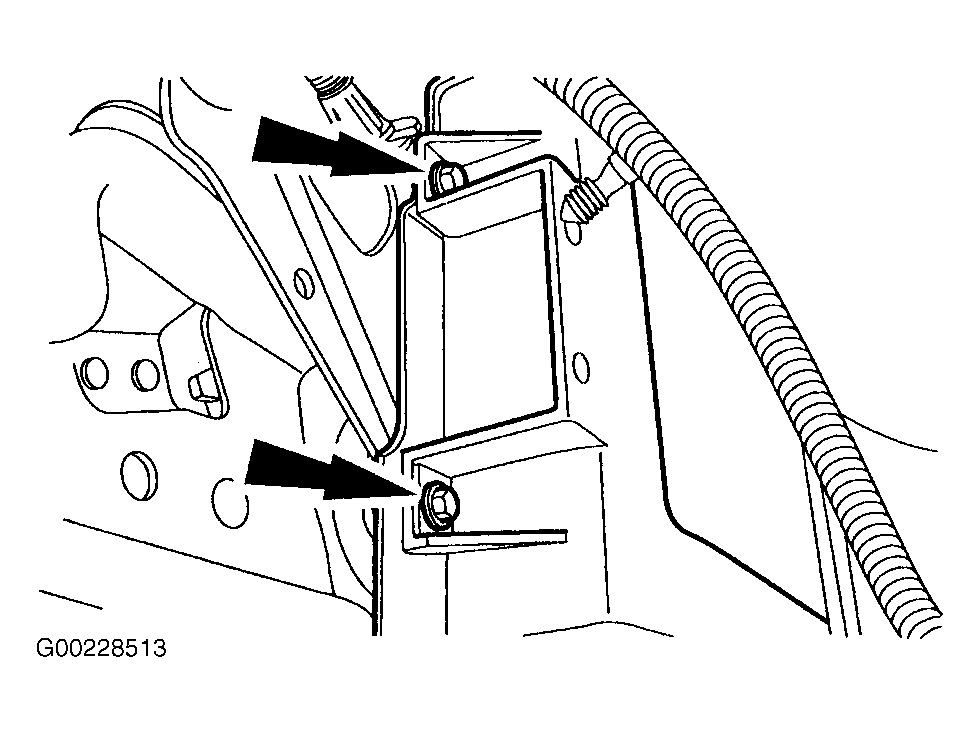

Disconnect negative battery cable. Remove any component(s) necessary to gain access to PCM. PCM is located behind left side of instrument panel, near brake pedal, through bulkhead. Loosen PCM harness connector retaining bolt. Unplug harness connector from PCM. Remove 2 PCM mounting bolts. See Fig 1. Remove PCM bracket with PCM. Separate PCM from bracket. See Fig 2. To install, reverse removal procedure. Tighten bracket bolts and PCM harness connector bolt to specification. See TORQUE SPECIFICATIONS .
