Transfer Case: Reassembly

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

For transfer case reassembly procedure, see Fig 1 -Fig 11 . Tighten fasteners to specification. See TORQUE SPECIFICATIONS .

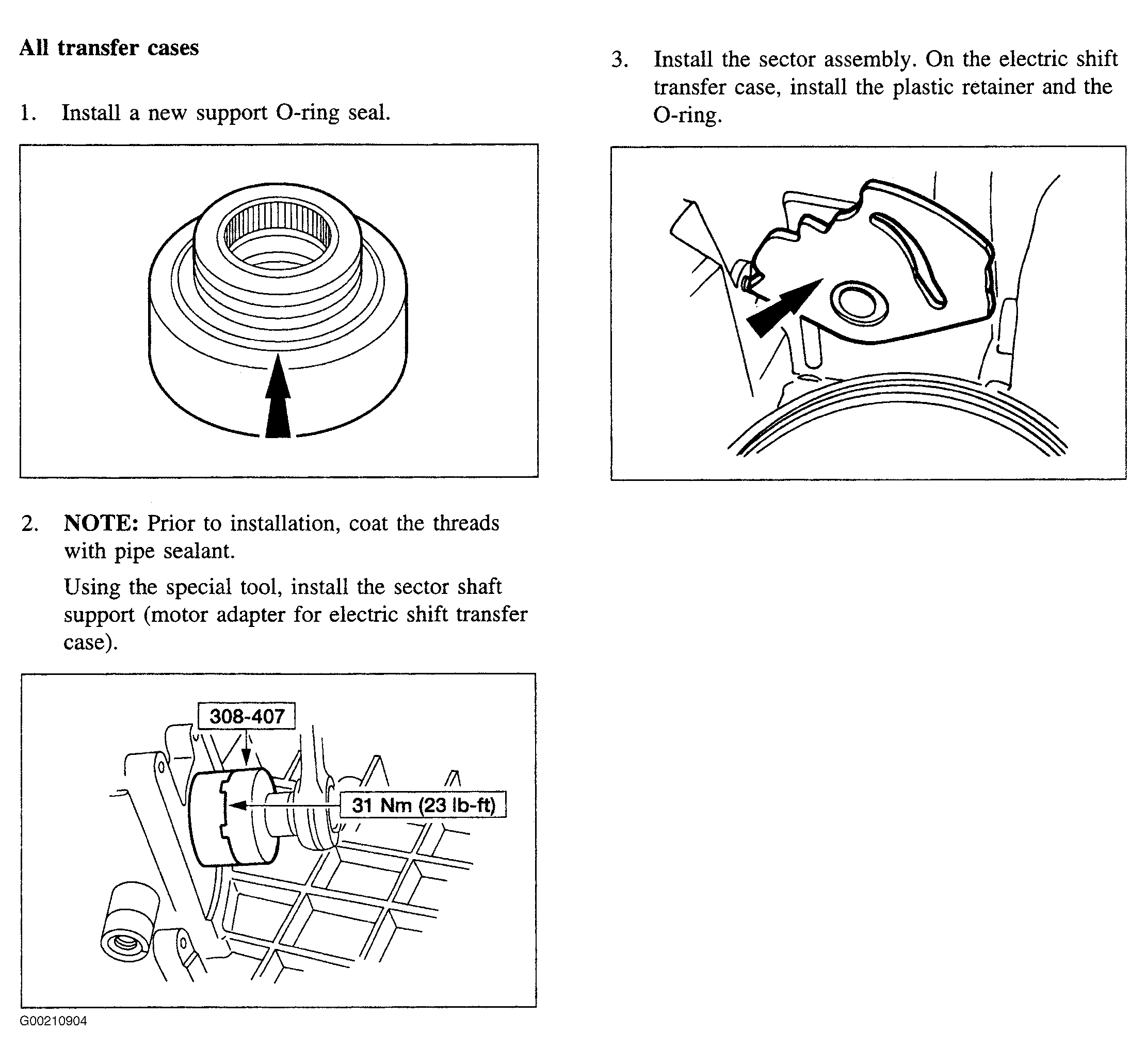

Fig 1: Transfer Case Reassembly (1 Of 11)

G00210904

Courtesy of FORD MOTOR CO.

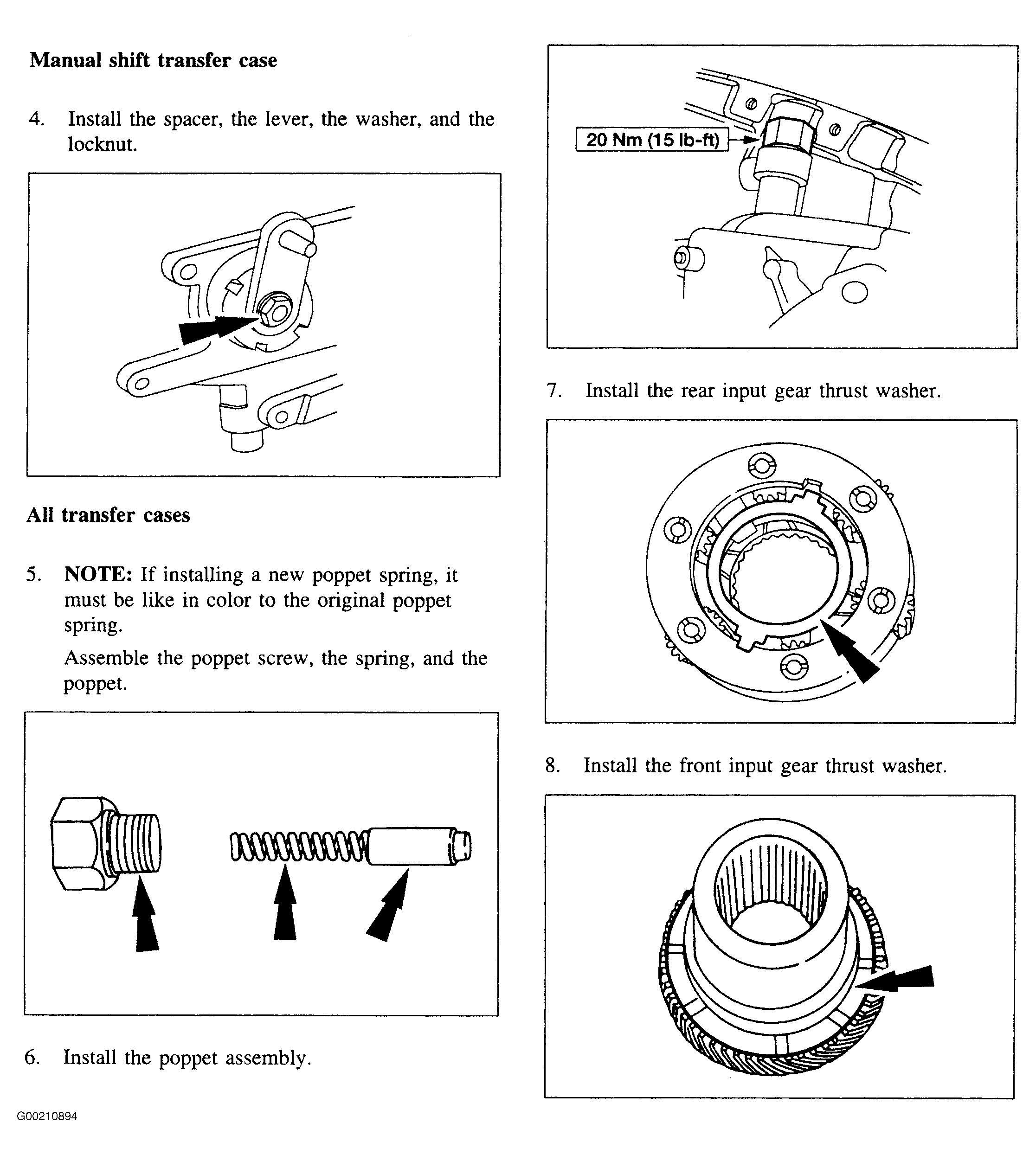

Fig 2: Transfer Case Reassembly (2 Of 11)

G00210894

Courtesy of FORD MOTOR CO.

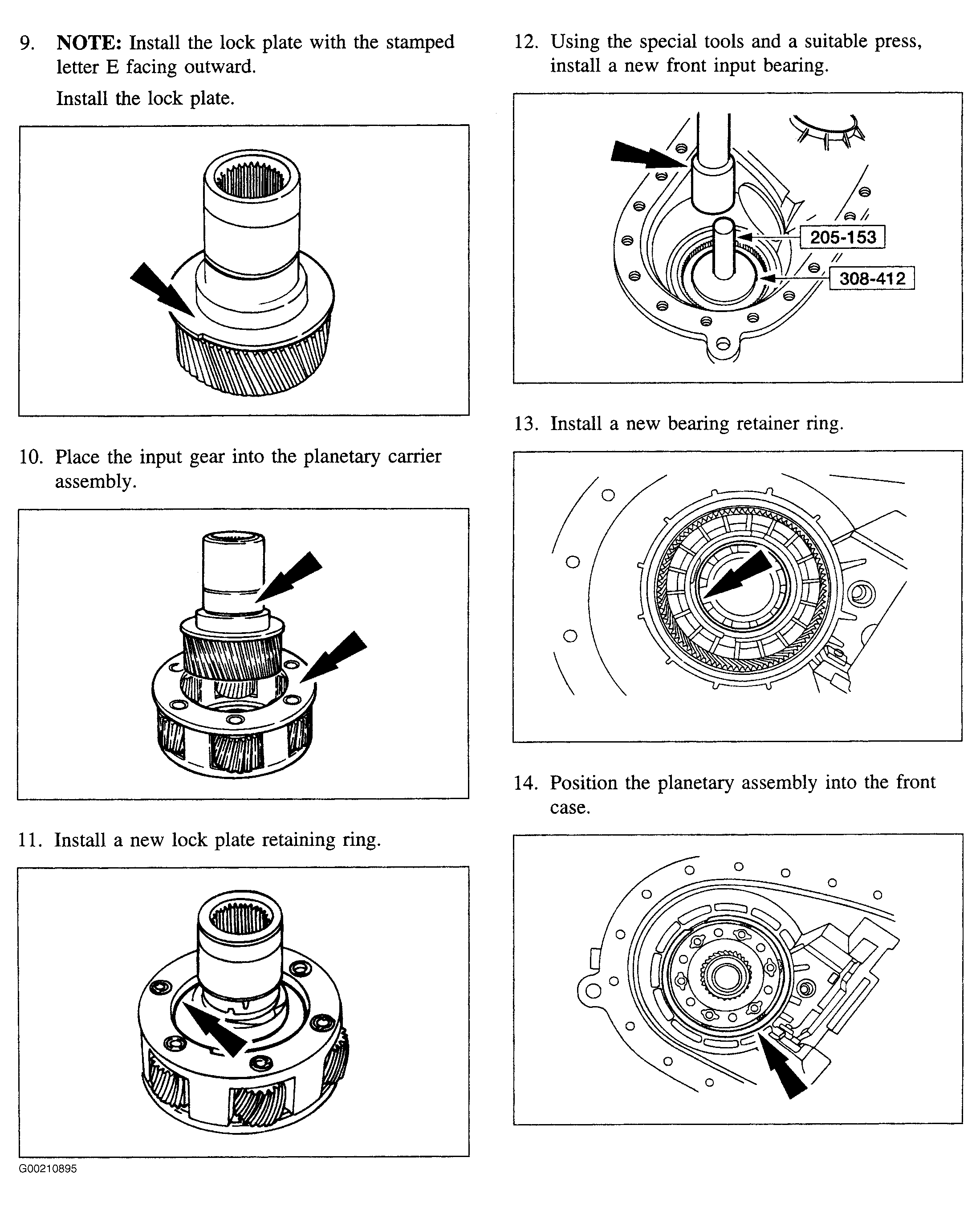

Fig 3: Transfer Case Reassembly (3 Of 11)

G00210895

Courtesy of FORD MOTOR CO.

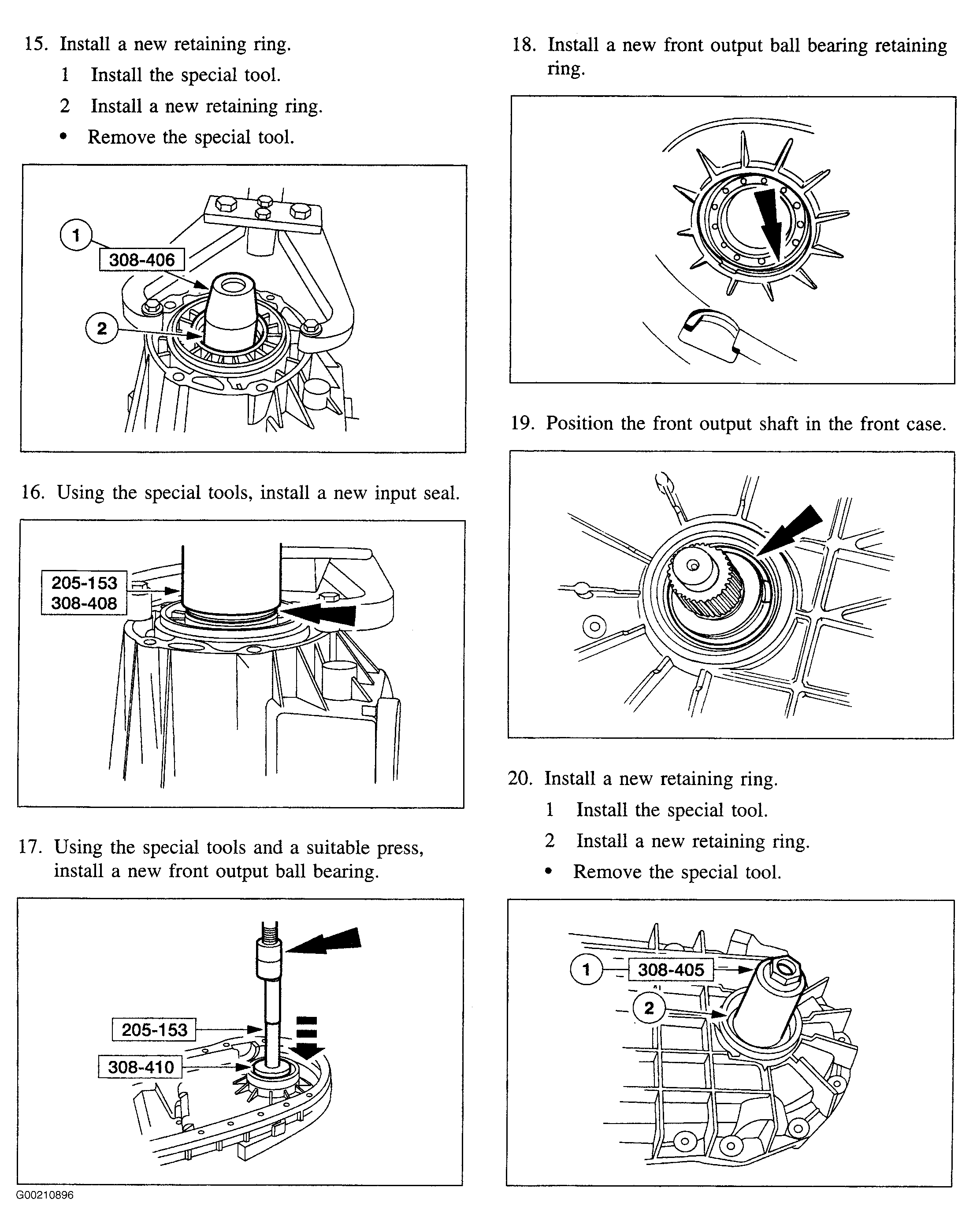

Fig 4: Transfer Case Reassembly (4 Of 11)

G00210896

Courtesy of FORD MOTOR CO.

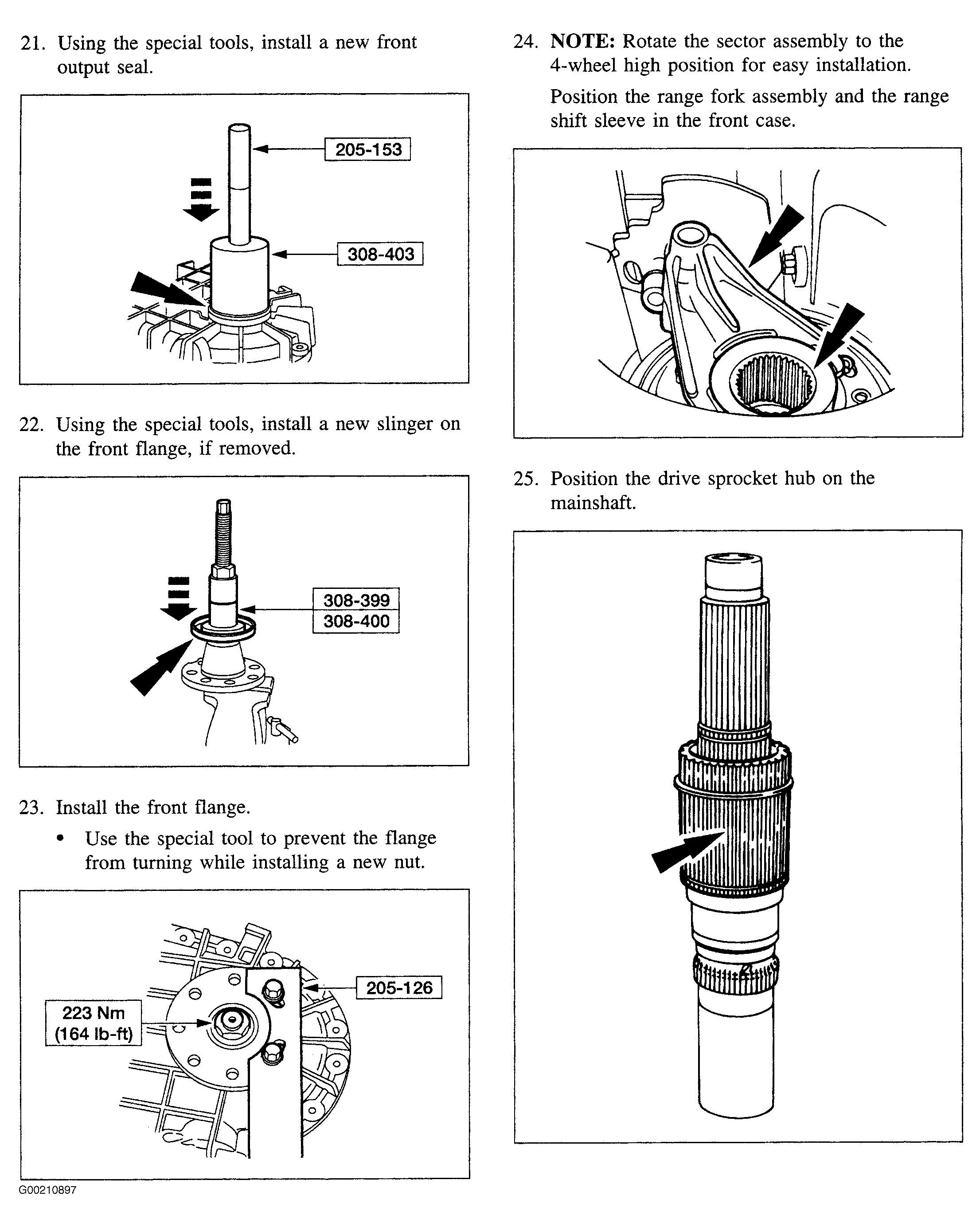

Fig 5: Transfer Case Reassembly (5 Of 11)

G00210897

Courtesy of FORD MOTOR CO.

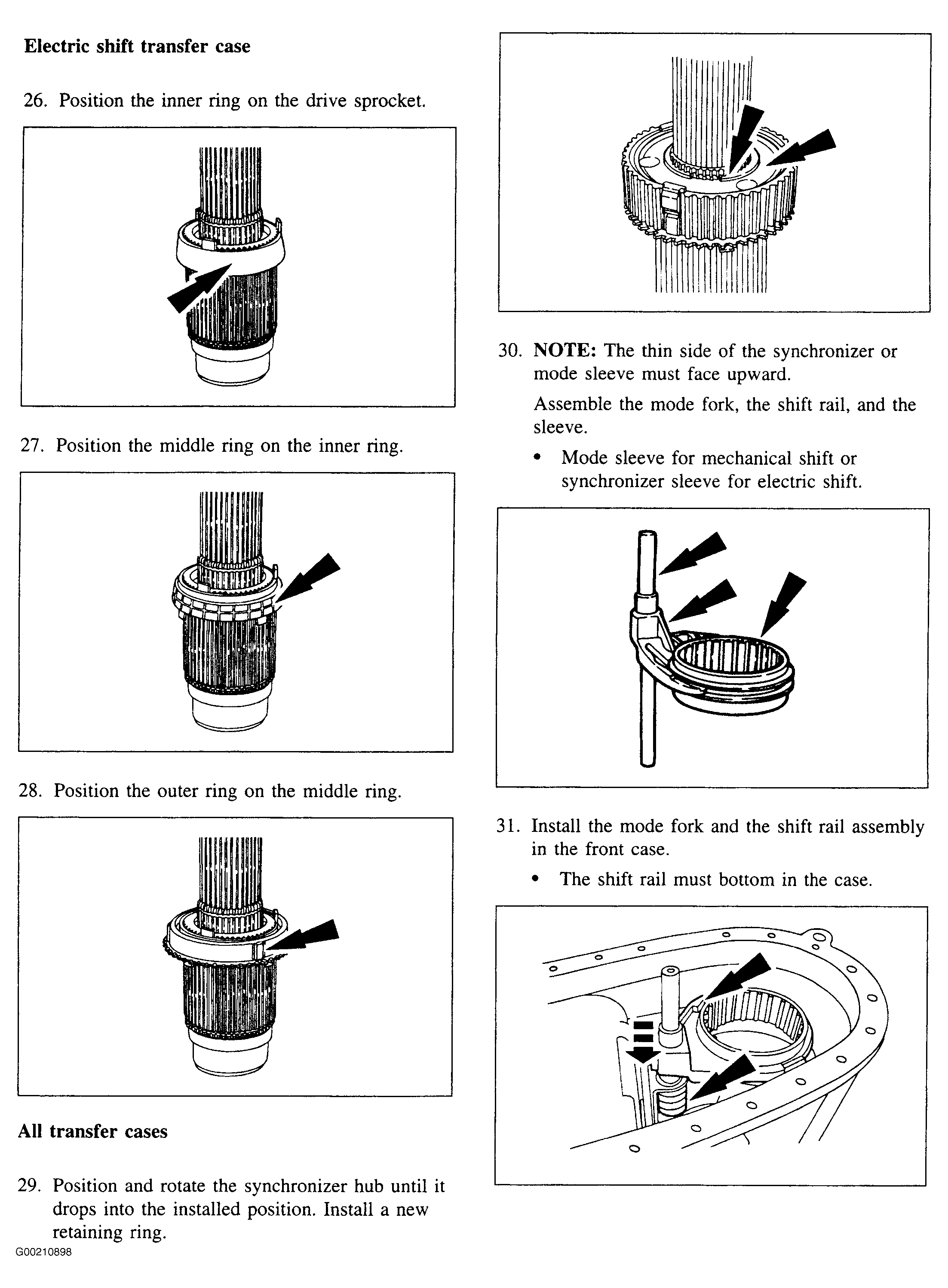

Fig 6: Transfer Case Reassembly (6 Of 11)

G00210898

Courtesy of FORD MOTOR CO.

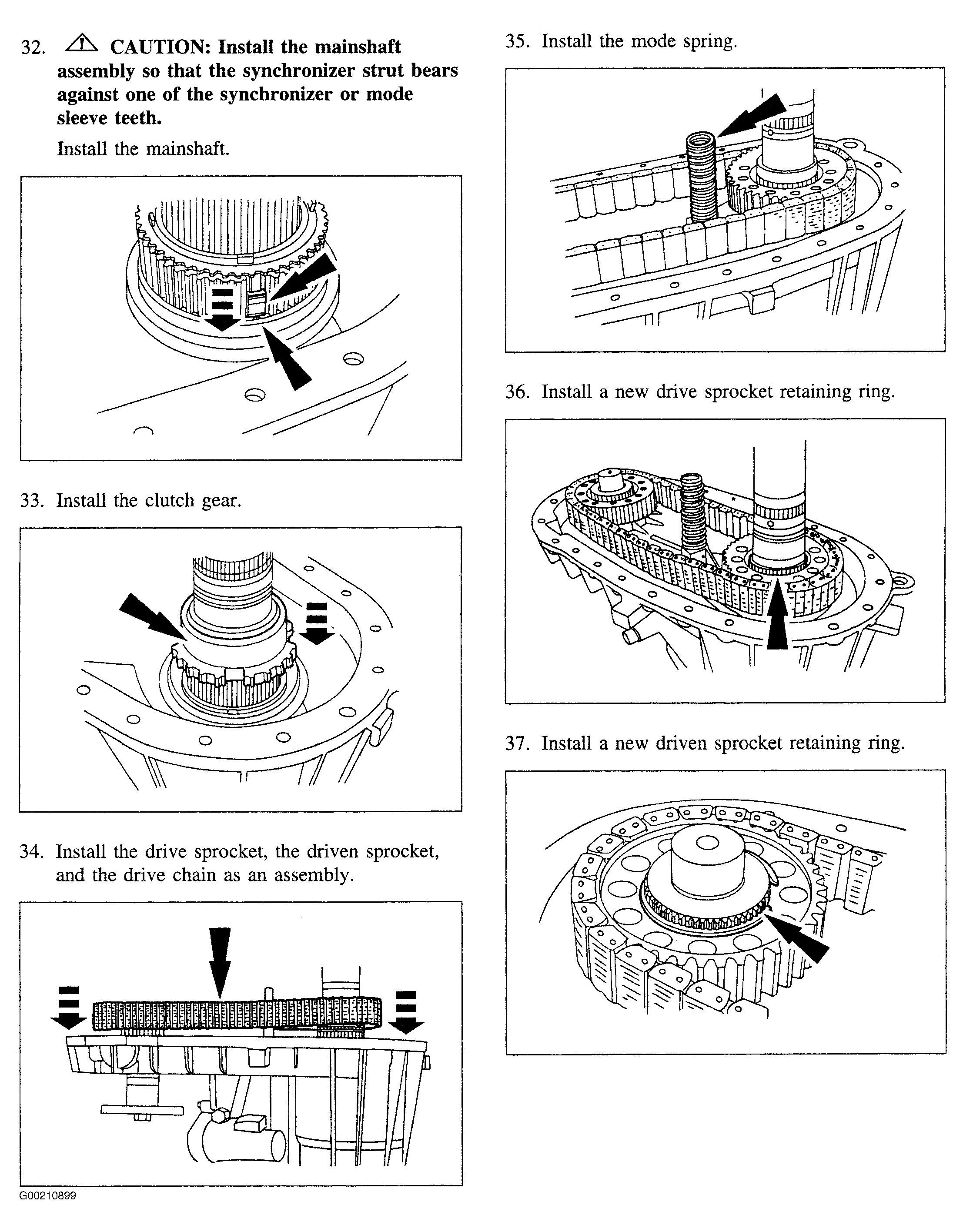

Fig 7: Transfer Case Reassembly (7 Of 11)

G00210899

Courtesy of FORD MOTOR CO.

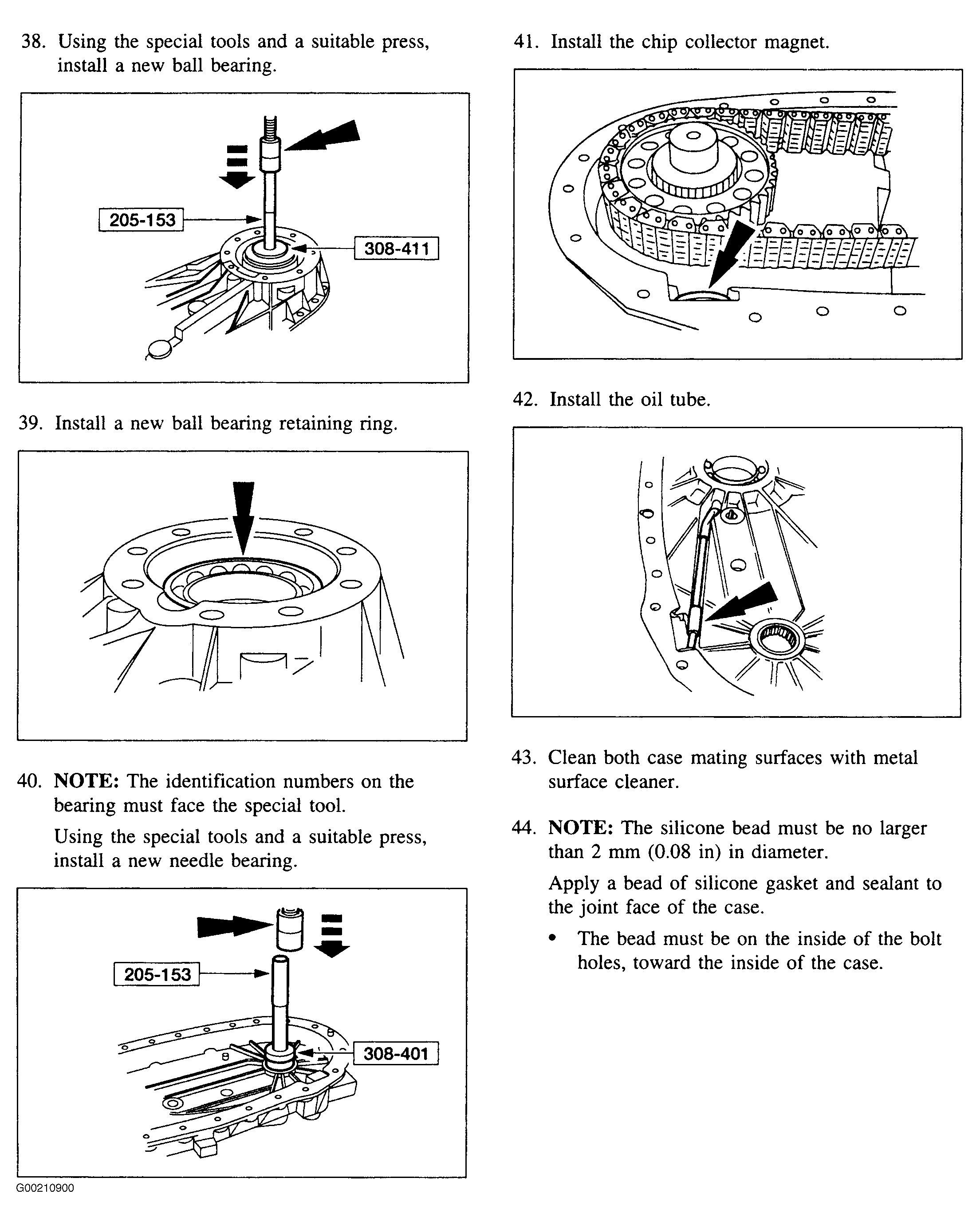

Fig 8: Transfer Case Reassembly (8 Of 11)

G00210900

Courtesy of FORD MOTOR CO.

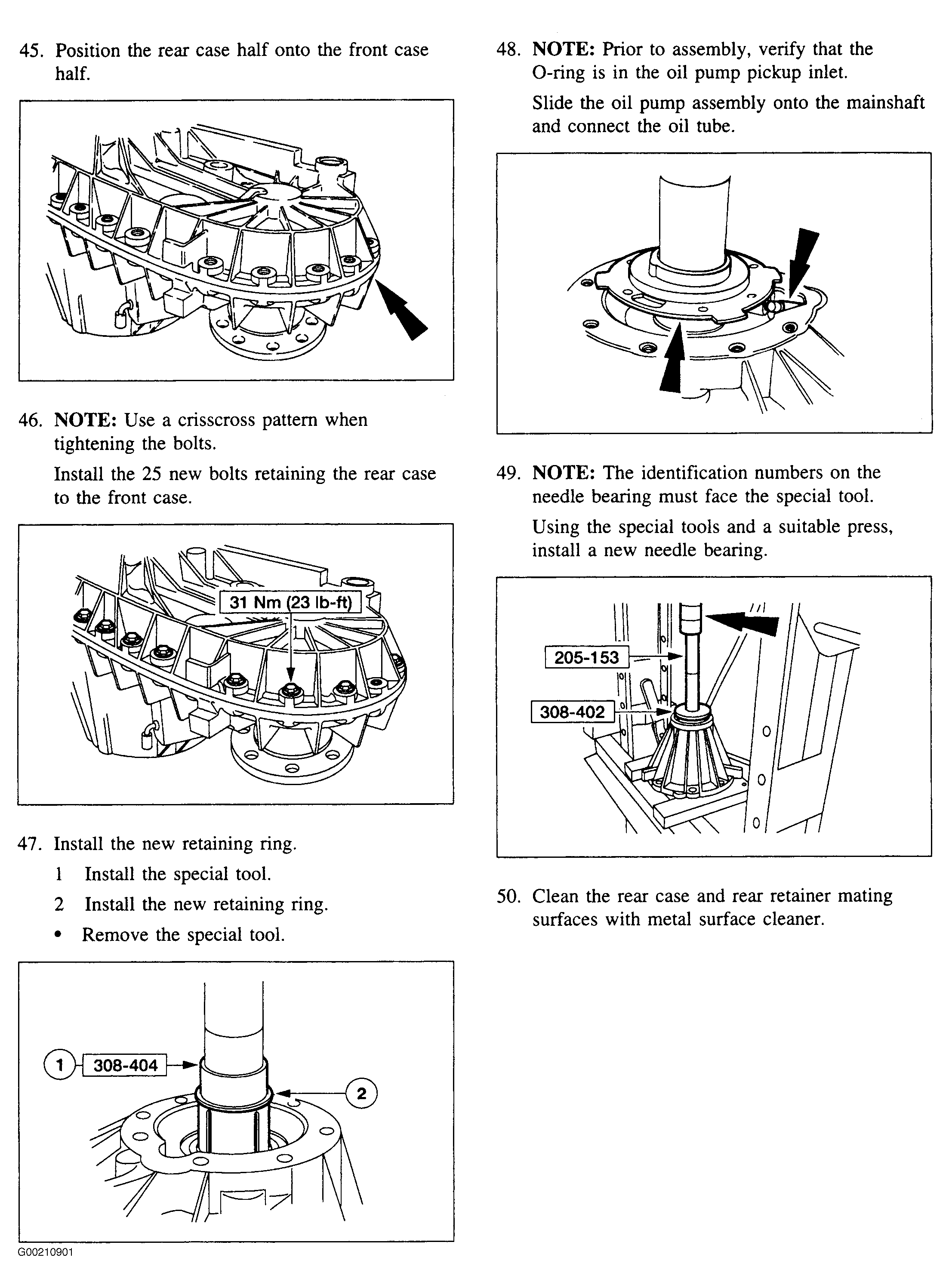

Fig 9: Transfer Case Reassembly (9 Of 11)

G00210901

Courtesy of FORD MOTOR CO.

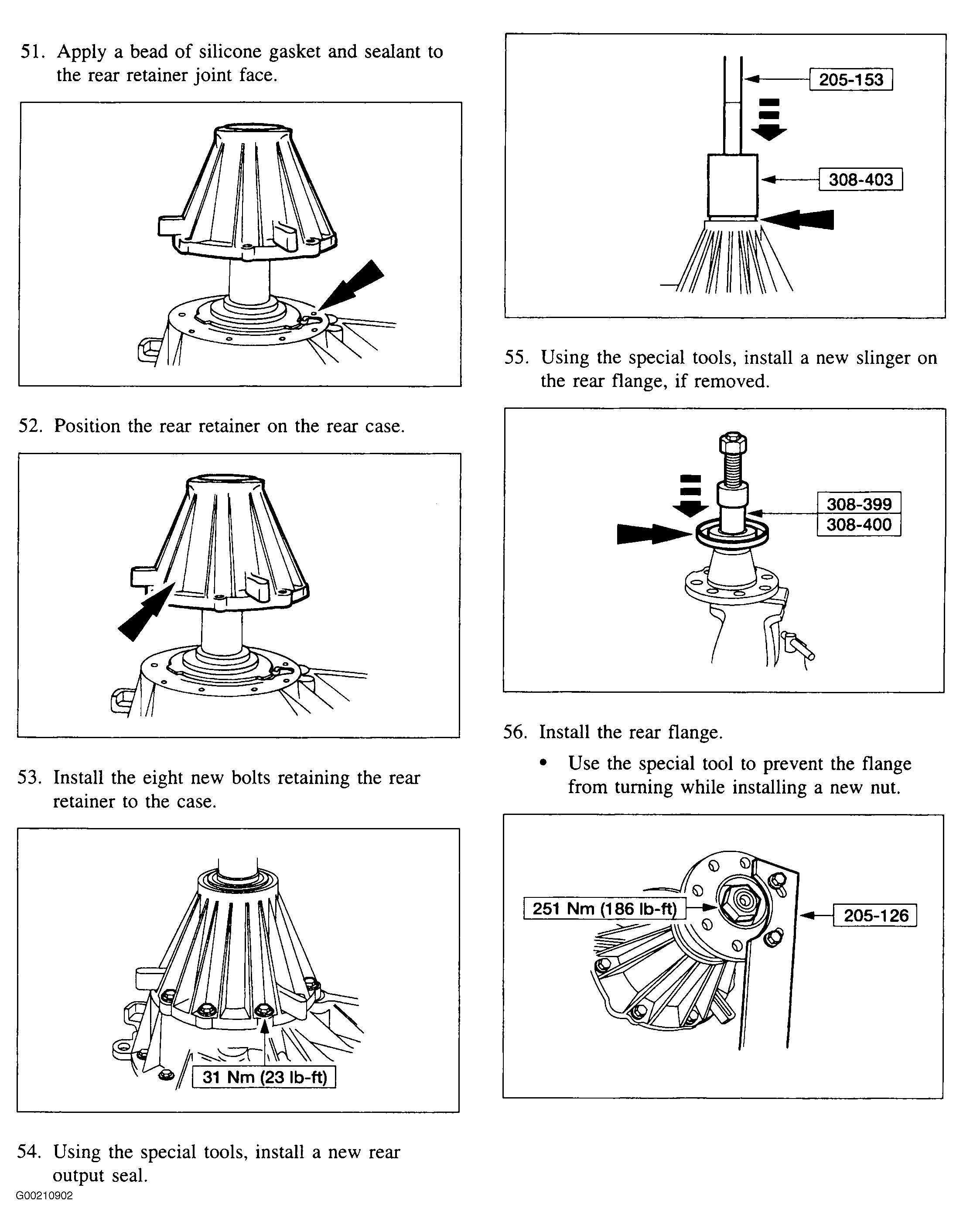

Fig 10: Transfer Case Reassembly (10 Of 11)

G00210902

Courtesy of FORD MOTOR CO.

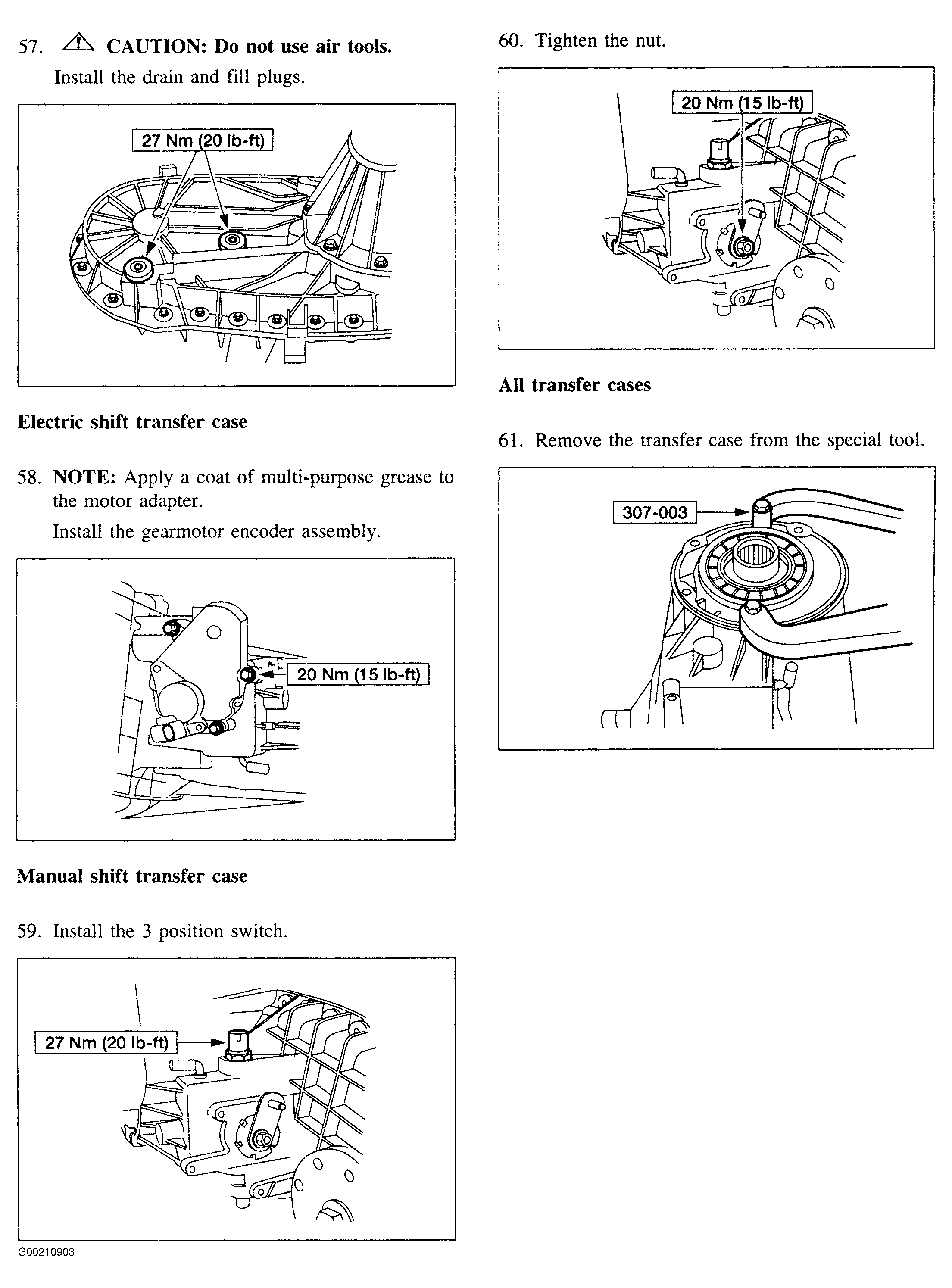

Fig 11: Transfer Case Reassembly (11 Of 11)

G00210903

Courtesy of FORD MOTOR CO.
