Transfer Case: Disassembly

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

For transfer case disassembly procedure, see Fig 1 -Fig 11 .

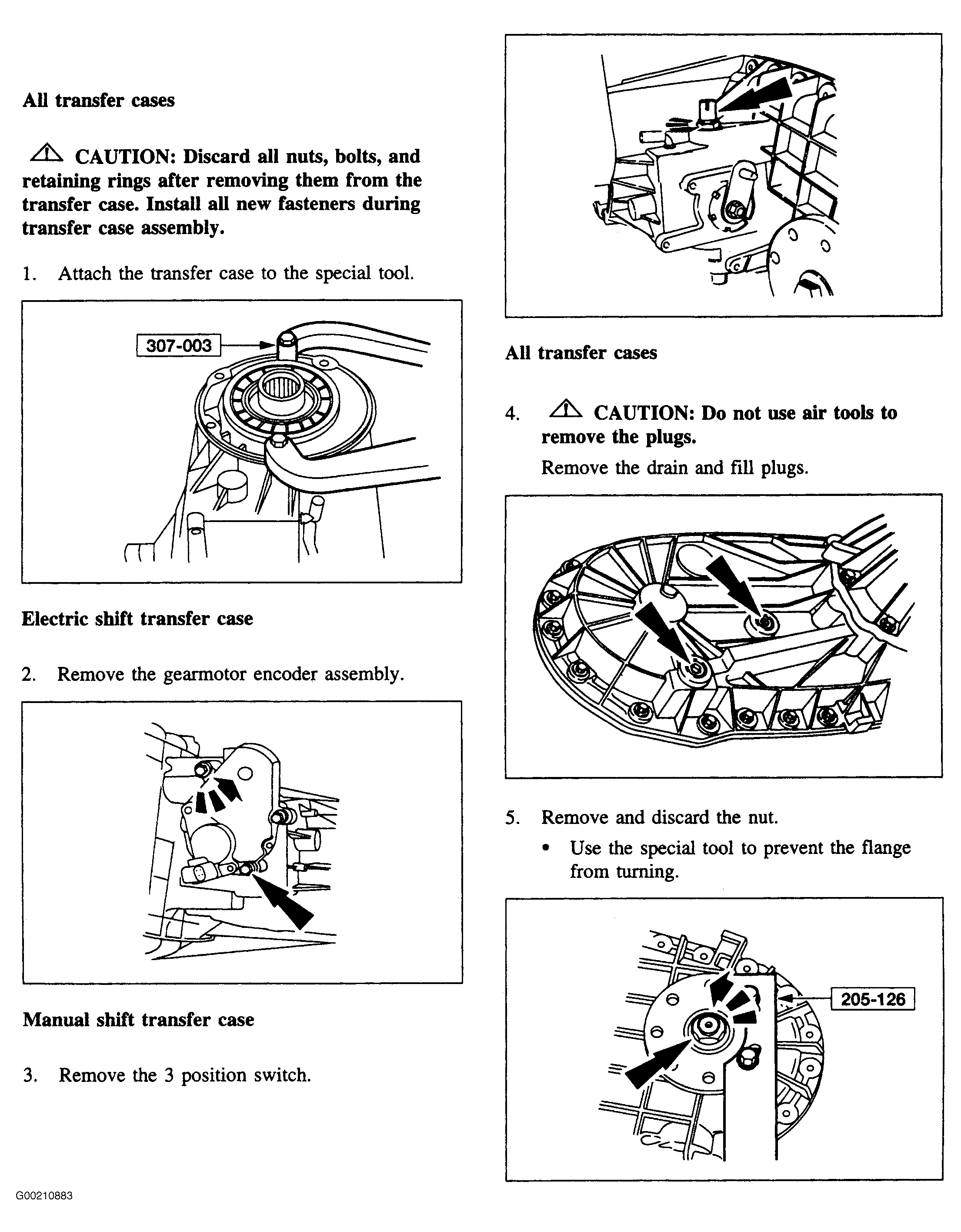

Fig 1: Transfer Case Disassembly (1 Of 11)

G00210883

Courtesy of FORD MOTOR CO.

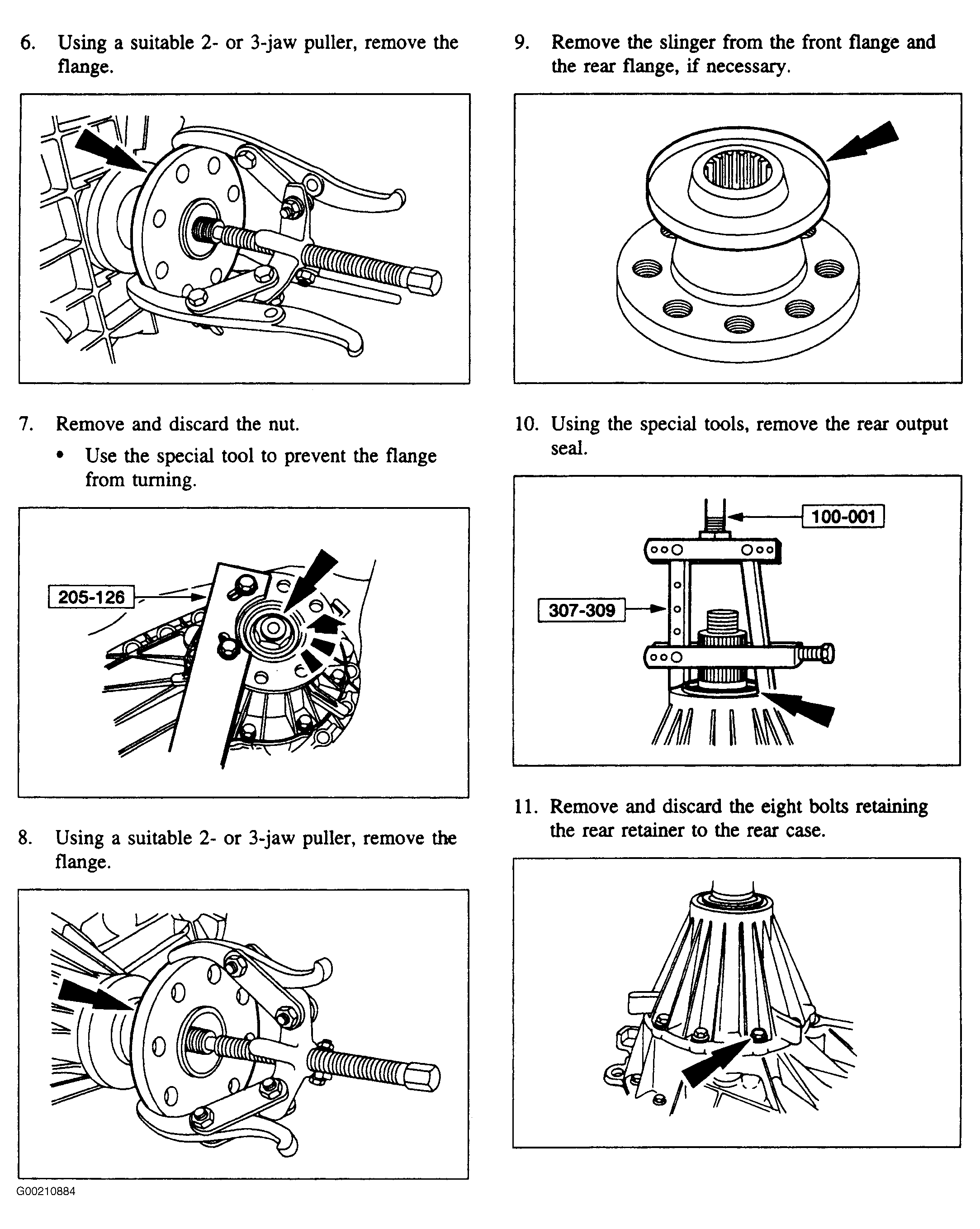

Fig 2: Transfer Case Disassembly (2 Of 11)

G00210884

Courtesy of FORD MOTOR CO.

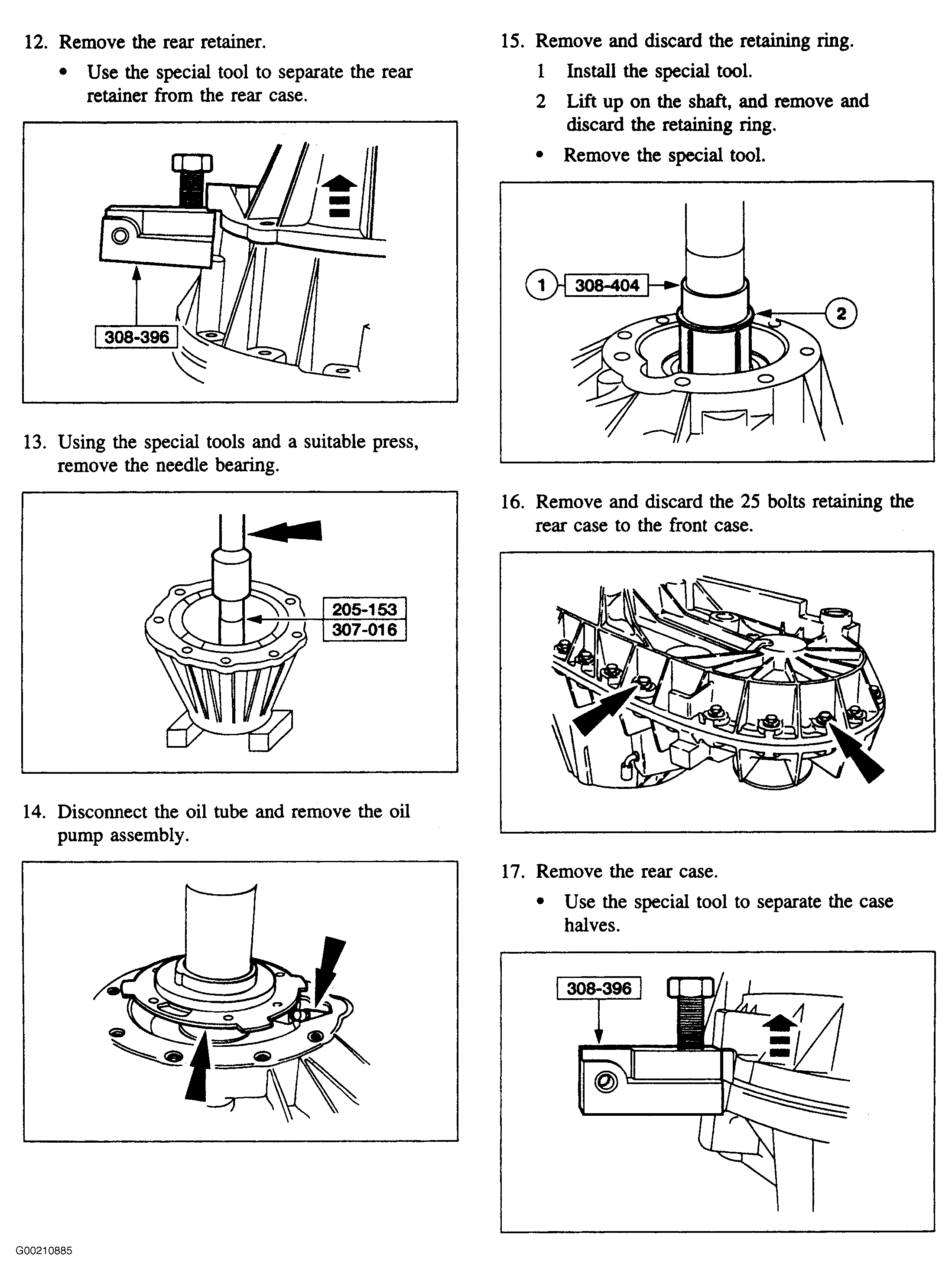

Fig 3: Transfer Case Disassembly (3 Of 11)

G00210885

Courtesy of FORD MOTOR CO.

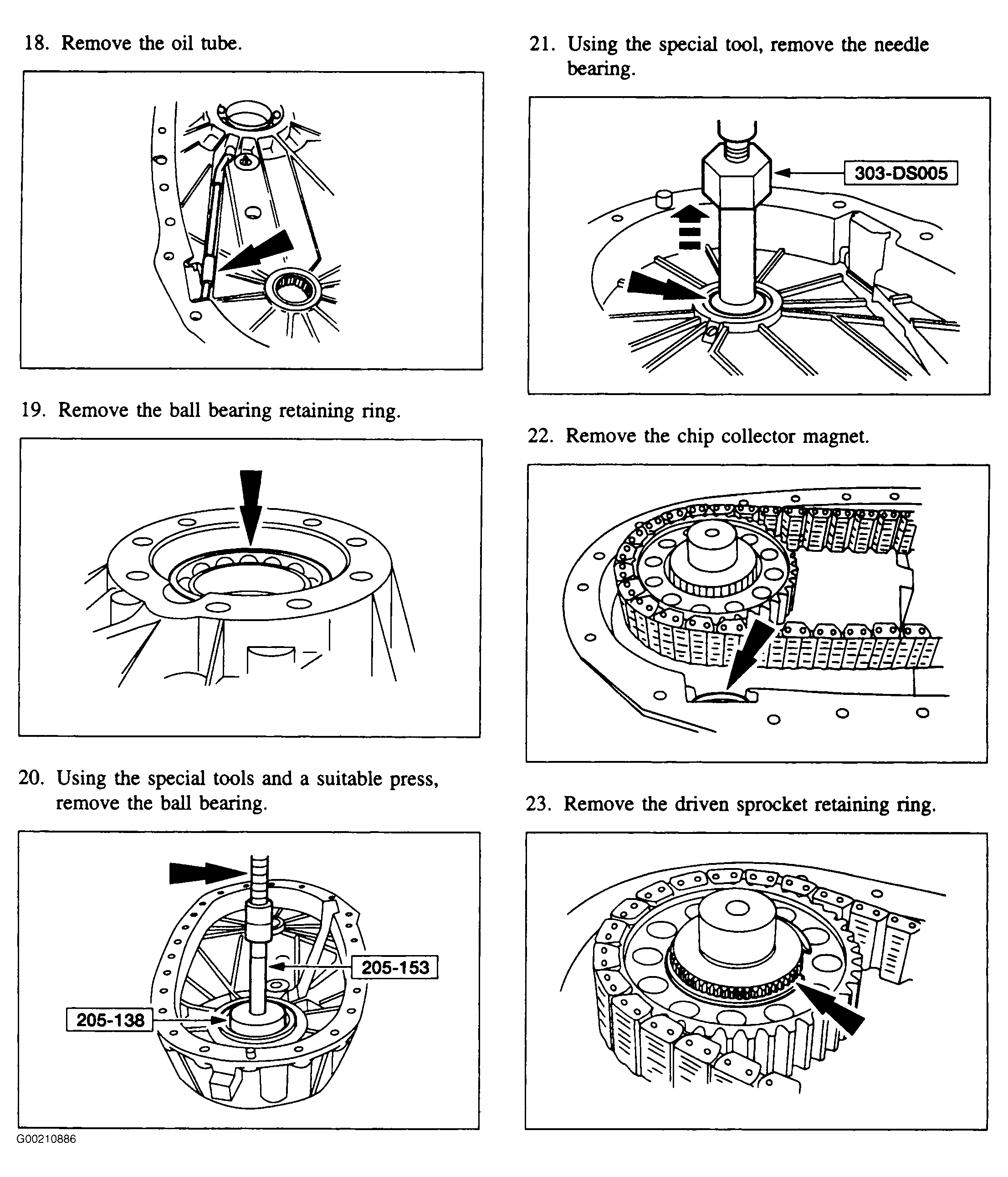

Fig 4: Transfer Case Disassembly (4 Of 11)

G00210886

Courtesy of FORD MOTOR CO.

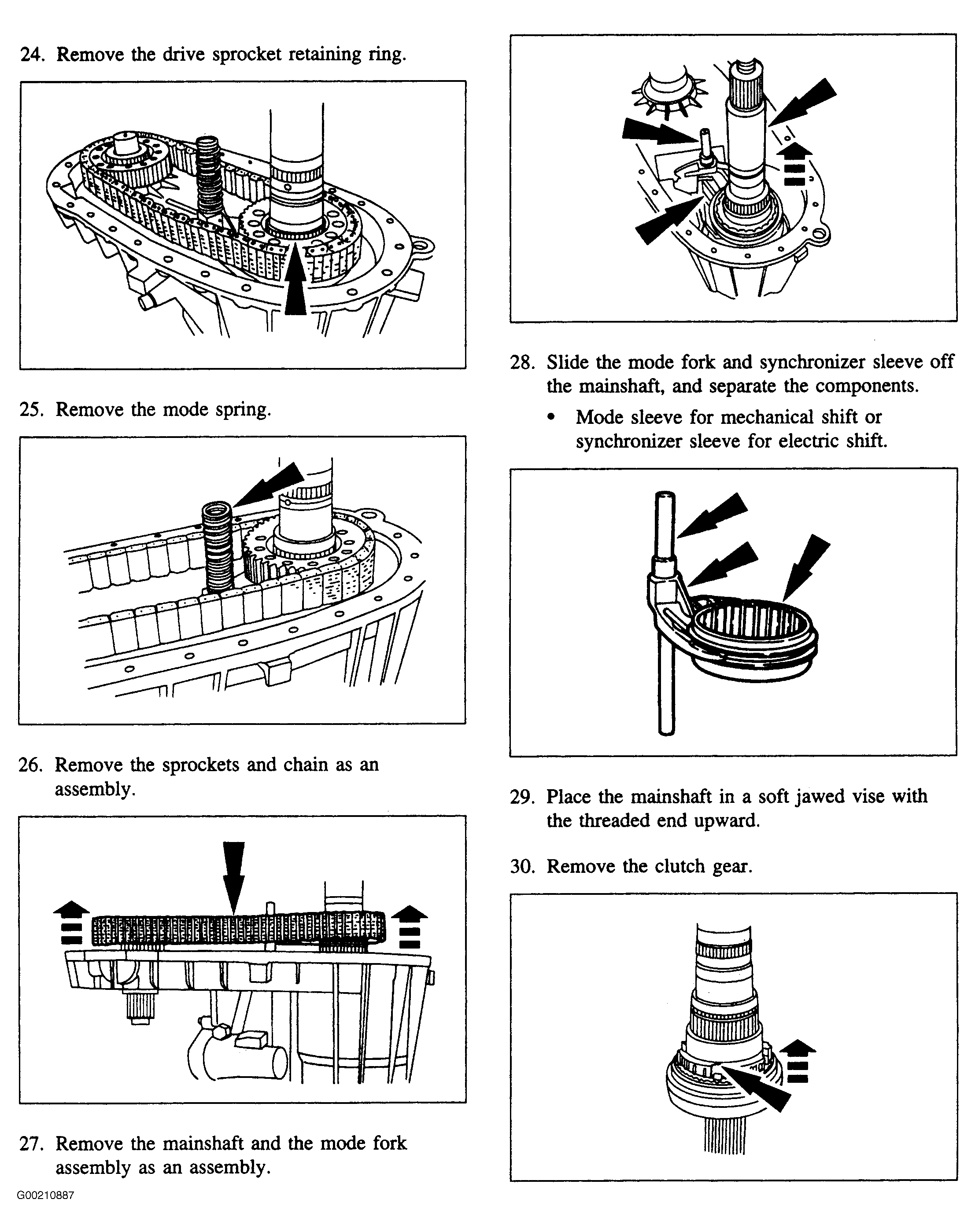

Fig 5: Transfer Case Disassembly (5 Of 11)

G00210887

Courtesy of FORD MOTOR CO.

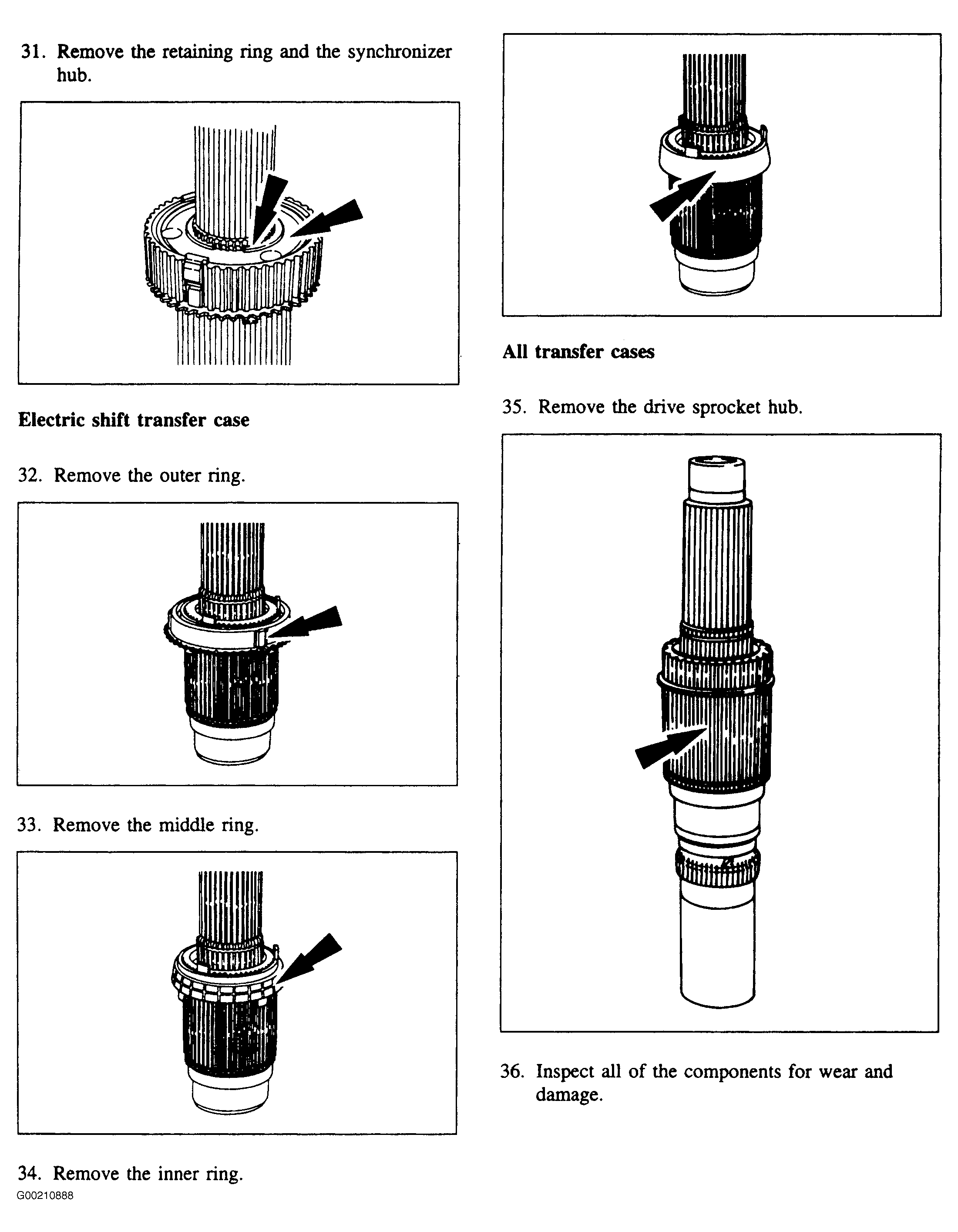

Fig 6: Transfer Case Disassembly (6 Of 11)

G00210888

Courtesy of FORD MOTOR CO.

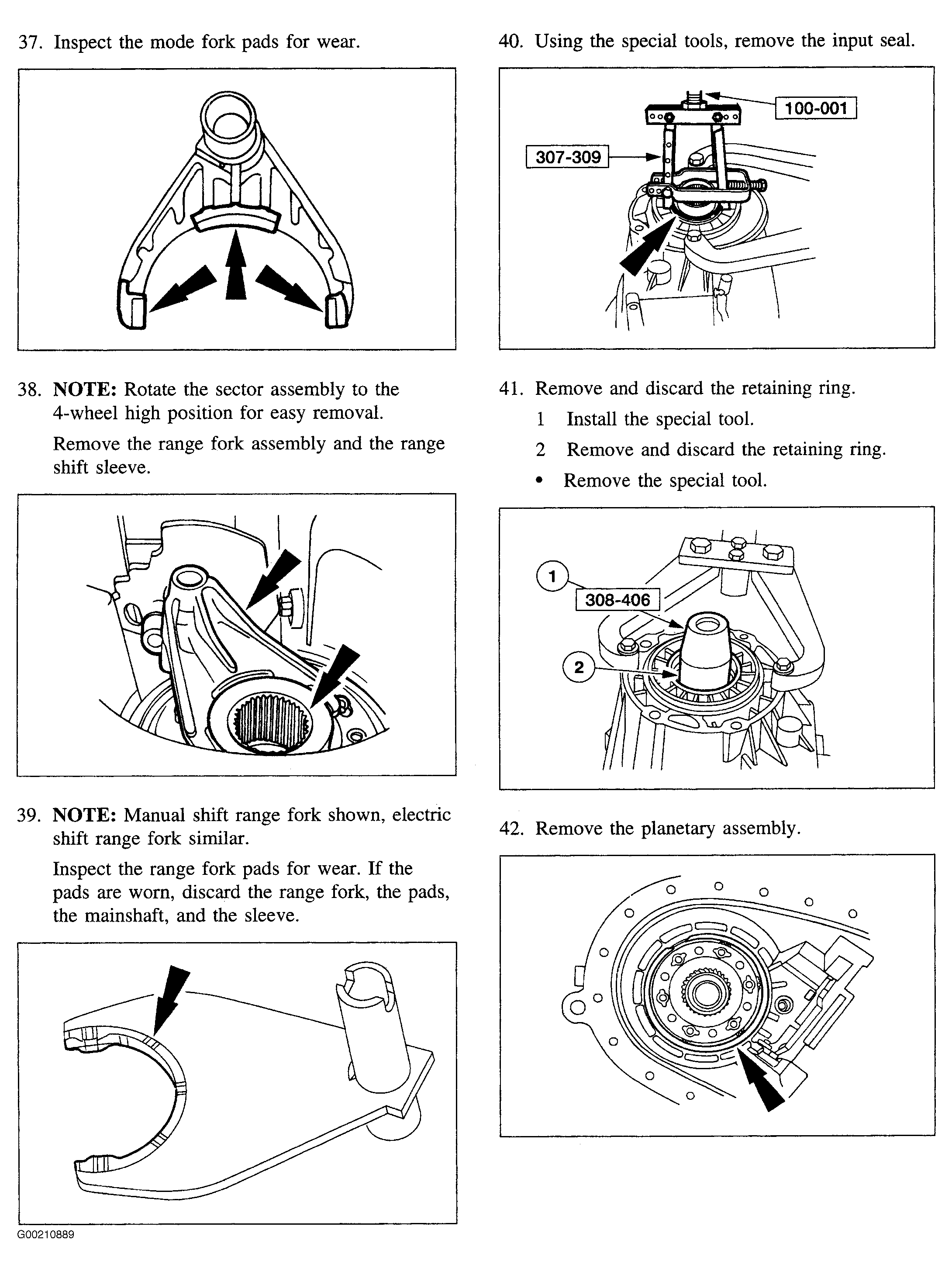

Fig 7: Transfer Case Disassembly (7 Of 11)

G00210889

Courtesy of FORD MOTOR CO.

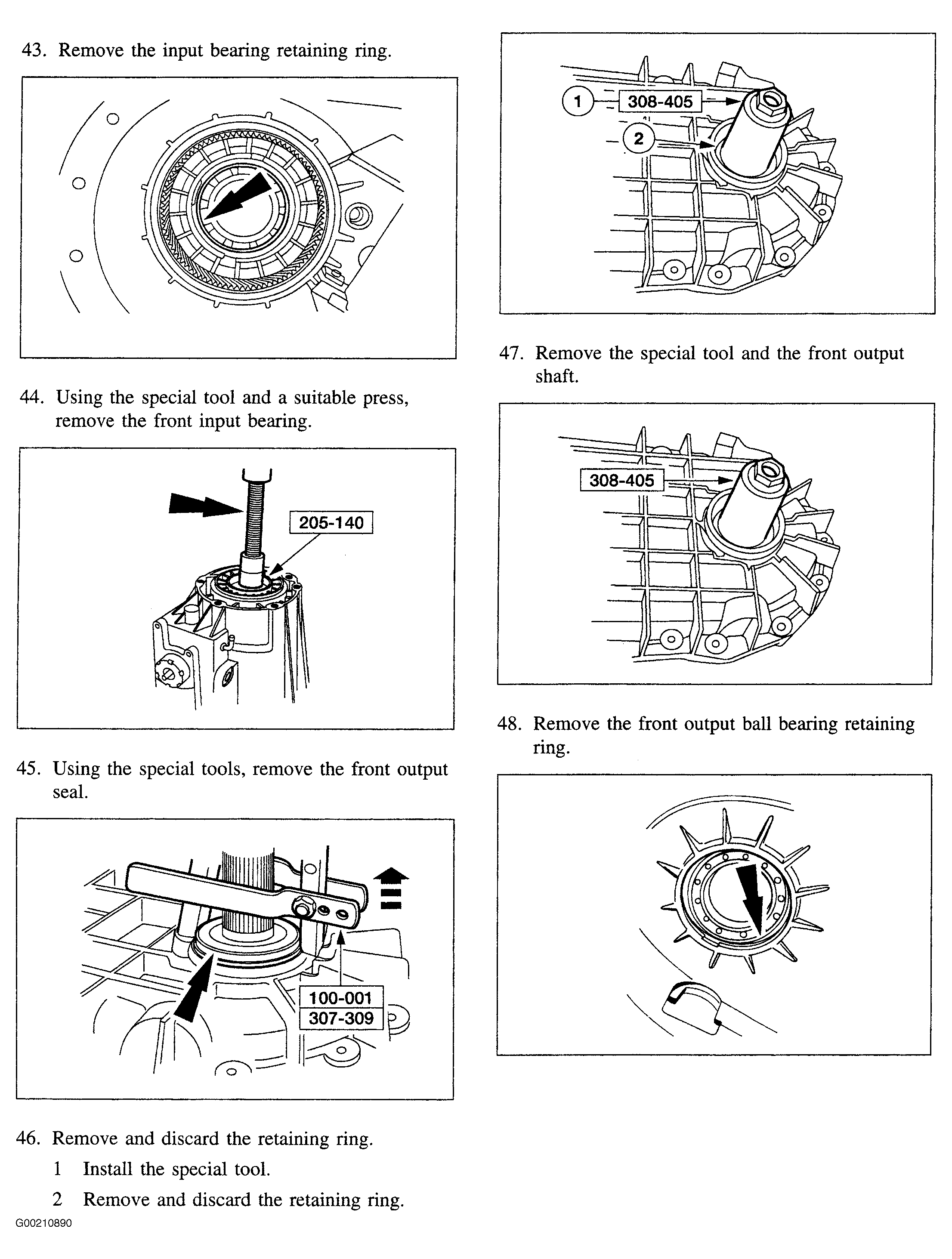

Fig 8: Transfer Case Disassembly (8 Of 11)

G00210890

Courtesy of FORD MOTOR CO.

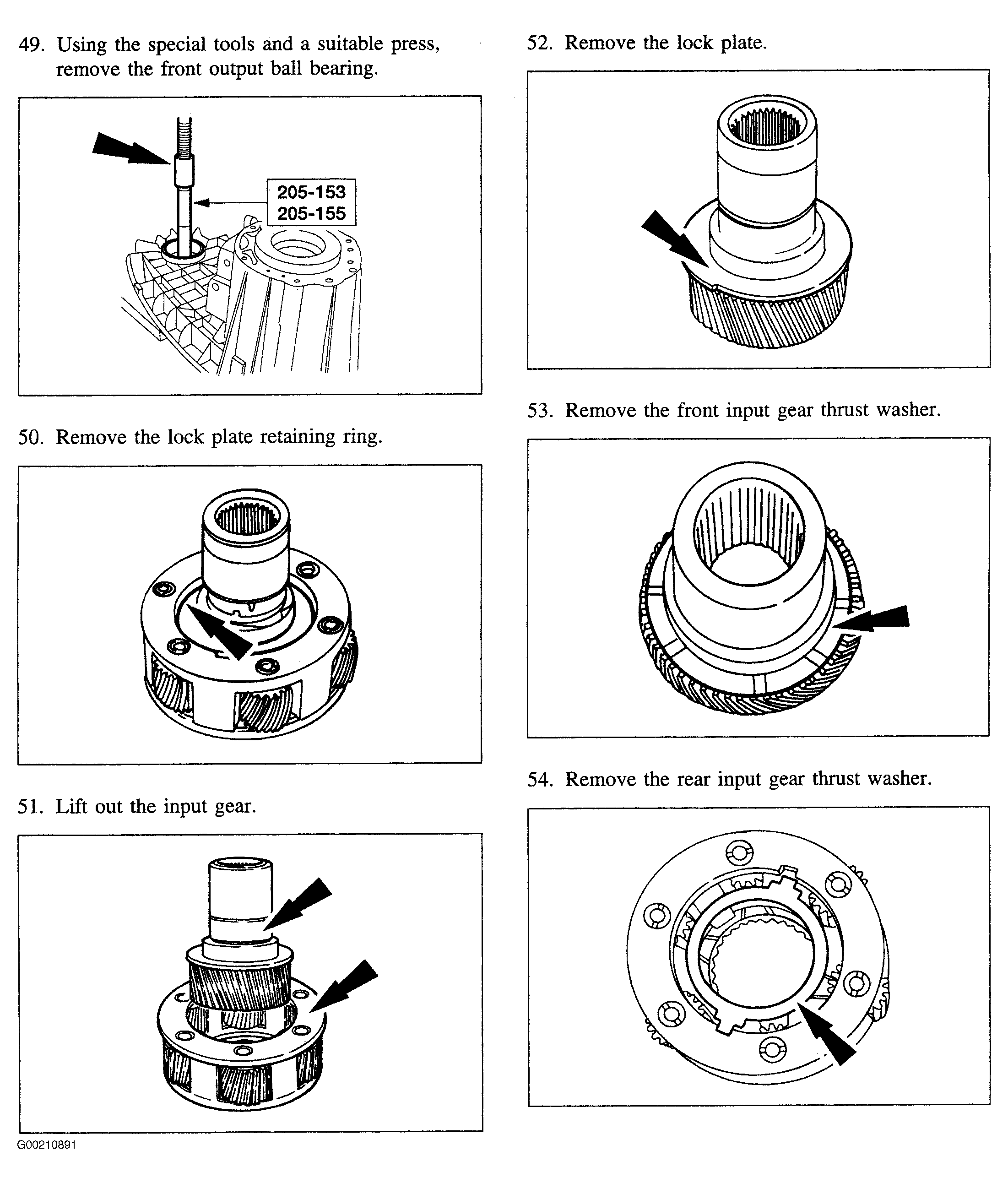

Fig 9: Transfer Case Disassembly (9 Of 11)

G00210891

Courtesy of FORD MOTOR CO.

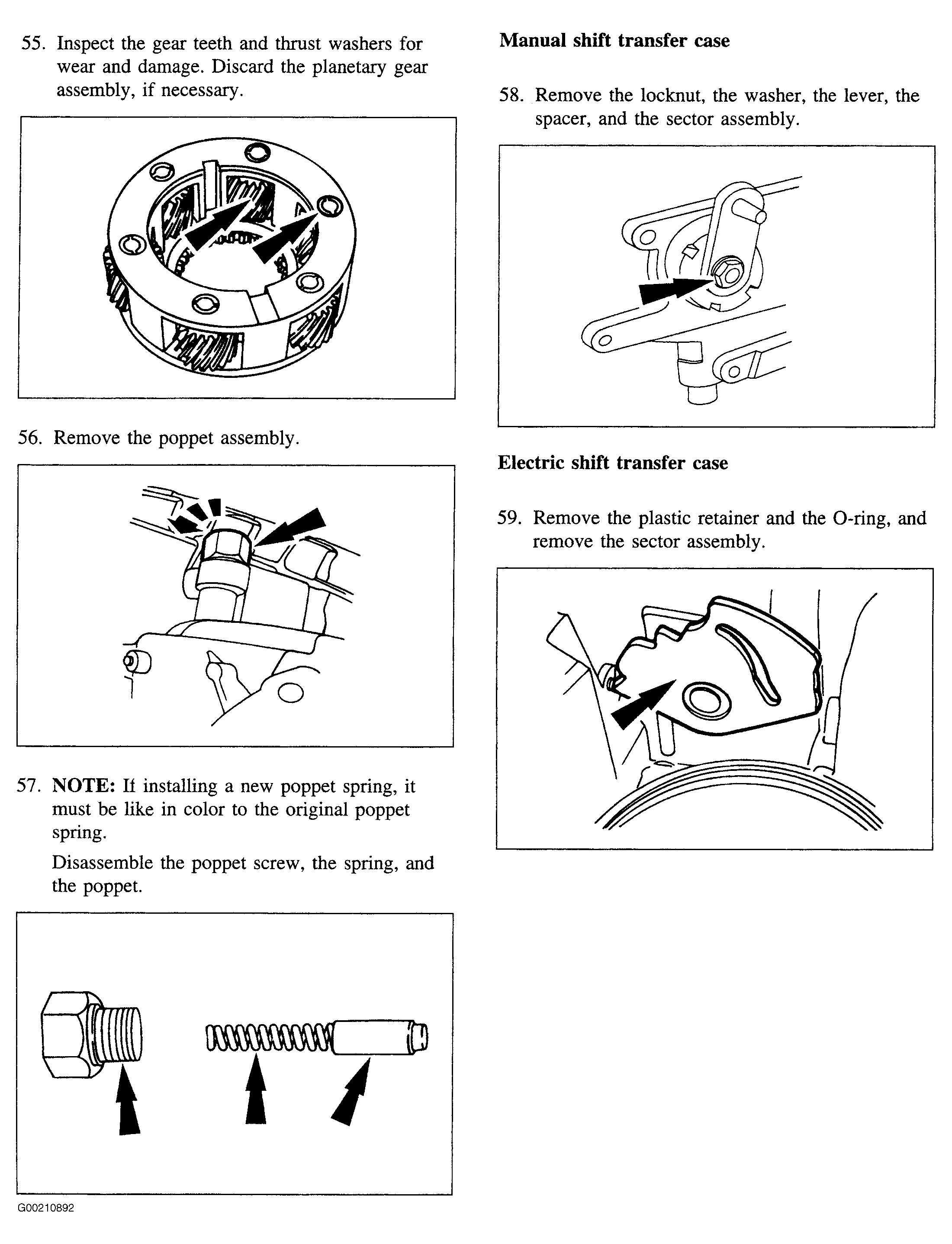

Fig 10: Transfer Case Disassembly (10 Of 11)

G00210892

Courtesy of FORD MOTOR CO.

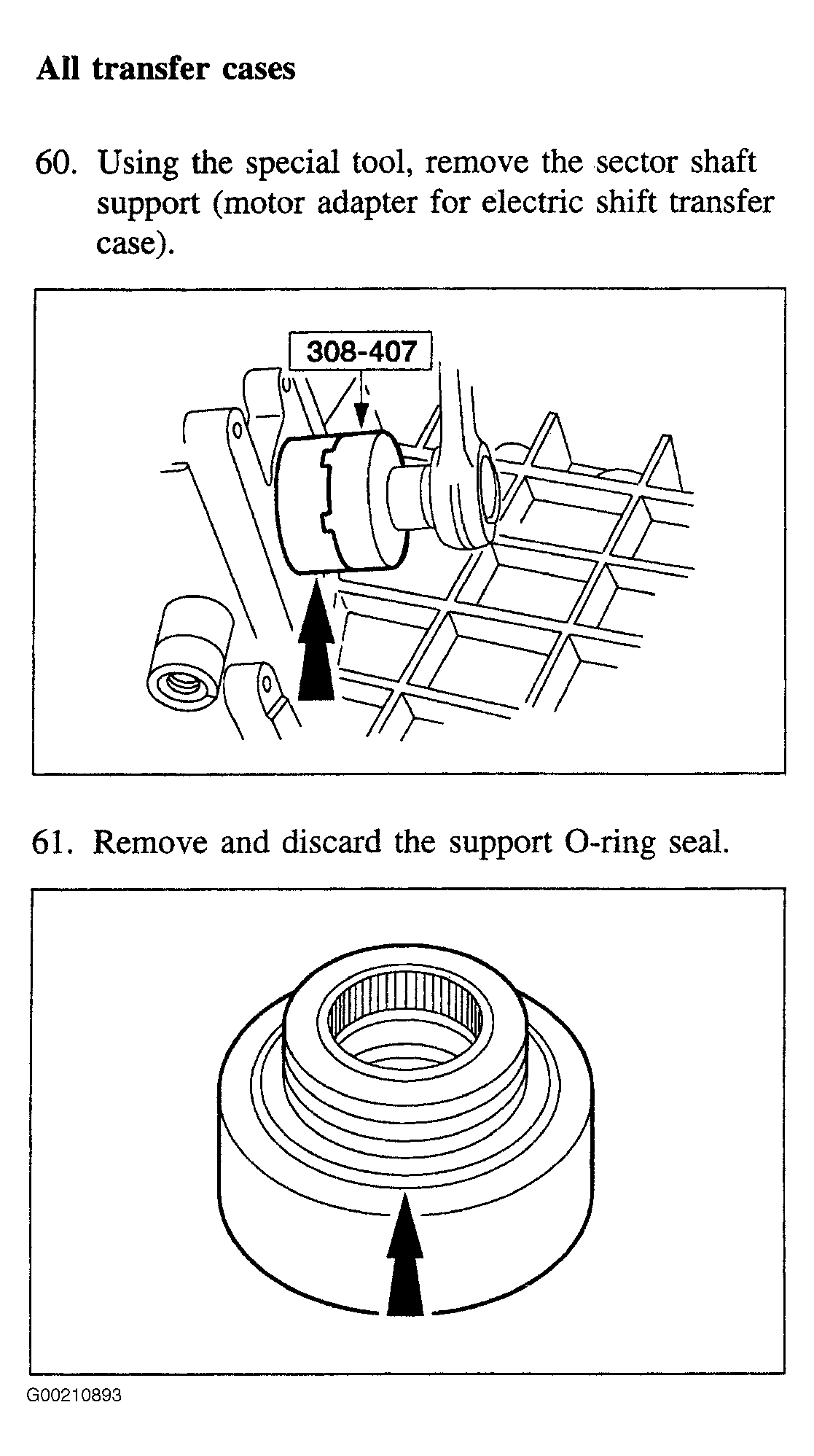

Fig 11: Transfer Case Disassembly (11 Of 11)

G00210893

Courtesy of FORD MOTOR CO.
