Section 208 (Overhaul - Transfer Case): Identification

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For disassembled view of NV271 transfer case, see Fig 1 and Fig 2 . For disassembled view of NV273 transfer case, see Fig 3 and Fig 4 .

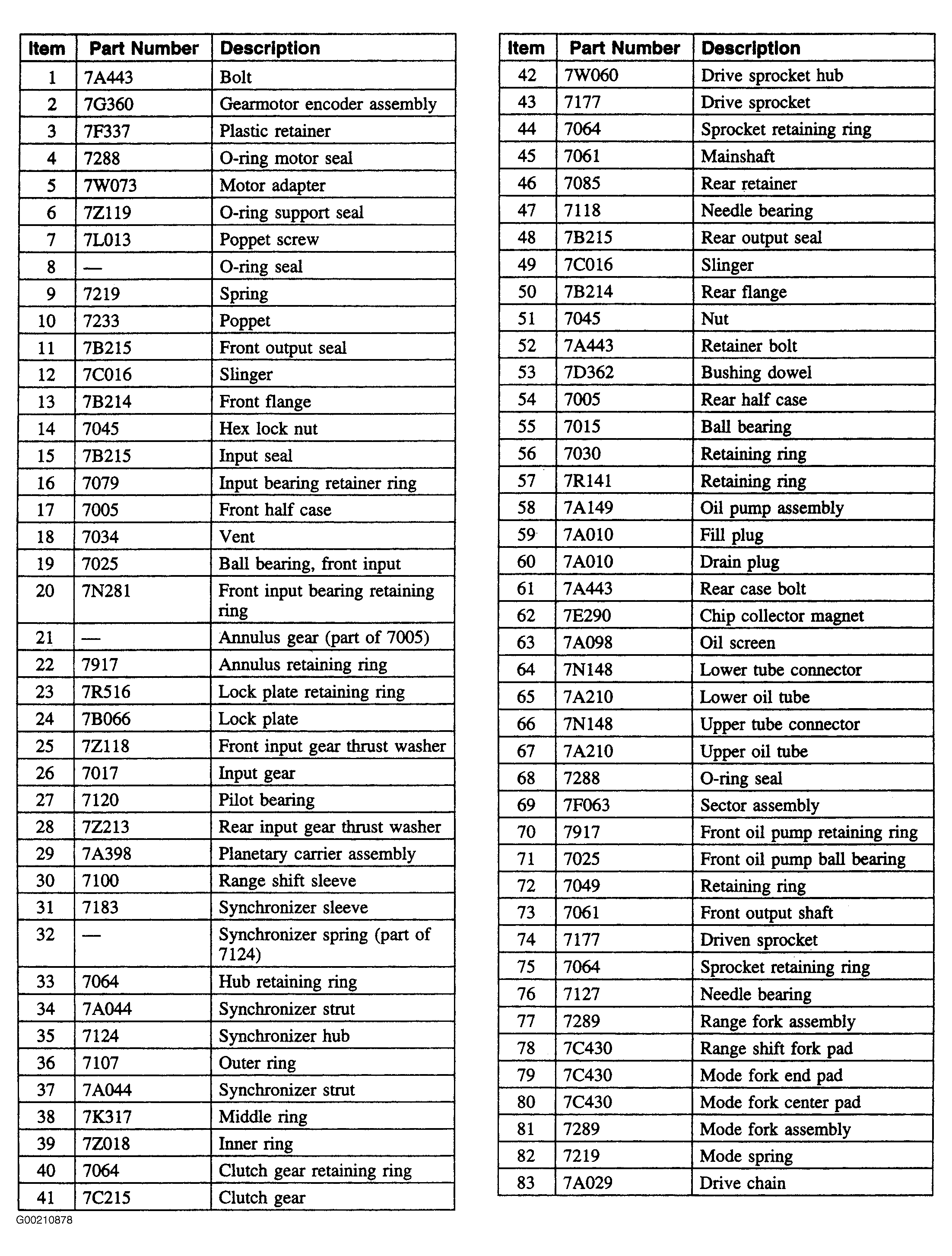

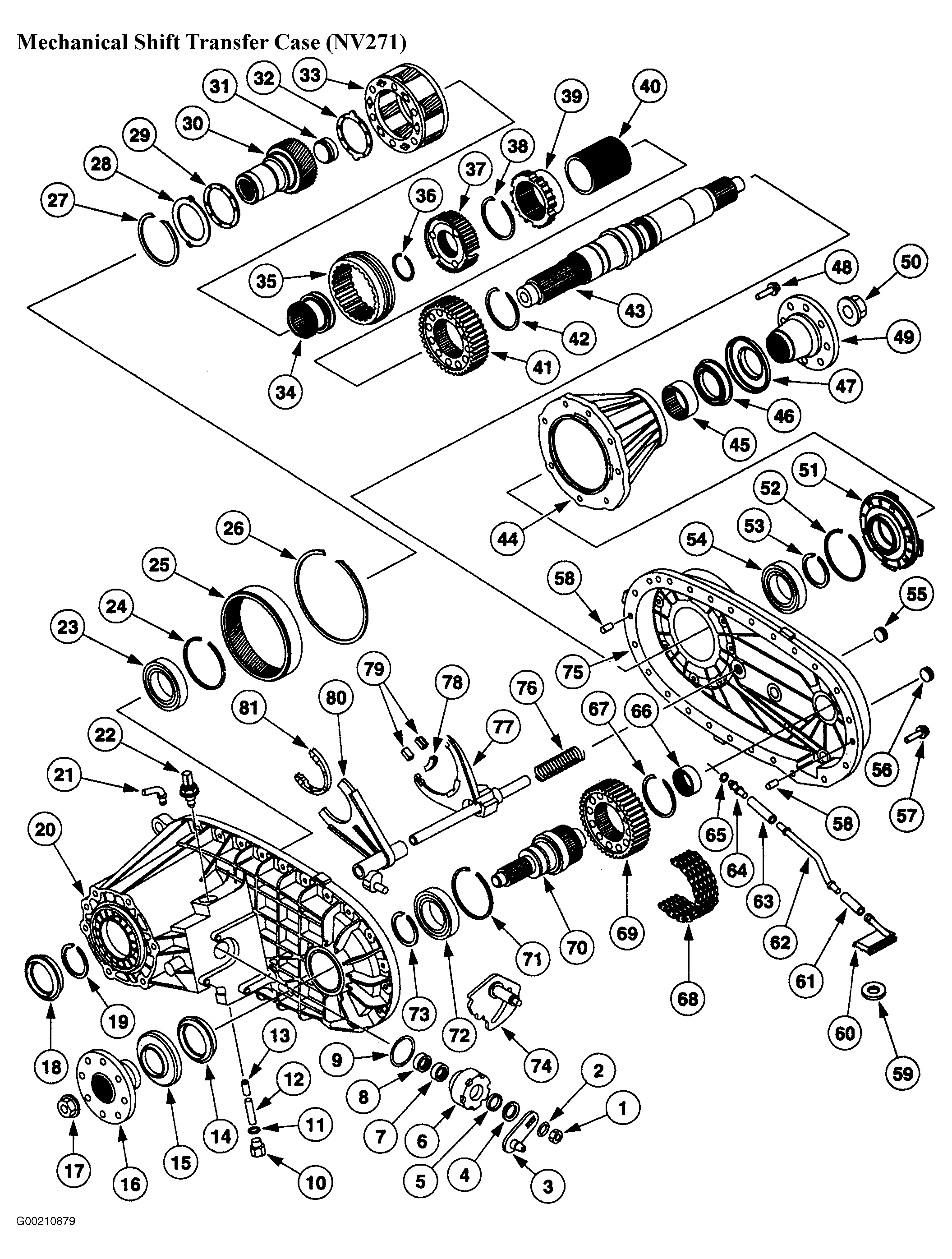

Fig 1: Identifying Transfer Case Components (NV271 - 1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Transfer Case Components (NV271 - 2 Of 2)

Courtesy of FORD MOTOR CO.

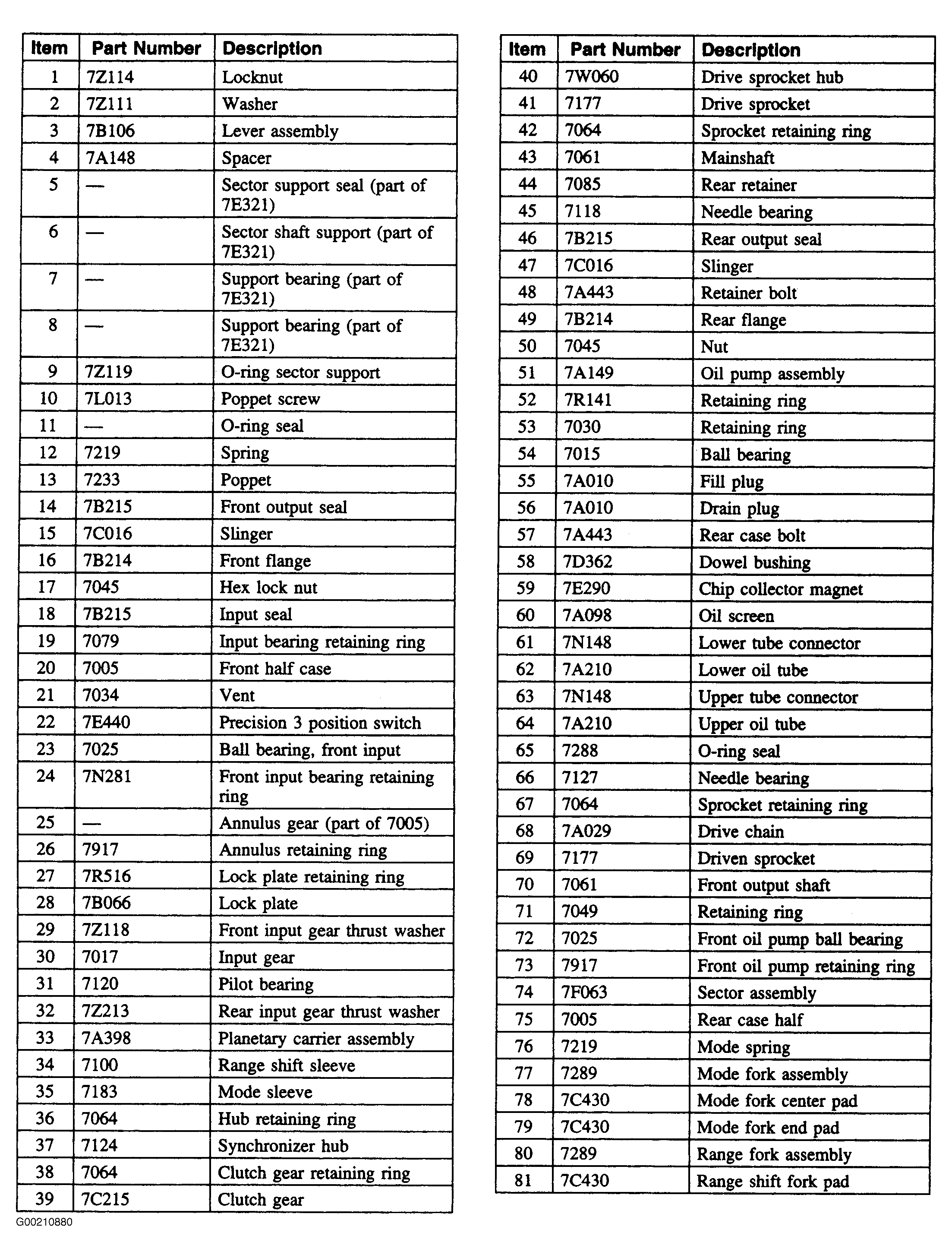

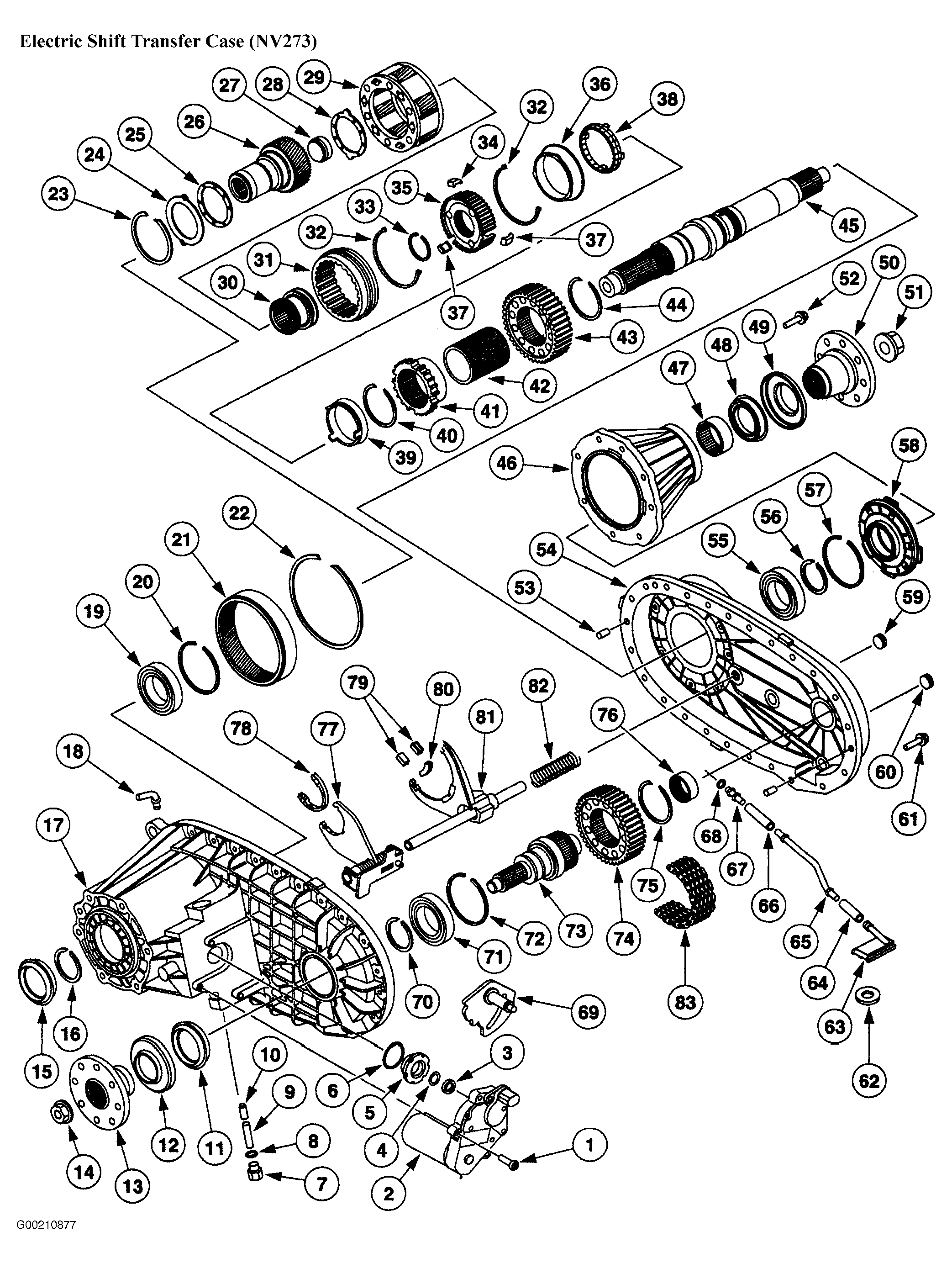

Fig 3: Identifying Transfer Case Components (NV273 - 1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 4: Identifying Transfer Case Components (NV273 - 2 Of 2)

Courtesy of FORD MOTOR CO.
