Diagnostic Aids

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

The park brake pedal position switch input indicates the state of the park brake. The switch closes the circuit to ground when the driver depresses the park brake pedal.

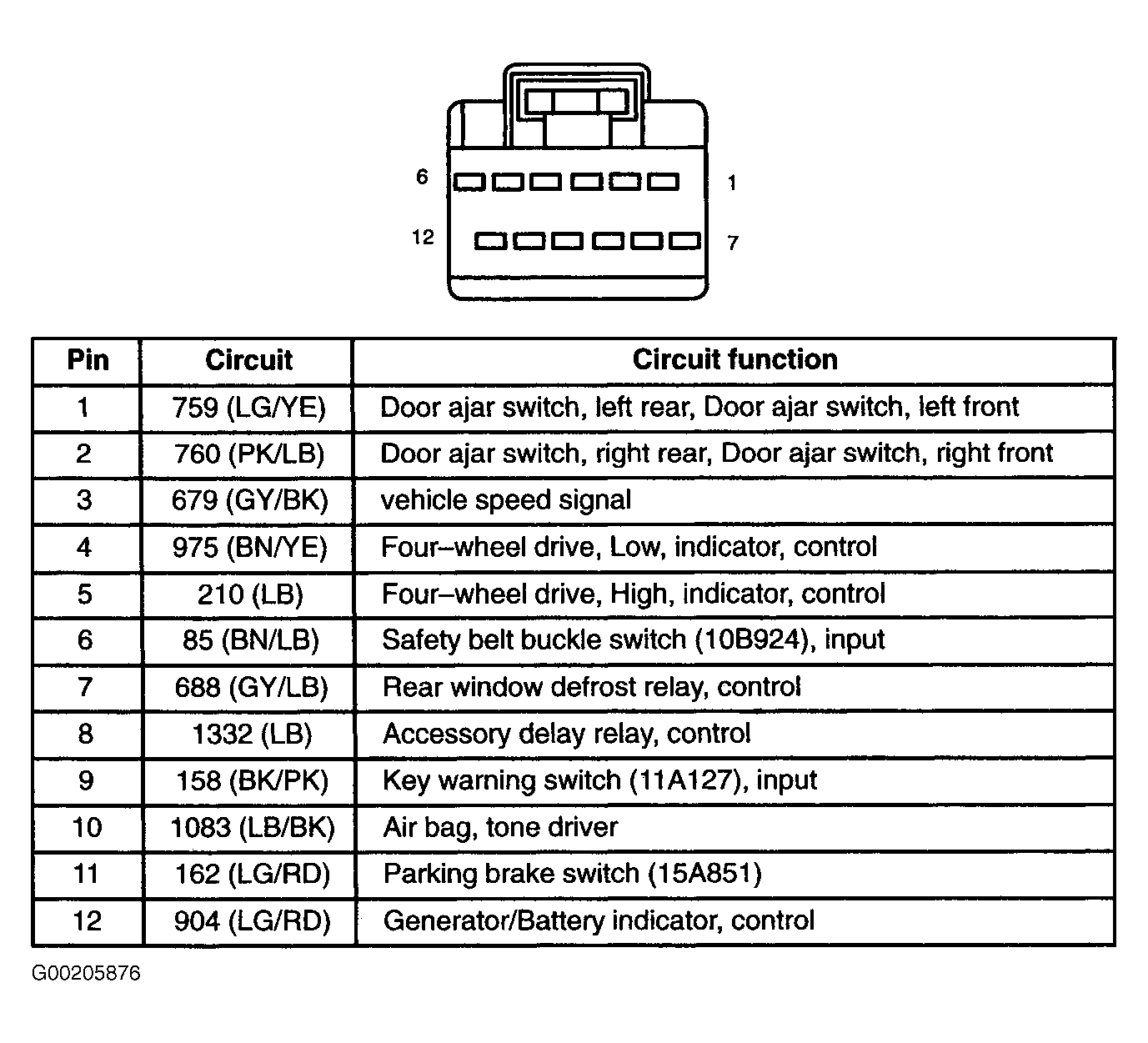

Fig 1: Identifying Instrument Cluster Connector C220B (Black) Terminals
G00205876Courtesy of FORD MOTOR CO.
