Diagnostic Aids
WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Perform this test when directed by QUICK TEST. This test is only intended to diagnose the following components and circuits:
- Manifold Absolute Pressure (MAP) sensor.

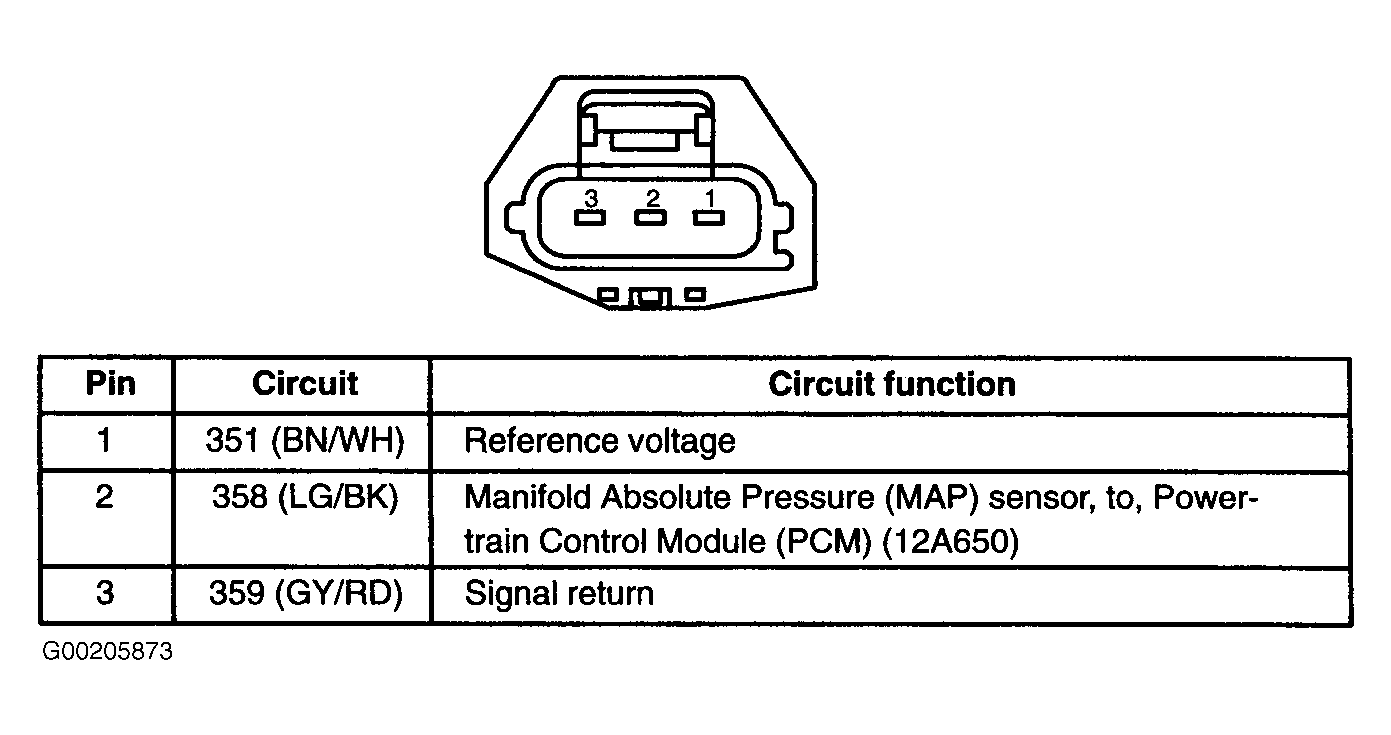

- Wiring harness circuits (VREF, SIG RTN & MAP SIG).
- Powertrain Control Module (PCM).
Manifold Absolute Pressure (MAP) sensor functions are as follows:
- Smoke Control
MAP signal is used to control smoke by limiting fuel quantity during acceleration until a specified boost pressure is obtained. - Dynamic Injection Timing
Optimizes injection timing for boost pressure measured. - Fault Detection & Management
A MAP signal that is detected by PCM to be out of range or at an incorrect value for specific conditions will cause PCM to ignore MAP signal and operate engine from an inferred boost pressure signal.
MAP SENSOR SPECIFICATIONS
| psi (kPa) | (1) Volts | ||
|---|---|---|---|
| 11.5 (80) | 1.1 | ||
| 14.7 (101) | 1.5 | ||
| 20 (138) | 2.2 | ||
| 25 (172) | 2.8 | ||
| 30 (206) | 3.6 | ||
| 35 (242) | 4.3 | ||
|
|||
