Water Pump: Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. See COOLING SYSTEM BLEEDING . Remove the cooling system fan and fan clutch. See COOLING FAN BLADE, CLUTCH & SHROUD .
  2. Disconnect the upper radiator hose from the water pump outlet tube. Remove the thermostat and housing. See THERMOSTAT . Note the routing of the accessory drive belt and remove the accessory drive belt.
    3. NOTE: The water pump pulley is removed for clarity.
  3. Disconnect the heater hose from the water pump. See Fig 1. Remove the 2 bolts and the water outlet tube. See Figure. Disconnect the Engine Coolant Temperature (ECT) sensor connector, if equipped. See Fig 4.
  4. Remove the Camshaft Position (CMP), sensor electrical harness clip retaining bolt. Disconnect the pin-type retainer and position the CMP sensor harness away from the water pump.
  5. Remove the 4 water pump pulley bolts and the water pump pulley. See Fig 2. Remove the 6 bolts and the water pump. See Fig 3. Clean the water pump gasket surfaces.

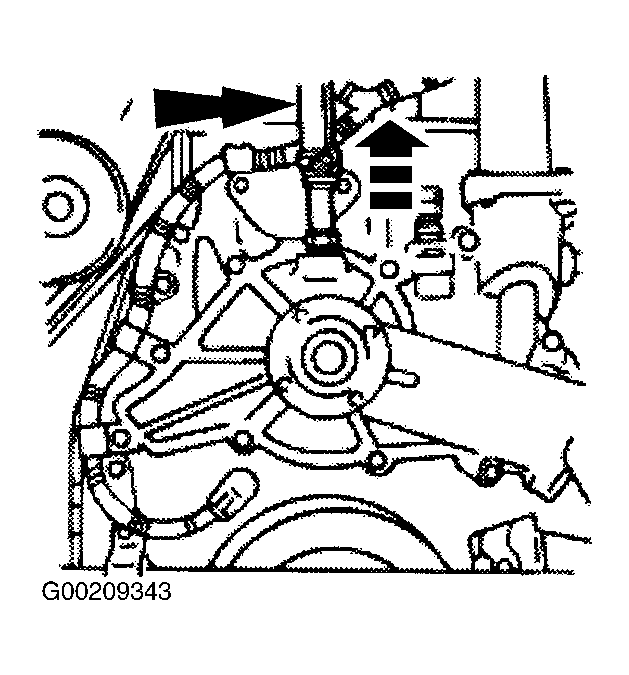

Fig 1: Removing & Installing Heater Supply Hose
G00209343Courtesy of FORD MOTOR CO.

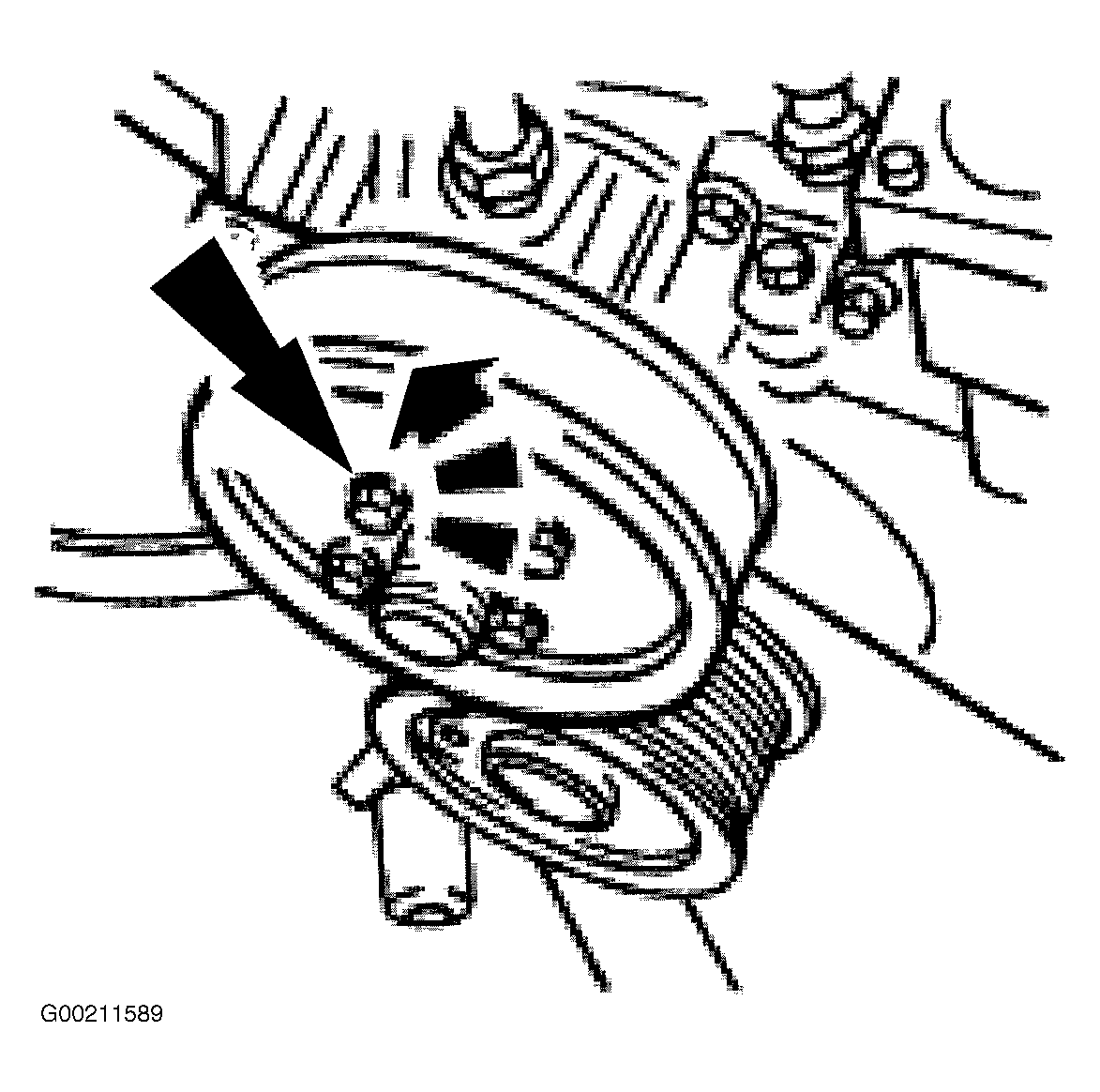

Fig 2: Removing & Installing Water Pump Pulley
G00211589Courtesy of FORD MOTOR CO.

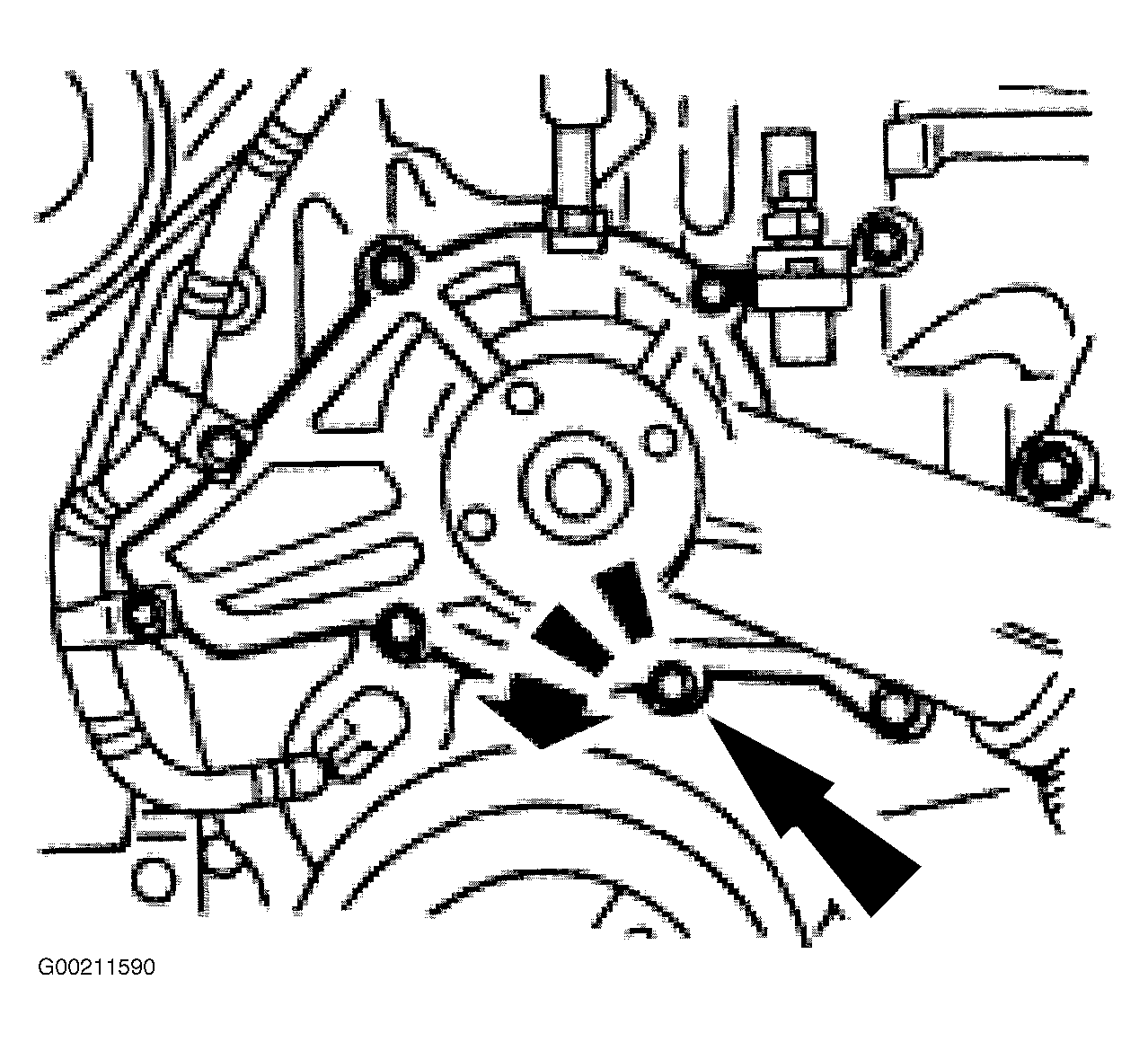

Fig 3: Removing & Installing Water Pump
G00211590Courtesy of FORD MOTOR CO.

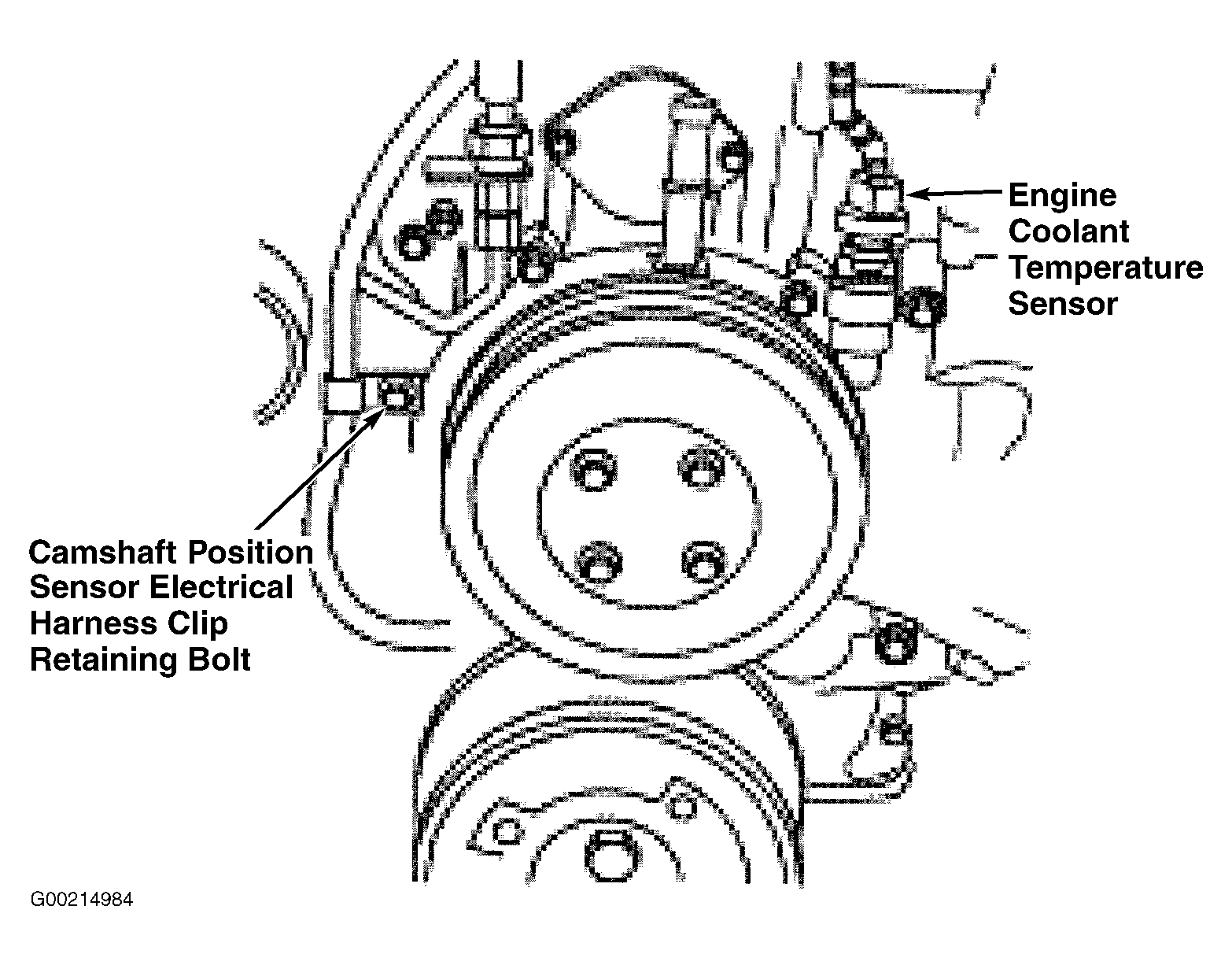

Fig 4: Locating Engine Coolant Temperature Sensor
G00214984Courtesy of FORD MOTOR CO.
