Back Pressure Valve: Removal
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

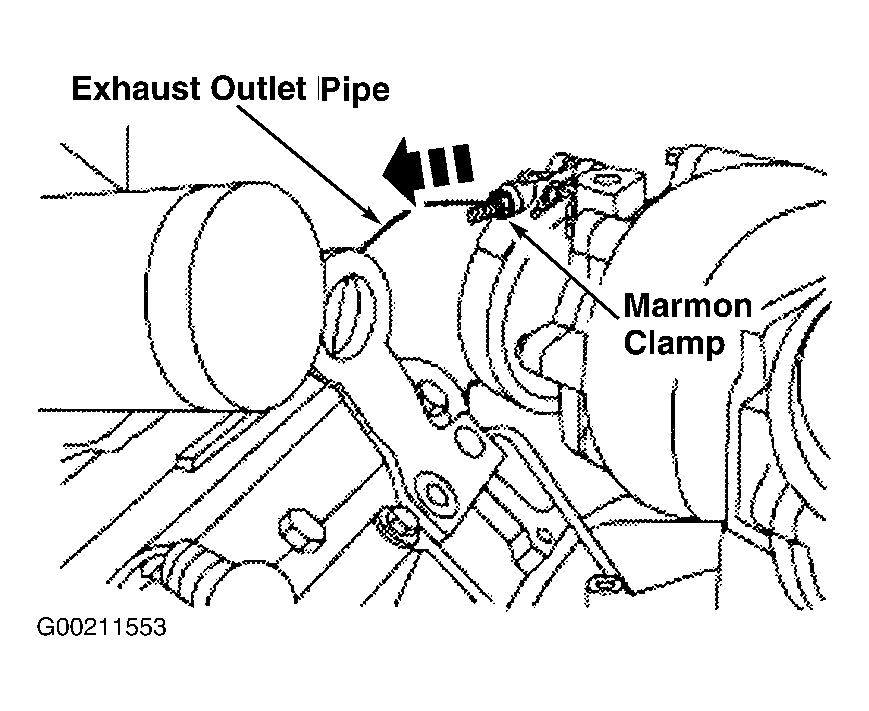

- Open the hood. Remove the air charge cooler inlet and outlet ducts from the compressor manifold. Loosen the exhaust outlet pipe clamp, pull the exhaust pipe away from the exhaust backpressure valve and disconnect the exhaust outlet pipe from the turbocharger. See Figure.

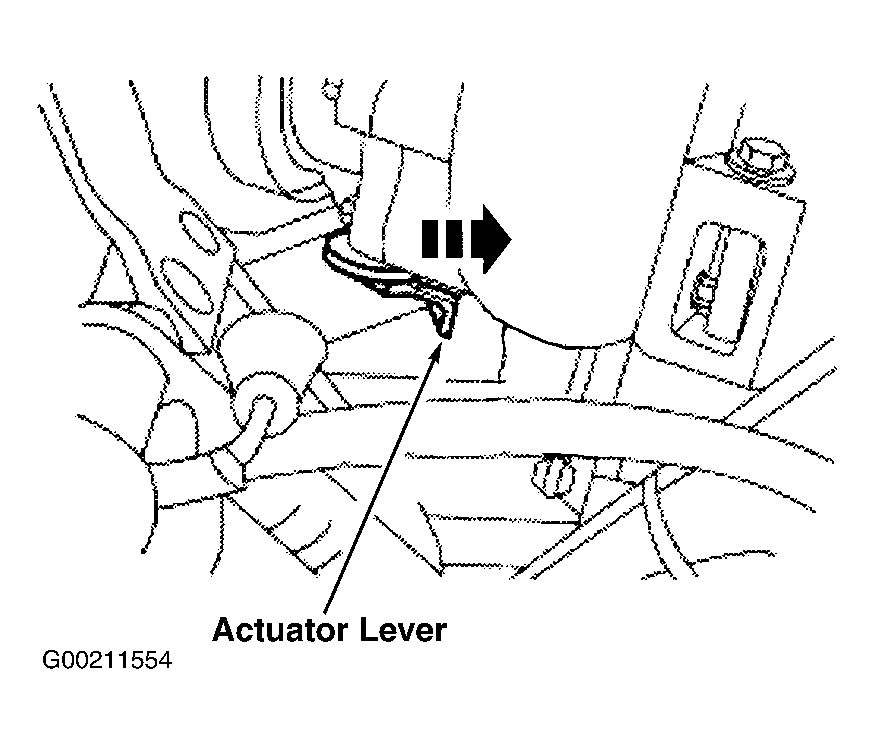

- Slide the retaining clip toward the turbocharger housing. Disconnect the exhaust back pressure valve actuator rod from the exhaust back pressure valve. See Figure. Remove the 6 bolts and the exhaust back pressure valve.
