Back Pressure Valve: Installation
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

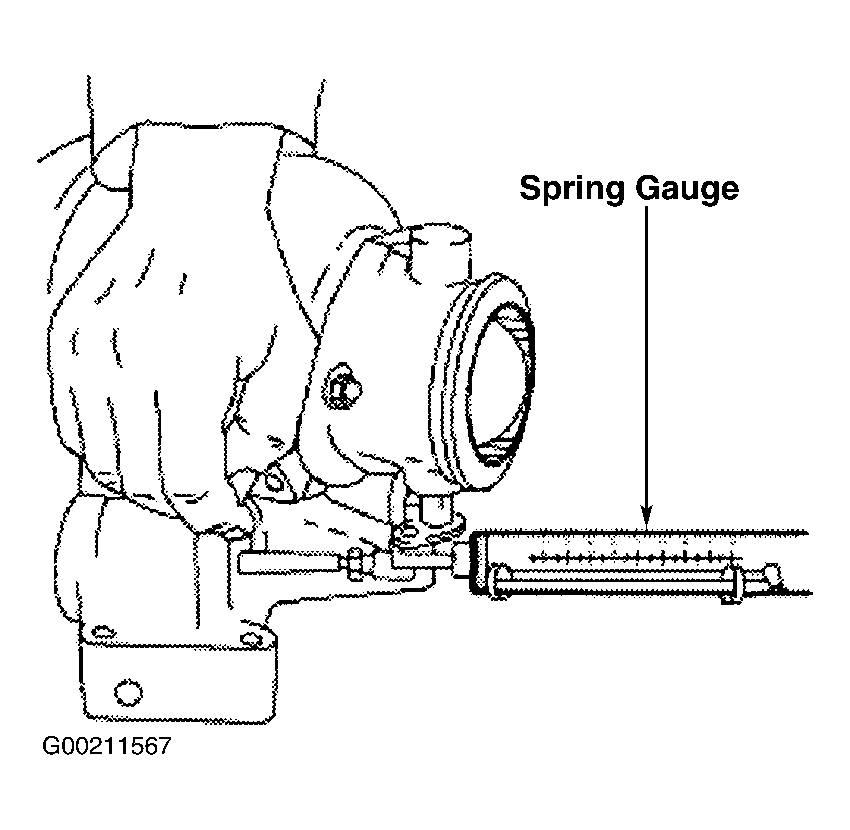

- To install, reverse removal procedure. Using the Spring Gauge (211-034, T74P-3504-Y), adjust the actuator rod length to obtain the specified reading. The butterfly valve should be fully closed when 10 lbs. (4.5 kg) of force is applied with the spring gauge. See Fig 1. Tighten fasteners to specification. See TORQUE SPECIFICATIONS .
